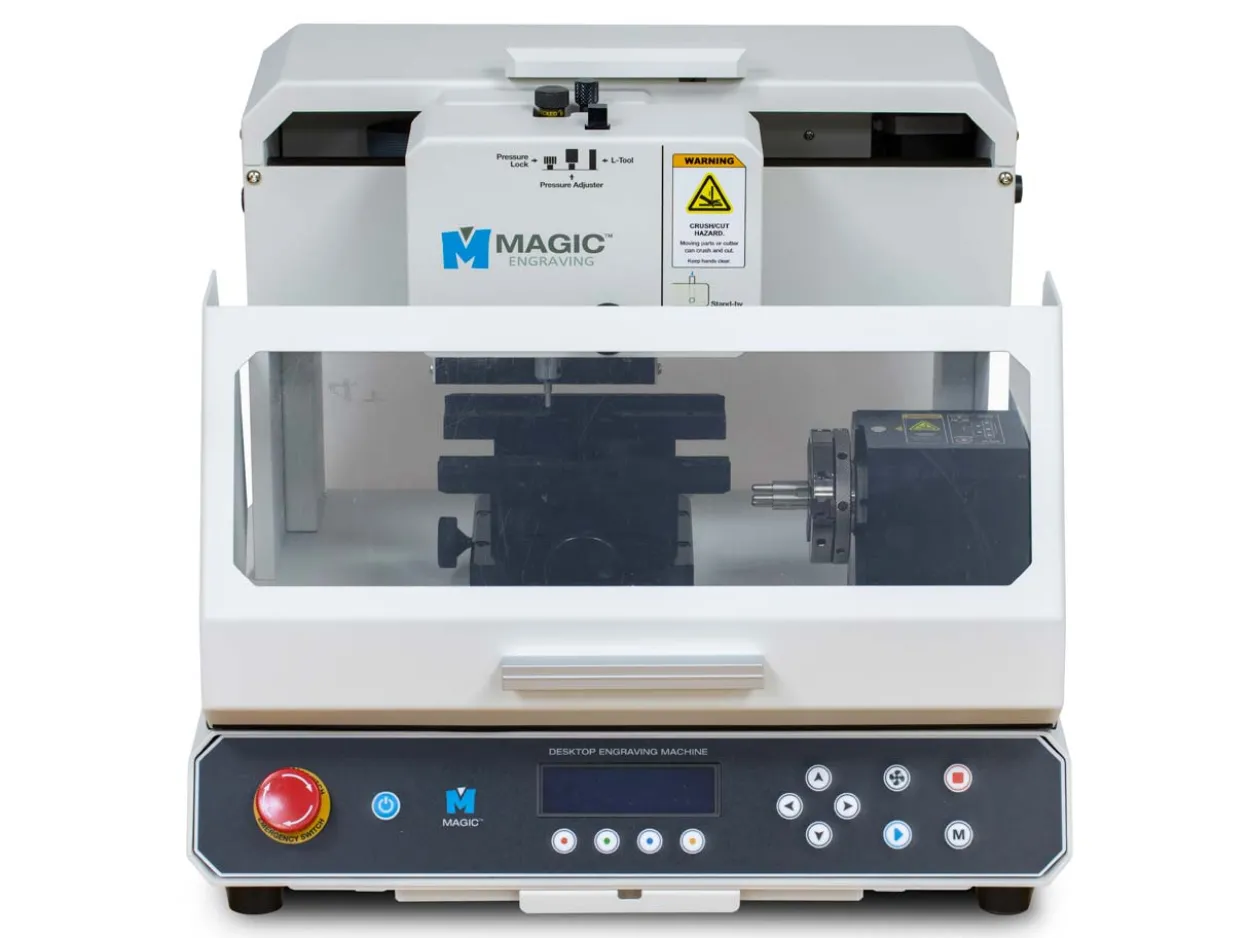

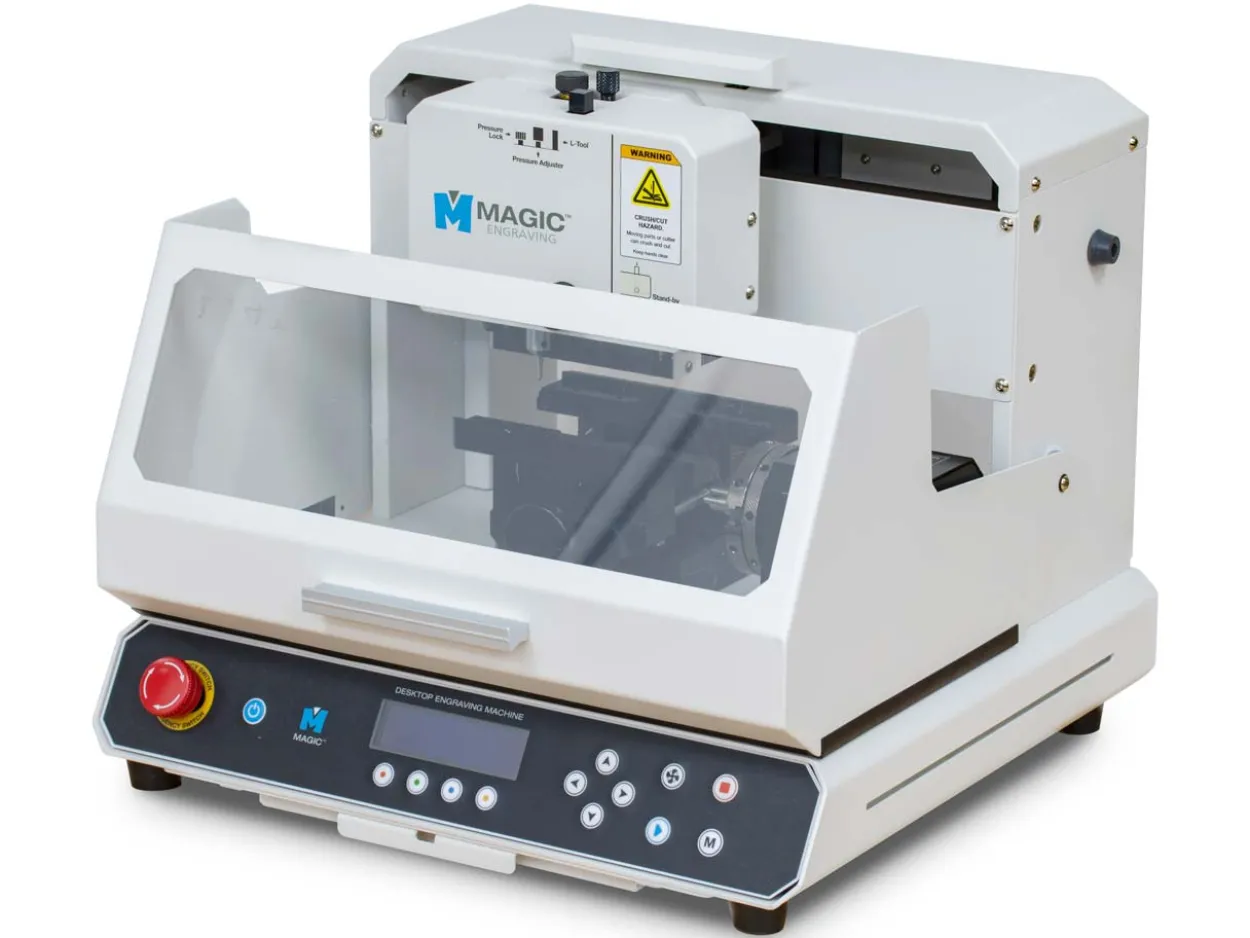

Magic E7 CNC Engraving And Cutting Machine With Lid And Cutting Platform

Description

The all-new Magic E7 CNC Engraving and Cutting Machine supersedes the Magic 70 and represents the third generation of Magic engraving and cutting machines in the range.

Designed for precision engraving and cutting, the Magic E7 is suitable for precious metals including gold, silver, and platinum, as well as copper, brass, titanium, aluminium, stainless steel, plastics, acrylic, wood, glass, and wax.

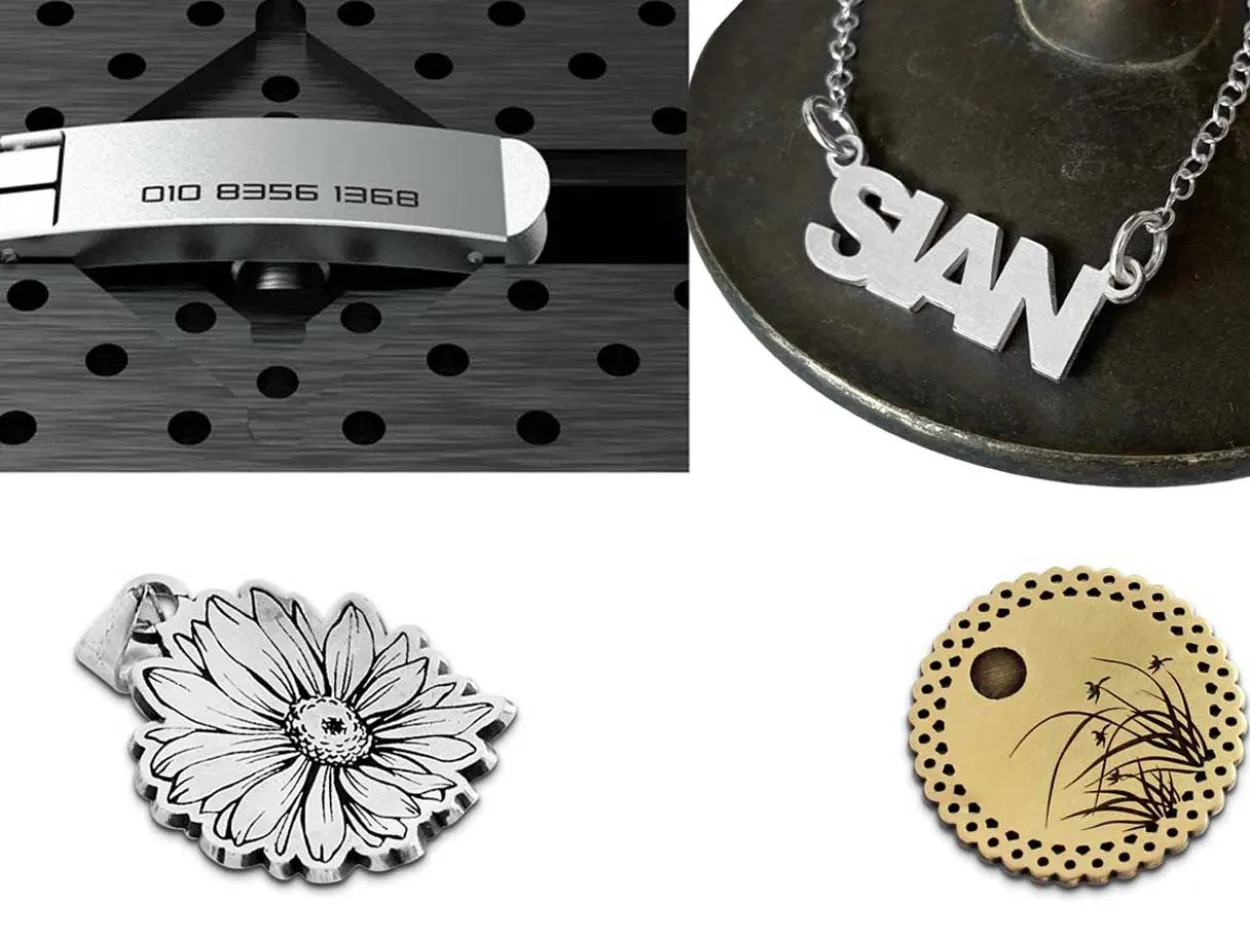

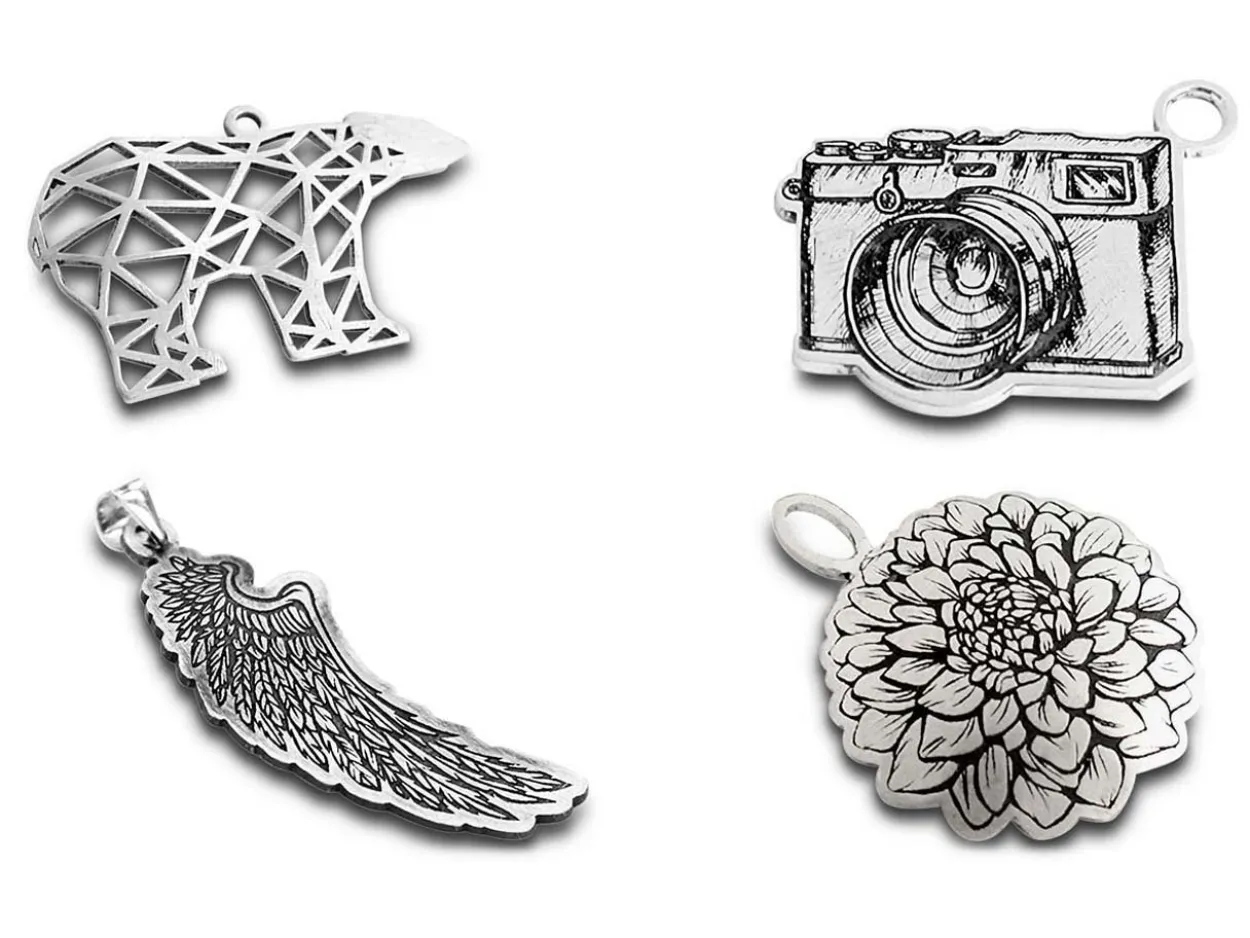

The E7 is capable of engraving and cutting detailed lettering and intricate images on both flat and curved surfaces, including pendants, dog tags, watch backs, rings, bangles, and pens. The rotary clamp securely holds rings, bangles, and pens during engraving, while the built-in L-Tool allows personal messages to be engraved on the inside surfaces of rings and bangles up to 93mm wide.

Supplied with the MagicEngrave PC software, the system is extremely user-friendly and allows users to create characters, patterns, symbols, shapes, logos, and even photographs quickly and easily. The software is fully compatible with Microsoft Office, and designs can be conveniently imported via USB drive.

The Magic E7 can also be used for wax carving, it enables the creation of wax models with greater design flexibility and reduced production times. A built-in holder supports wax cylinders, allowing wax rings to be carved with ease, while a depth-regulating nose ensures consistent engraving depth on uneven surfaces.

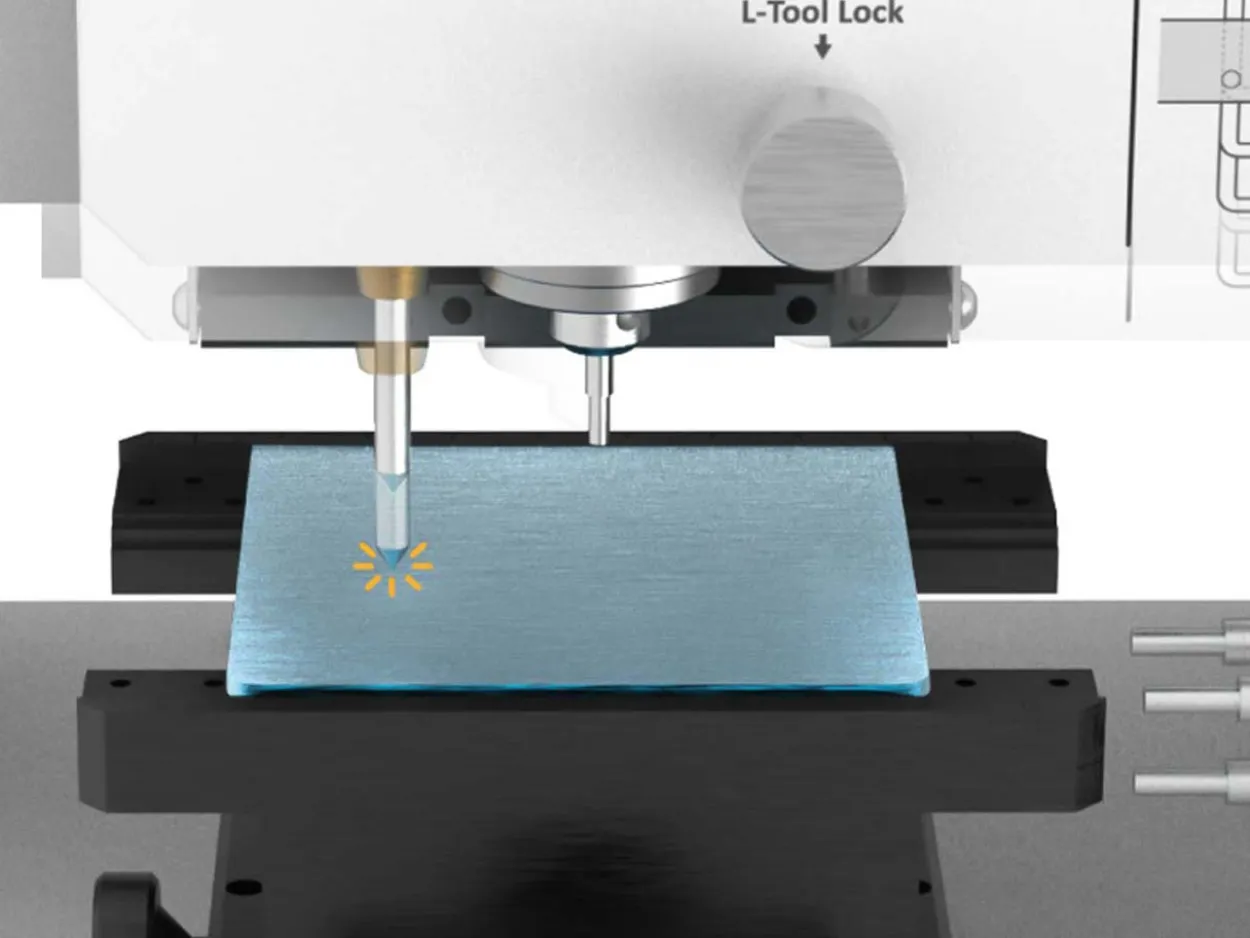

Four sensors automatically measure both the material and the tool prior to engraving or cutting, while an integrated laser pointer indicates the exact engraving area for accurate and error-free results.

This multifunctional engraving and cutting machine offers a maximum working area of 238mm x 178mm x 39mm, with support for materials up to 60mm thick. The maximum rotary outside diameter is 80mm. It provides a cutting depth of up to 1.5mm on harder metals and 2mm on softer metals.

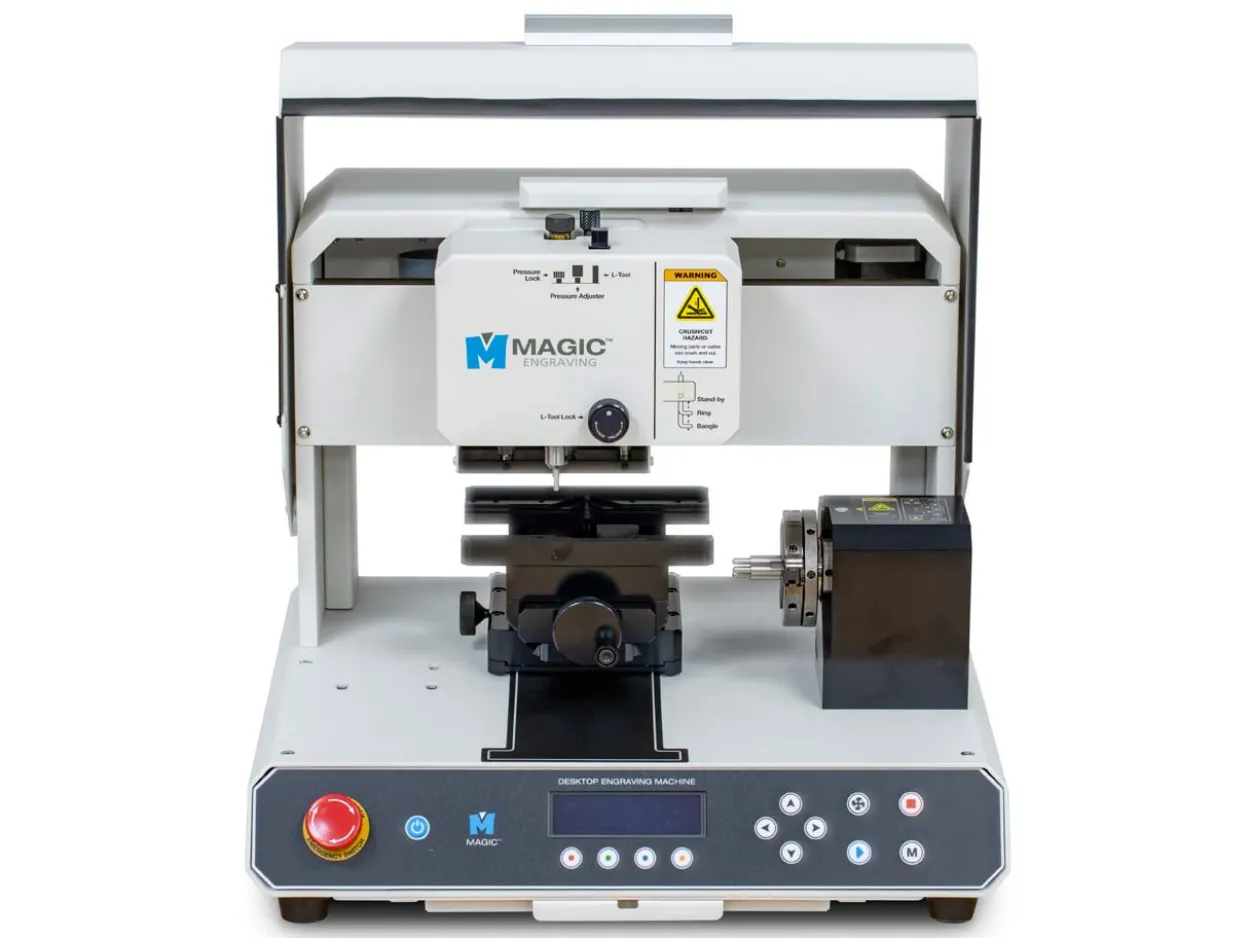

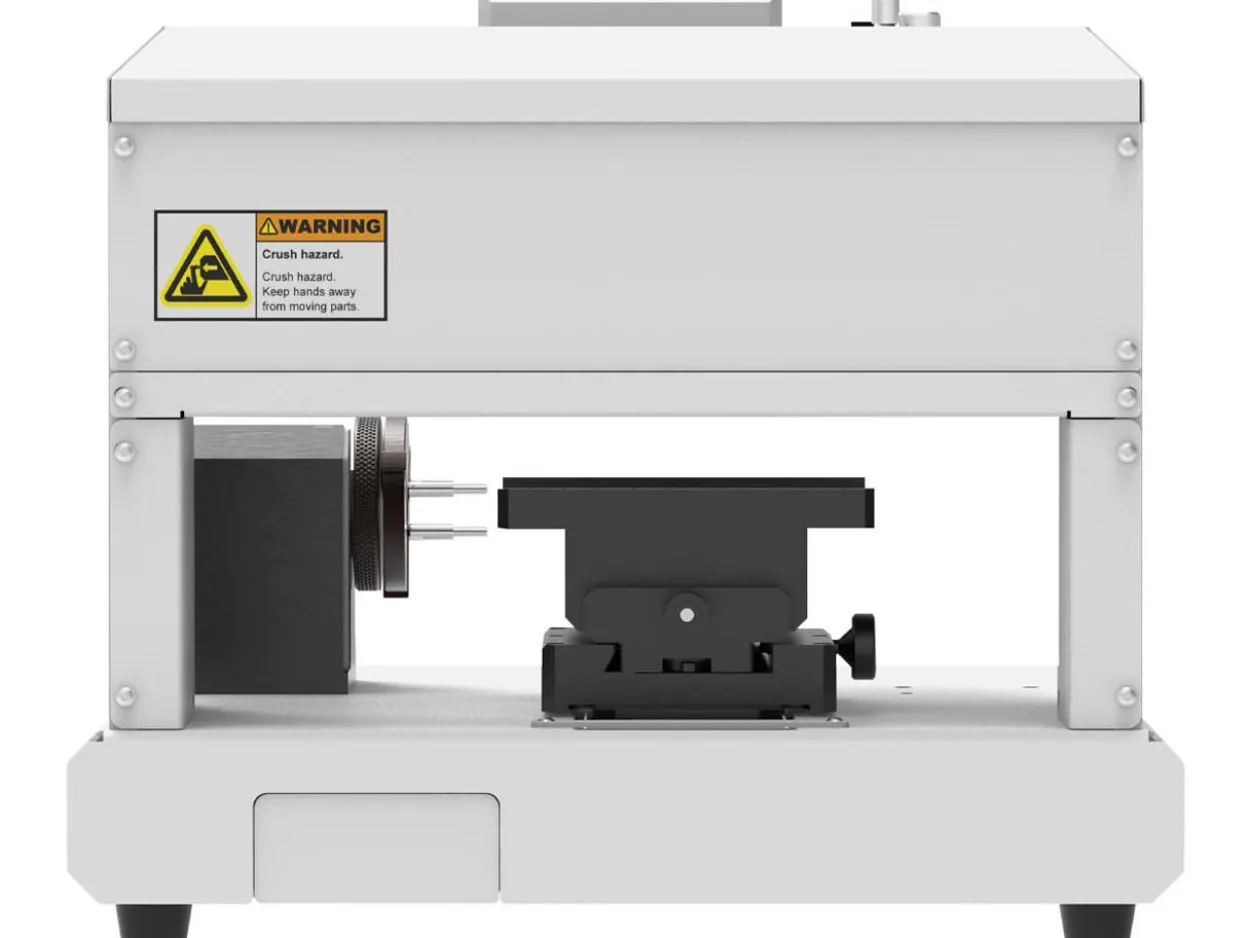

Bright LED lighting and a camera-view function provide excellent visibility of the work area, while the open-back design allows longer pieces to be engraved or cut with ease.

Compact and virtually noiseless in operation, the Magic E7 is ideal for desktop use within workshops, studios, or retail environments.

Additional features include:

• Protective lid

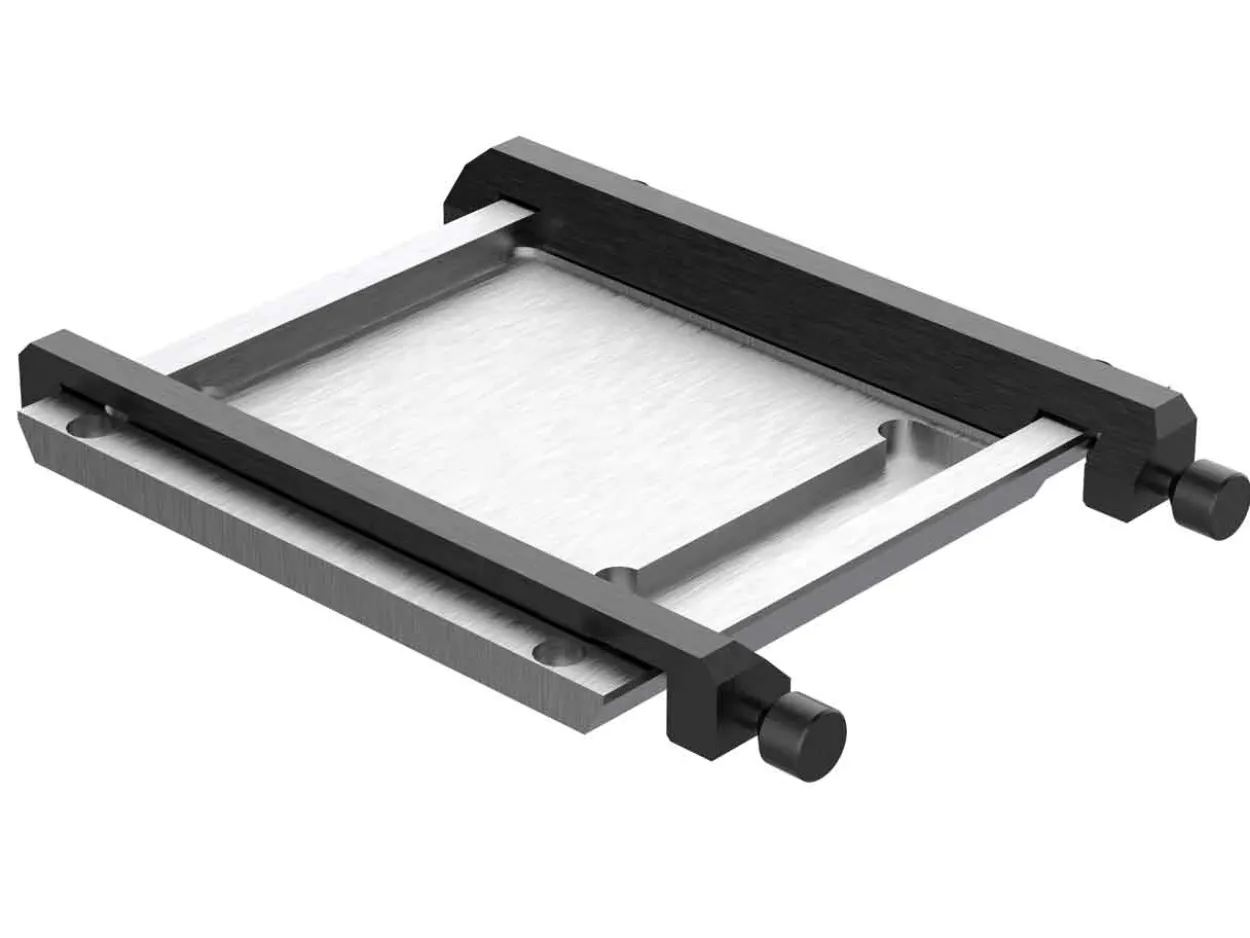

• Cutting platform
• L-Tool for internal ring engraving
• Bluetooth communication support for Android and Windows tablet or PC software
• LCD screen displaying machine progress
• Microsoft Office software compatibility
• Built-in communication port for use with an external tablet instead of a computer, ideal for travelling jewellers
• Compact, quiet design for workshop and in-store use

The Magic E7 measures 402mm x 376mm x 352mm and weighs 26kg, the power supply is 240V.

Supplied with a 12 month warranty.

Please note, the Magic E7 is not compatible with Mac OS.

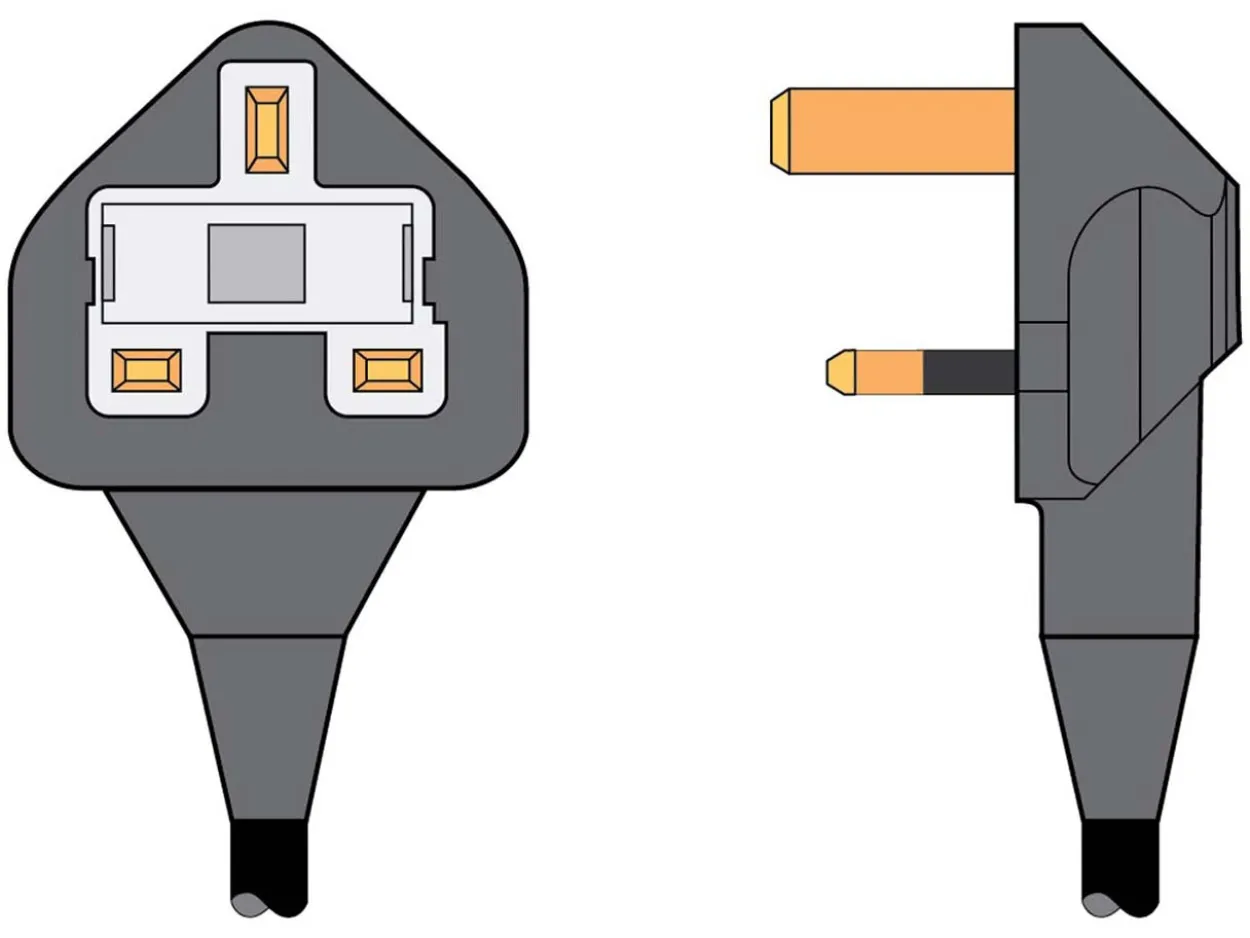

This product has a British 3-pin plug.

The E7 replaces the Magic 70 machine (997 6308)

Demonstrations of this product can be performed in-store, or virtually on request. Technical information and after-sales support are both available. For more information on technical support or to request a demonstration, please call 0345 100 1122.
