Foredom Pendant Motor, Powergraver Handpiece And Kit

Description

The Foredom PowerGraver provides a power assist to stone setting and engraving operations. It is a dedicated unit with specialised components ideal for Bead, Prong, Channel, Hammer and Bezel Setting, Engraving and other Decorative Work.

It features an M.PGX Motor and the H.9D Handpiece equipped with three collets and a wrench. The C.EMGX Dial Speed

Control is used to vary and set speed from off to 2,800 RPM and the C.FCGX On/Off Foot Switch allows you to turn the motor on and off without using the manual switch. Also included are four assorted GRS gravers. Although this PowerGraver hand piece works with all gravers, pre-cut GRS Quick Change gravers are ready to go without needing to be shaped to fit the hand piece.

The M.PGX Motor is designed for high torque/low speed applications with permanently lubricated ball bearings for quiet, trouble-free performance.

The smooth running, permanent magnet motor comes equipped with a standard length key-tip shaft for use with all interchangeable hand pieces, an extra flexible neoprene sheath, and a 6ft long power cord. This is a 230 volt motor-speed control combination.

The H.9D Handpieceworks and feels like a hand engraving tool with the added advantages of greater control and the ability to adjust the impact force with an adjusting ring. It features a palm rest that provides this comfort and feel of a hand engraving tool.

This collet type hand piece has a special quick disconnect that fits only the M.PGX motor sheath.

It comes with 2.35mm (3/32″), 3mm and 3.2mm (1/8″) collets.

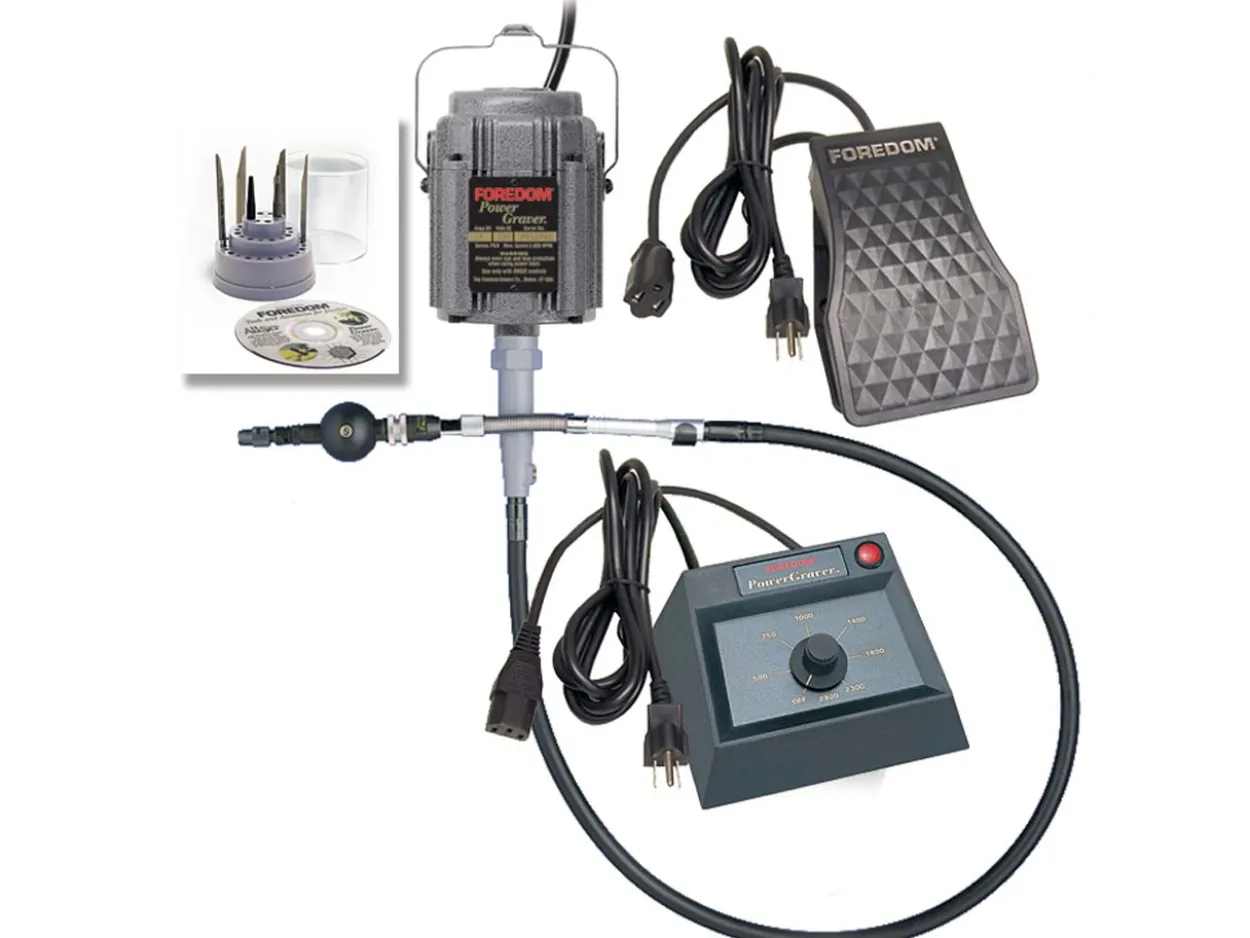

This Kit Includes:

• M.PGX Permanent Magnet Motor
• H.9D Handpiece with 2.35mm, 3 mm and 3.2mm collets, plus a wrench
• C.EMGX Dial Speed Control
• C.FCGX On/Off Foot Switch
• 1 x GRS QC HSS Knife Graver – 022-476- #2 ()
• 1 x GRS QC HSS Round Graver – 022-452- #52 ()
• 1 x GRS QC HSS Onglette Graver – 022-4403- #3 ()
• 1 x GRS QC HSS Flat Graver – 022-440- #40 ()
• 1 x Carbide Stylus
• 1 x Anvil Point
• 1 x Burr Stand
• Flexible Shaft Grease
• Handpiece Oil
• UK Plug

Foredom part number: K.2293-21.

This product comes with a 2 year guarantee, exclusive to Cooksongold.
