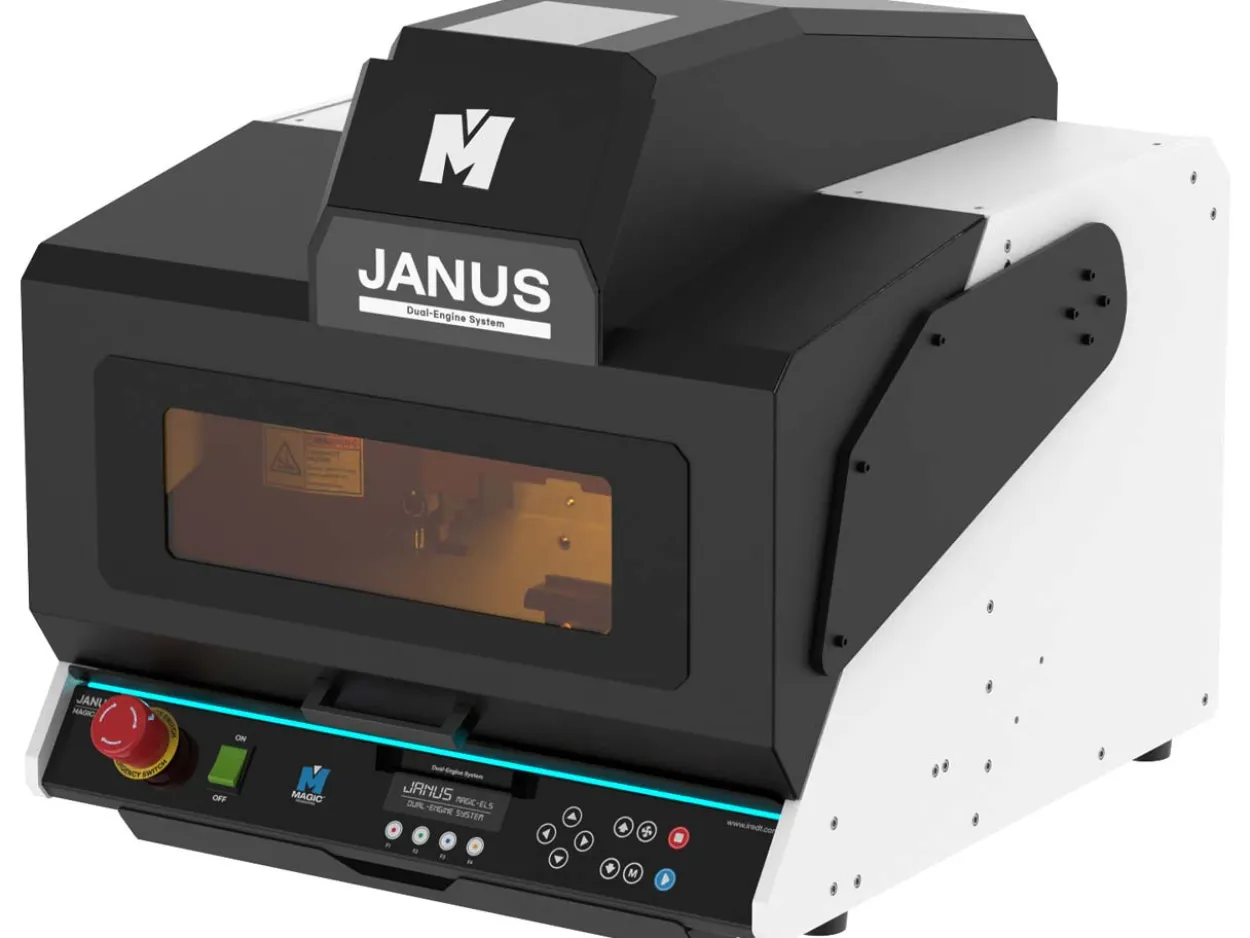

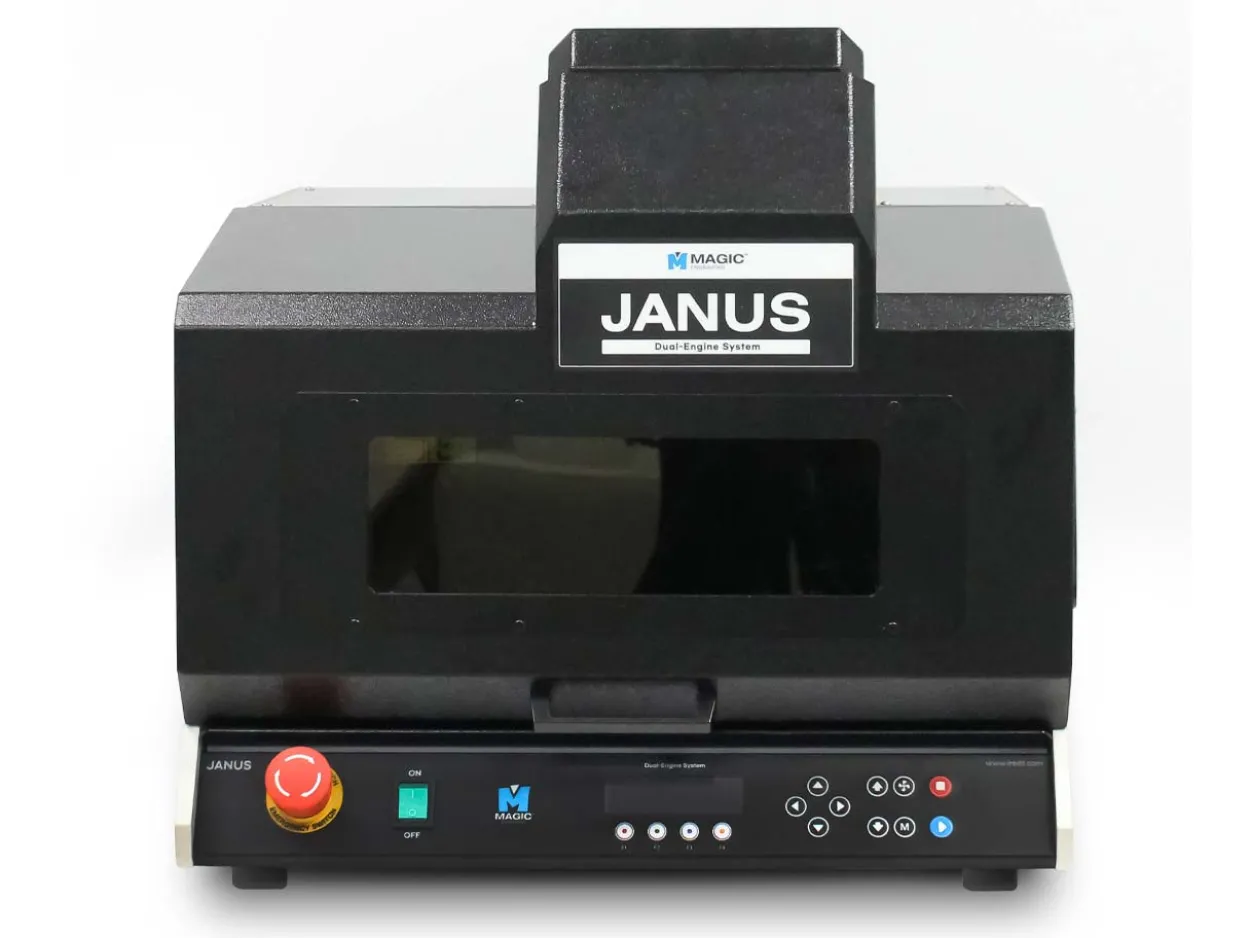

Magic JANUS Dual Engine CNC Milling And Laser Marking Hybrid Machine, 60w

Description

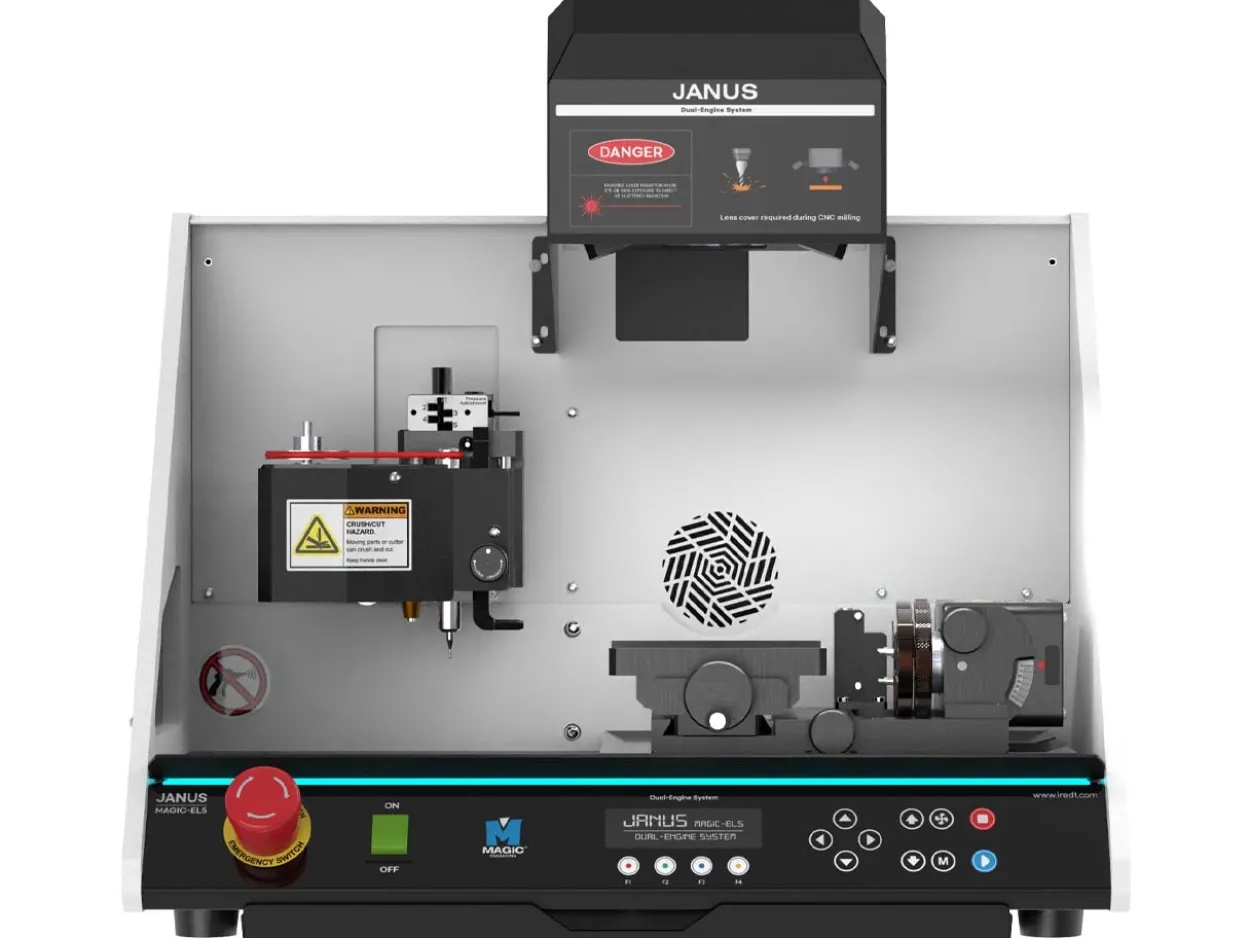

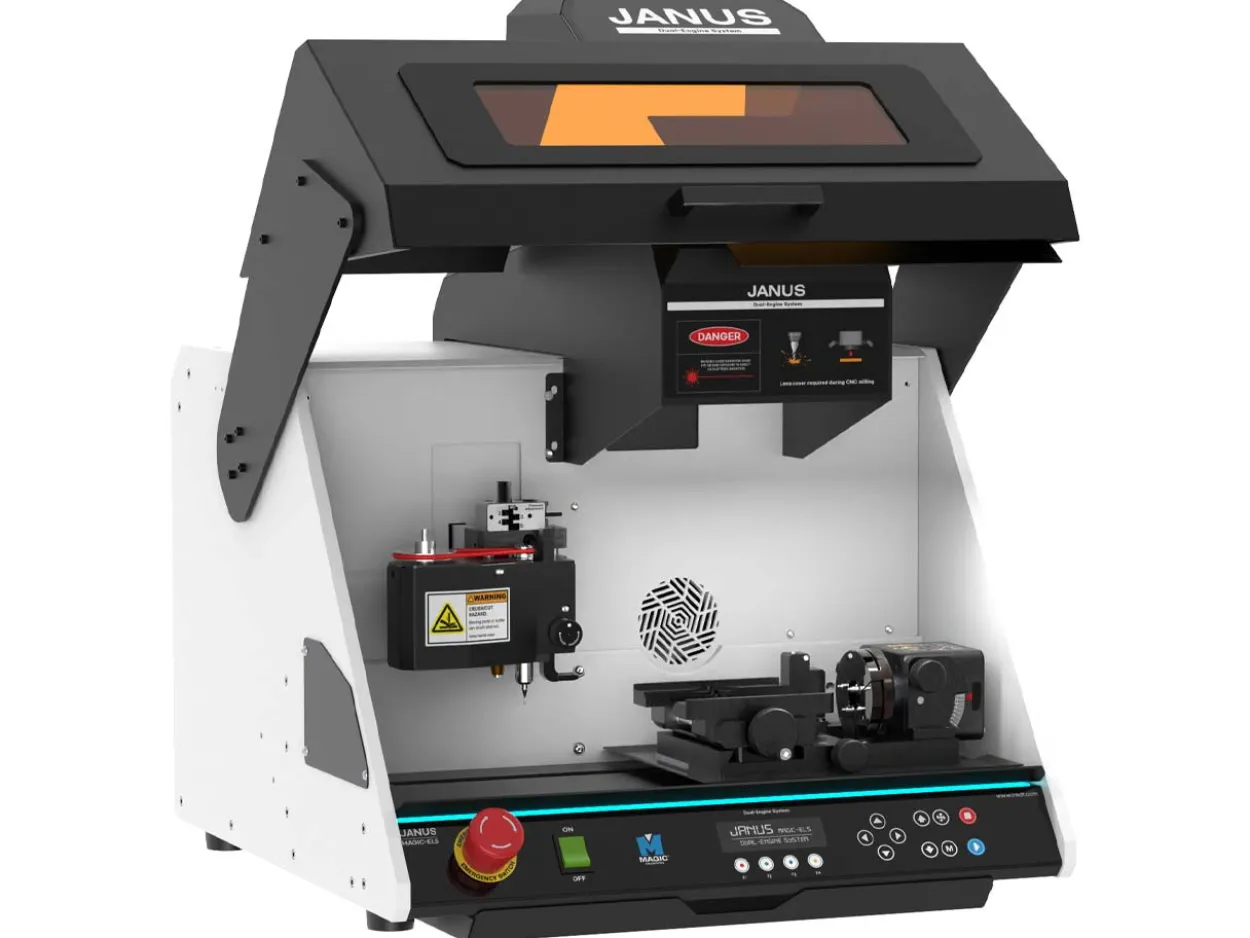

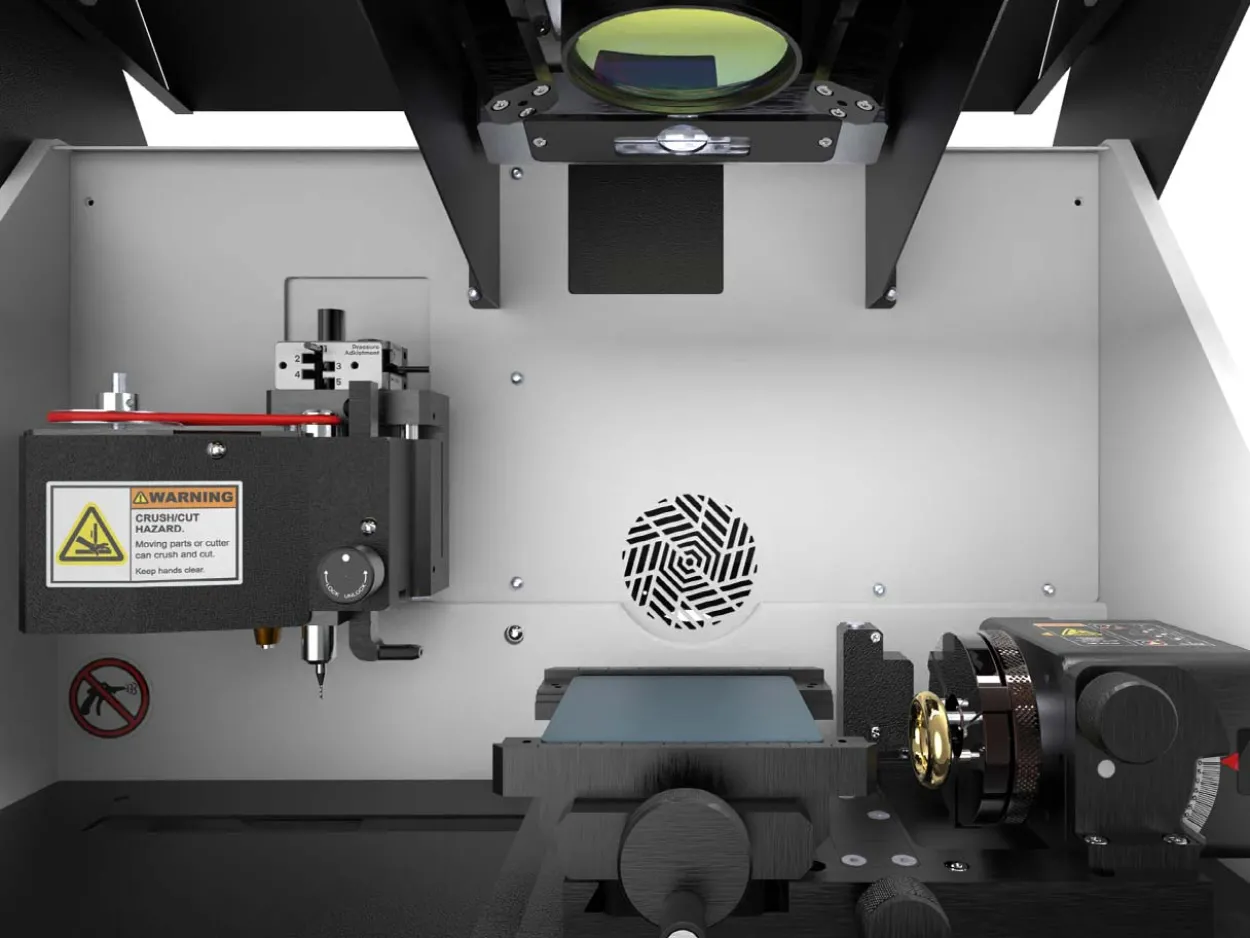

The JANUS system is a hybrid solution that combines CNC engraving technology with precision laser marking in a single machine. By integrating the industry-defining MAGIC-E7 CNC engraving system and MAGIC-L3 laser marking technology, multiple processes can be completed without moving the workpiece between separate devices. This helps improve accuracy, efficiency and workflow continuity while reducing setup time and alignment errors.

Designed to support engraving, cutting and marking on flat, curved and cylindrical surfaces, the system is suitable for jewellery engraving, personalised metal items and precision manufacturing. The dual-technology configuration allows both deep mechanical engraving and fine laser marking to be carried out within one compact unit, offering flexibility for bespoke work and small batch production.

The machine supports CNC scribing, endmill machining, laser marking and laser cutting, providing a broad range of applications across precious and industrial metals. Ring engraving is supported on both outer and inner surfaces, with inner diameter engraving achieved through manual angle adjustment. Pen engraving is also supported, along with compatibility for pendant clamps, anti-curling clamps, tailstock accessories and CNC cutting clamps.

A built-in camera enables automatic positioning for improved accuracy, while a probe-based system automatically detects material height and adjusts laser focus accordingly. Operation is controlled through MagicEngrave software, providing a single interface for managing both CNC and laser processes, designs and toolpaths.

By combining two technologies into one system, JANUS helps reduce workspace requirements while supporting efficient production and consistent engraving results. External I/O ports are not supported.

You must download the program onto a USB drive and then plug the USB into the JANUS machine; the program requires a PC running Windows 10 or later, with an Intel Pentium processor or higher and at least 4 GB of RAM.

Key Features

• Hybrid system combining MAGIC-E7 CNC engraving and MAGIC-L3 laser marking technologies
• Performs engraving, cutting, marking and scribing in one setup
• Supports CNC scribing and endmill machining

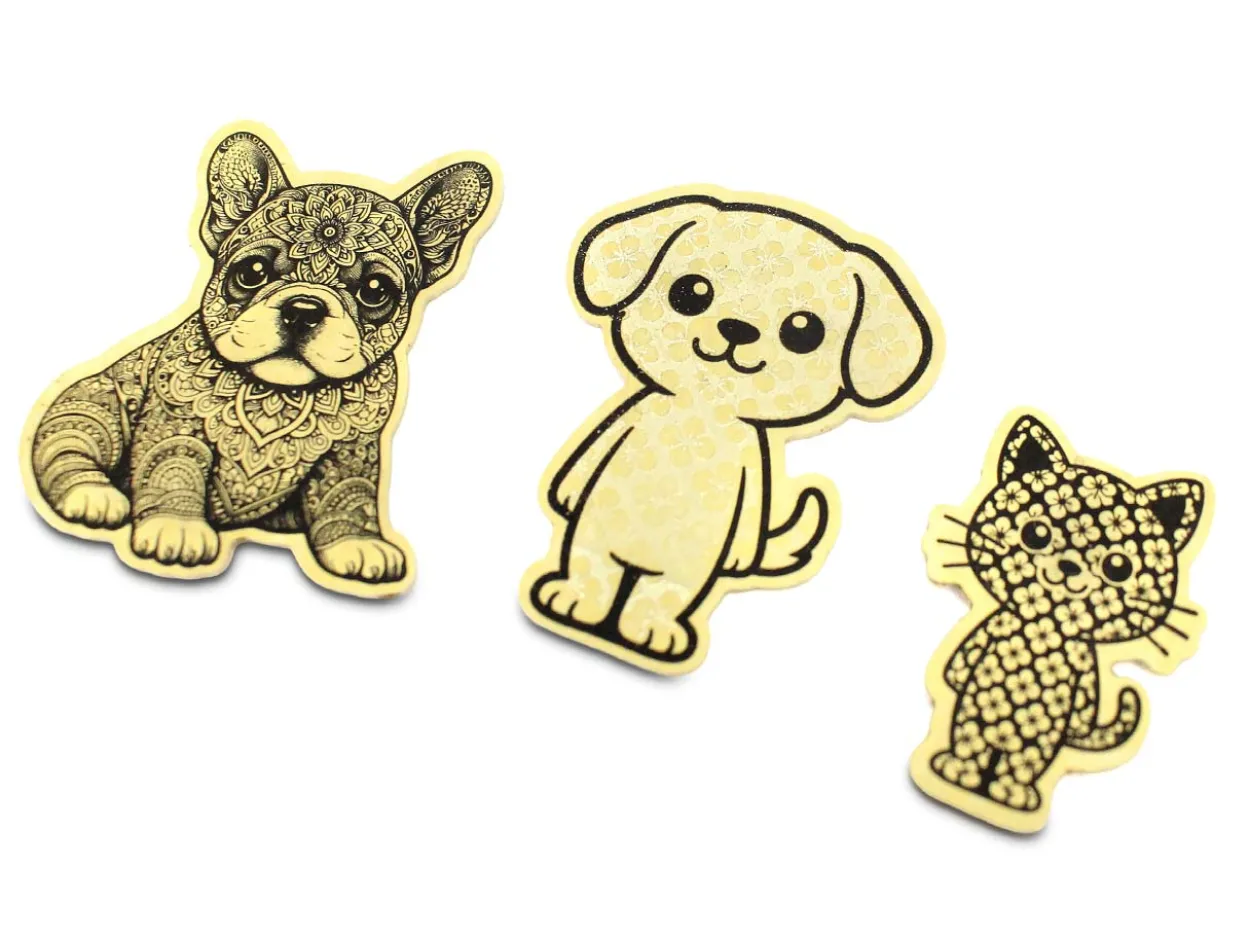

• Supports laser marking and laser cutting
• Works on flat, curved and cylindrical surfaces

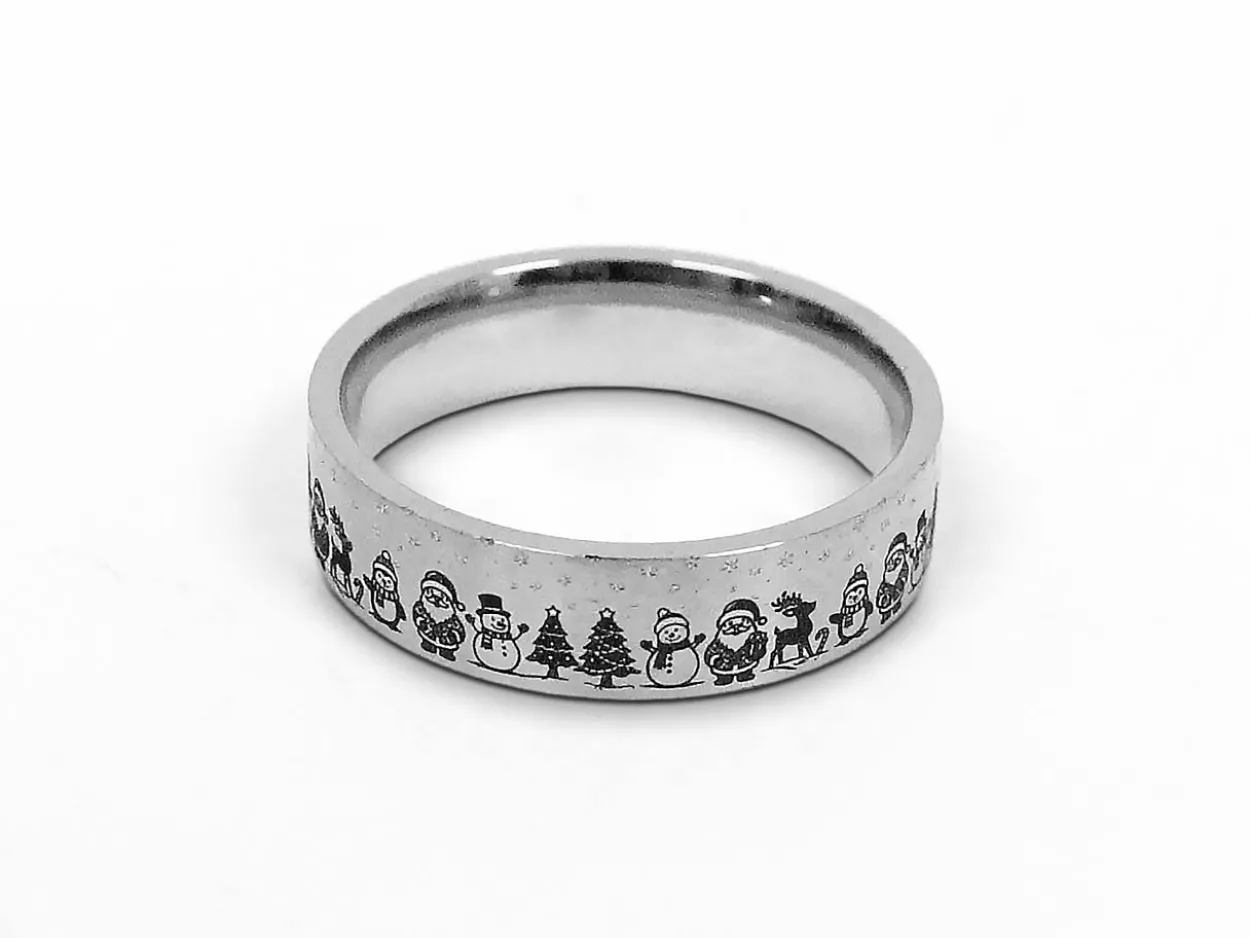

• Ring outer and inner engraving capability
• Pen engraving supported
• Compatible with pendant clamp, anti-curling clamp, tailstock and CNC cutting clamp

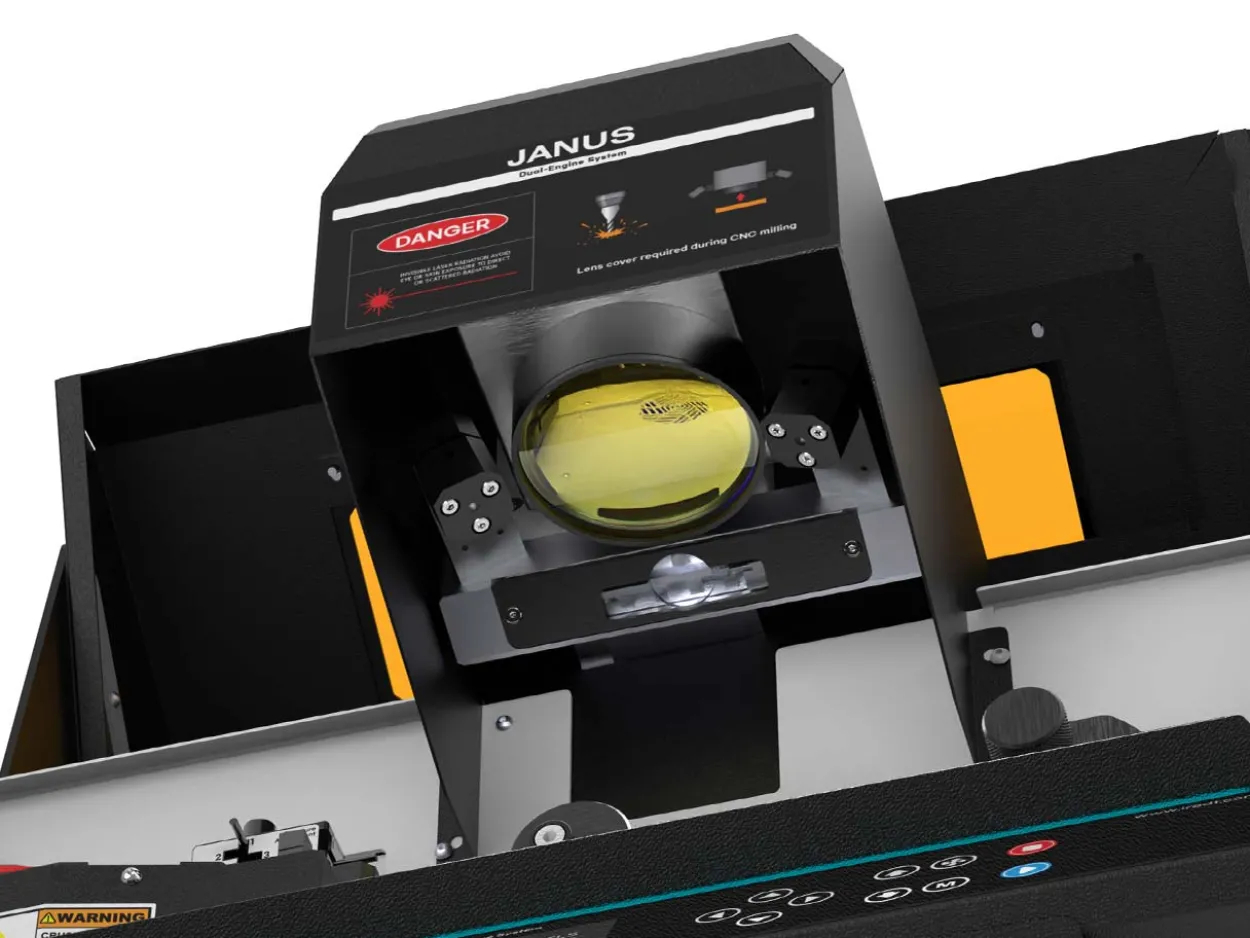

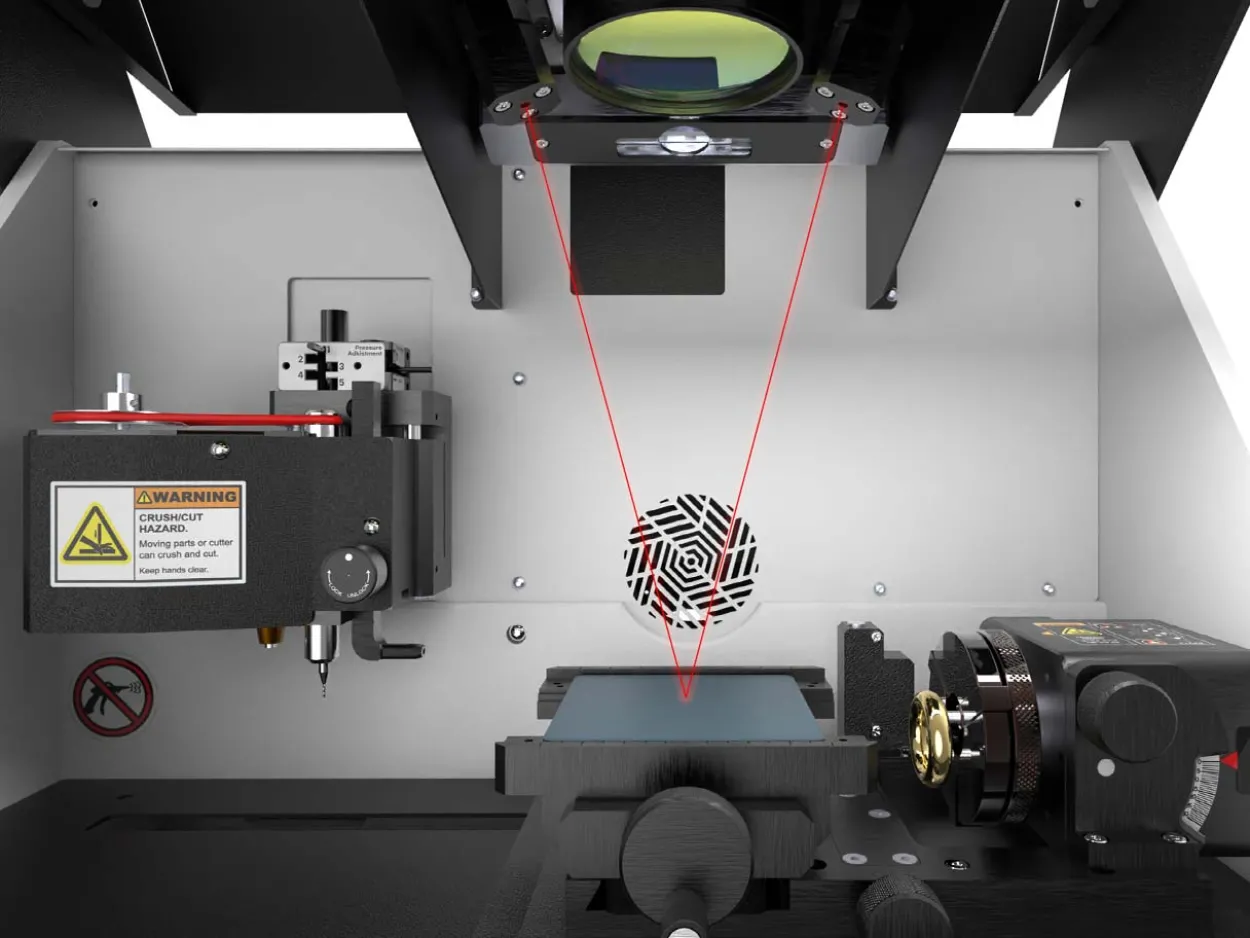

• Built-in camera for automatic positioning
• Probe-based auto focus and material height detection
• MagicEngrave unified control software
• Suitable for precious and industrial metals
• Compact dual-technology machine design
• External I/O ports not supported General Specifications:

Dimensions:

• 550mm (W) x 530mm (H) x 600mm (D)
• Weight: 70 kg
• Power Consumption: 60W < 600W
• Power Supply: 100V – 240V, 50Hz / 60Hz
• Operating Temperature: 0ºC – 40ºC
• Operating Humidity: 10% – 85%

The X, Y and Z axes represent the three directions the tool can move in 3D space: X moves left to right, Y moves front to back, and Z moves up and down.

CNC Specifications:

• Rotary Working Range: Outer Ø14 – 65 mm / Inner Ø11 – 55 mm
• Working Stroke: 240 (X) x 120 (Y) x 60 (Z) mm
• Flat Working Area: 120 (X) x 100 (Y) x 60 (Z) mm
• Tool Diameter: Ø4 mm
• DC Motor Output: 37.9 W

Laser Specifications:

• Laser Type: 60W Fibre MOPA Laser
• Marking Speed: up to 1000 mm/s
• Laser Working Area: 110 (X) x 110 (Y) mm
• Cooling System: Air cooled
• 60W model: up to 40 mm

The hybrid dual-engine design significantly reduces overall equipment investment by combining CNC engraving and fibre laser marking in one compact unit. Users benefit from lower upfront costs, reduced workspace requirements and simplified operator training. By removing the need to transfer workpieces between separate machines, the system minimises setup time, improves alignment accuracy and increases productivity, making it a cost-effective solution for both bespoke and small batch production.

Please note : This product is supplied with 12 months warranty and UK plug.
