Magic 1s Compact Ring Engraver

Description

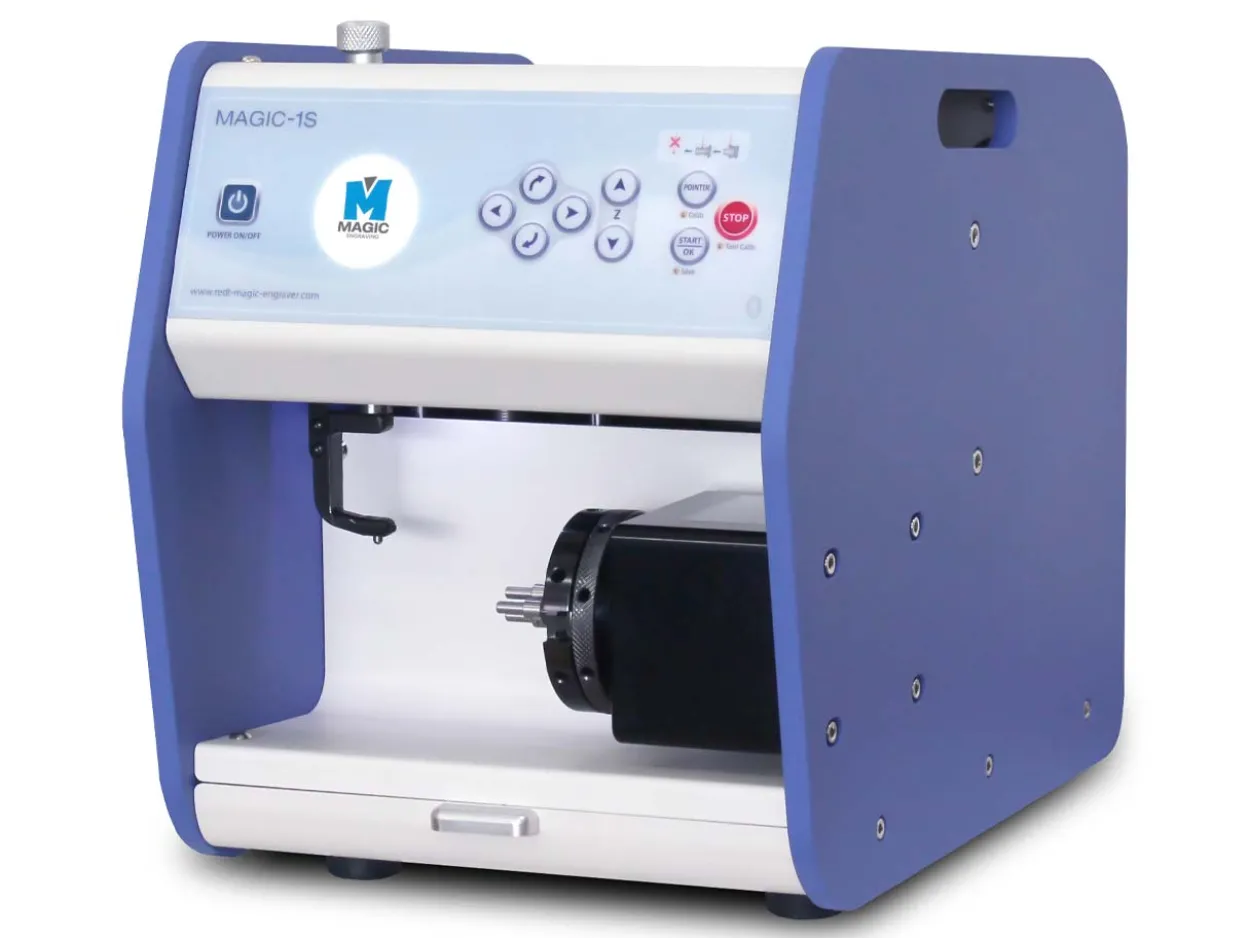

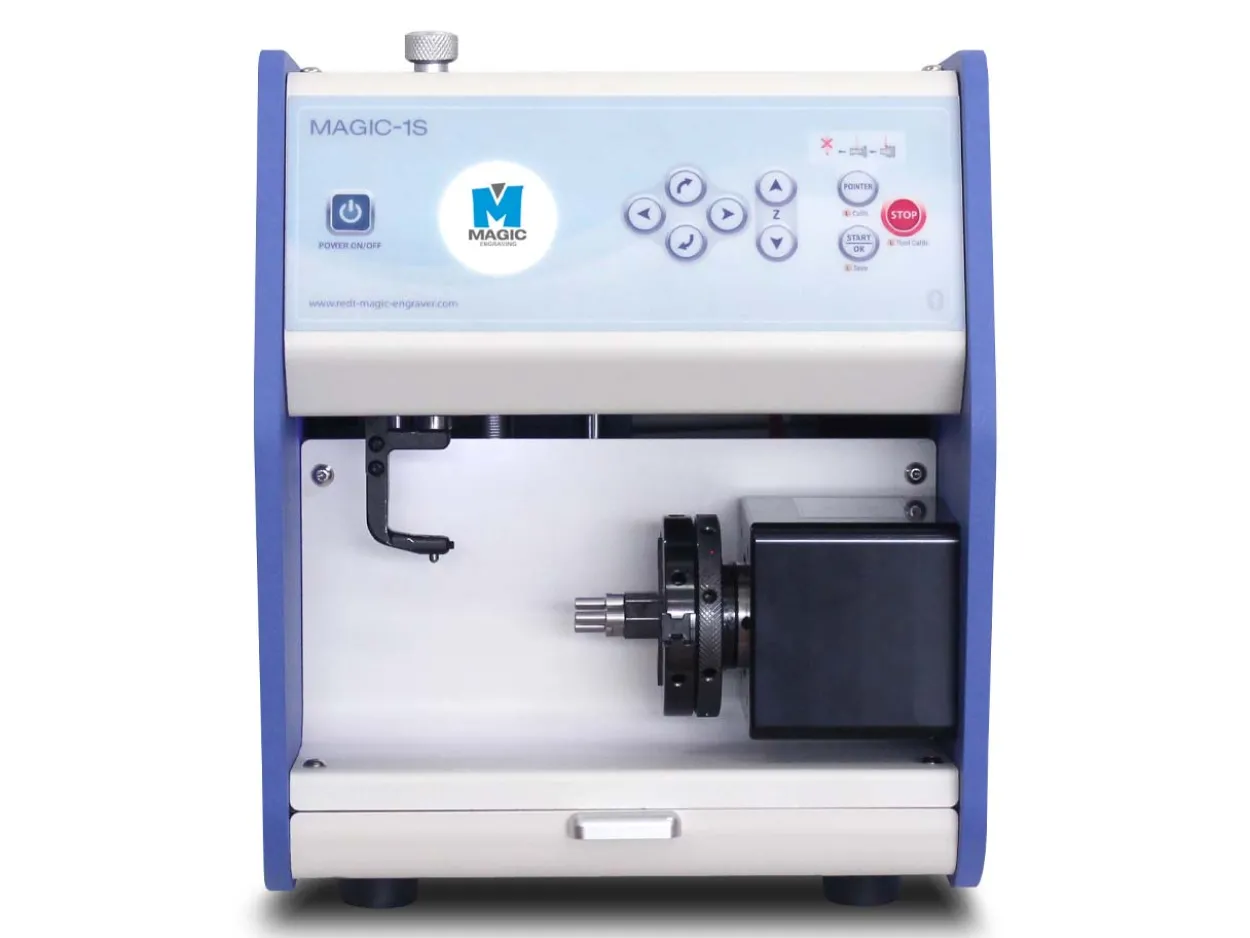

The MAGIC-1S is a compact scribing engraver designed primarily for jewellery applications, especially for marking the inside and outside of rings. Instead of using a laser, it employs a diamond-tipped tool that physically presses into the surface of the material, leaving a polished, permanent mark.

This approach produces an engraving that is both durable and visually sharp, making it ideal for precious metals and fine jewellery.

It includes automatic functions that measure the workpiece height and tool length on their own, which reduces setup time and minimizes errors.

The unit connects wirelessly through Bluetooth, allowing operators to run it directly from a tablet, whether it’s an iPad, Android device or Windows tablet. This makes the system approachable for both experienced jewellers and beginners, and even allows customers to see and participate in the personalization process.

The included MagicEngrave software supports text, logos, patterns, and even photo style marking. It accepts common design file types, making it easy to bring in artwork or graphics. This flexibility gives jewellers and retailers a wide range of creative options, from simple inscriptions to more detailed decorative work.

Technical data:

• Voltage: AC 100~240V, 50Hz/60Hz
• Power Consumption: 21W
• Temperature Humidity: 0 ~ 40C/10~85%
• Rotary Outer Diameter: 29mm
• Rotary Inner Diameter: 14~30mm
• Size: 222mm x 278mm x 323mm
• Weight: 13kg

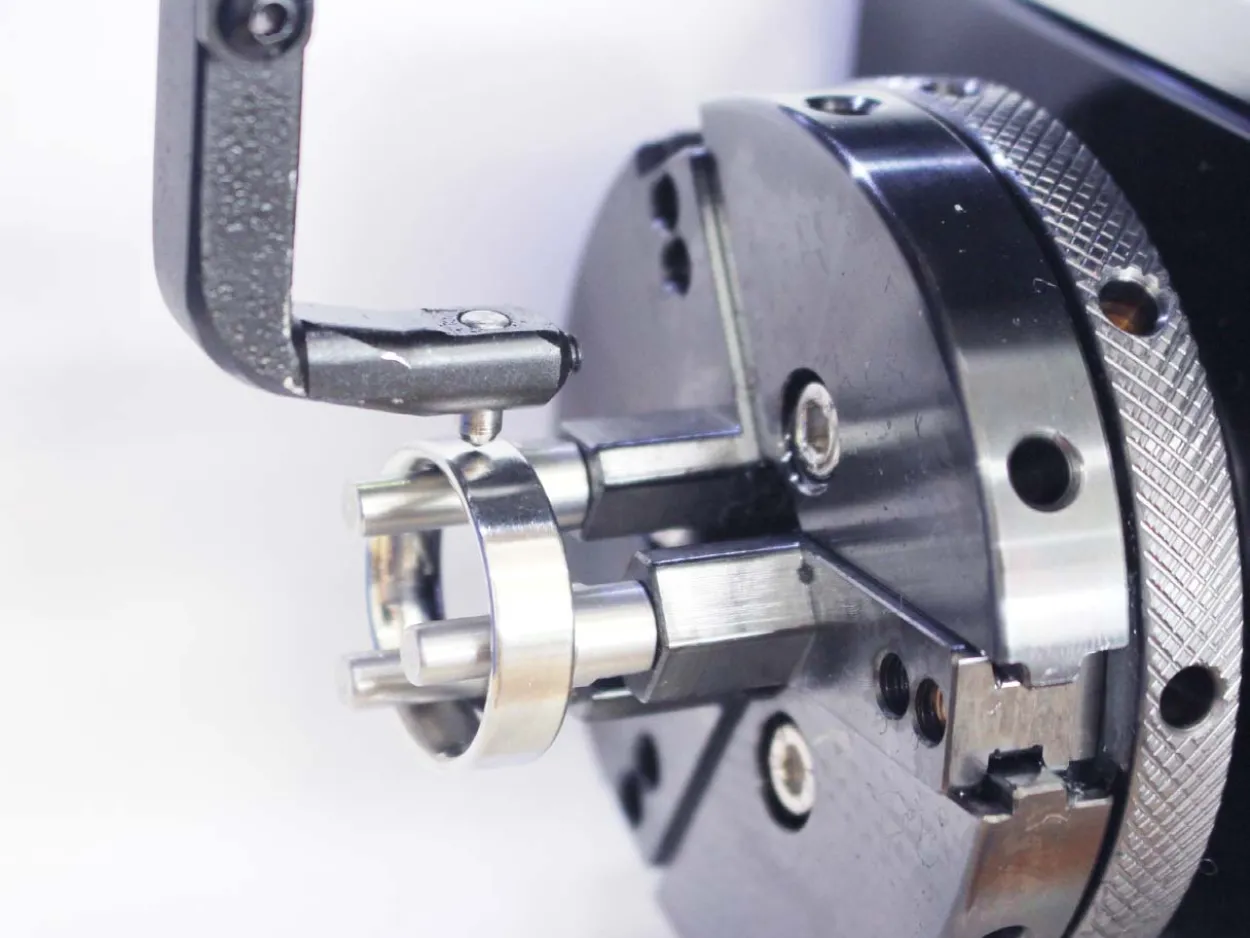

The MAGIC-1S is built with retail environments in mind. It is small, lightweight, and quiet, so it can sit comfortably on a counter without disrupting the workspace or the customer experience. Despite its size, the machine holds rings securely in place and engraves quickly ensuring a smooth workflow even in busy shops.

The engraver works on a broad range of materials, these include precious metals like gold, platinum, and silver, as well as titanium, brass, aluminium, stainless steel, plated finishes, certain plastics, and even glass. Because it uses a scribing tool, the finish is strong and lasting, though softer or plated surfaces may require extra care to avoid damage.

Included in the kit:

• 1.5mm L-wrench
• Flat chuck finger
• Round chuck finger(Narrow width)
• Ruler
• Power adapter
• Program CD
• Chuck finger skin
• Round chuck finger(Wide width)
• Chuck handle
• Finger spanner
• USB cable
• User’s manual

The MAGIC-1S is a purpose-built solution for jewellers who want to add personalized engraving to their services without the footprint or complexity of larger systems. It offers a balance of convenience, precision, and versatility, all in a machine small enough for customer-facing use.

Please note: This product comes with a 1 year warranty and it is supplied with a UK 3-pin plug.
