Foredom Professional Stone Setting LX System Deluxe

Description

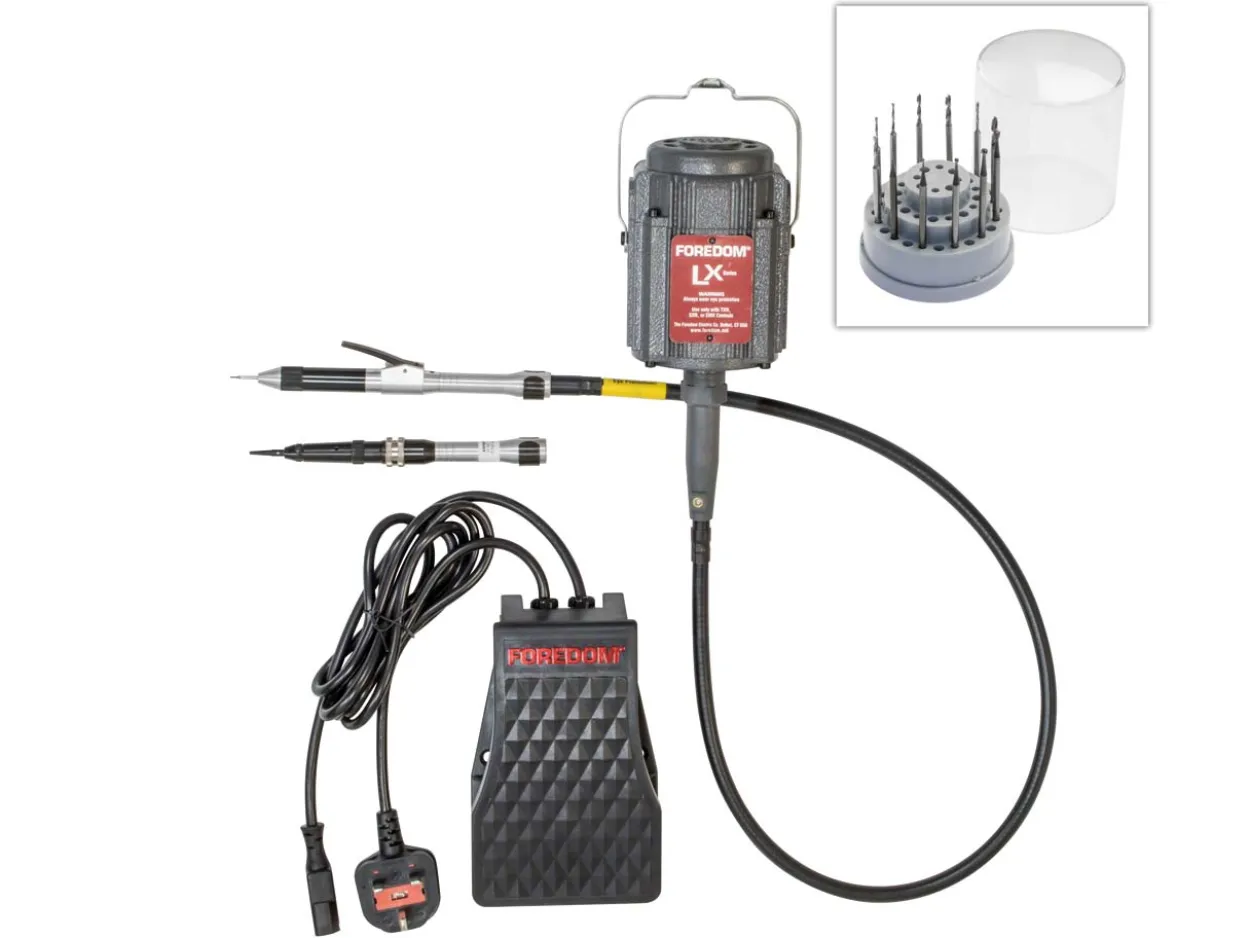

This Deluxe Stone Setting Kit contains all of the essentials you need for professional stone setting, including: Foredom Series LX Motor, Speed Control, Hammer and Quick Change hand pieces, Accessory Kit and Flexible Shaft Grease.

Foredom is the leading manufacturer of flexible shaft tools within the jewellery making industry, setting the standard in quality, power and performance.

The provided Series LX Motor has been specially designed for high torque and low speed applications offering increased power for stone setting, wax modelling and pearl drilling.

Kit contains :

• Pendant motor
• Speed control
• 2x hand pieces – Hammer Action and Quick Change
• 13 piece accessory kit

It features a 5,000RPM motor, a motor bale for hanging and 39″ long key tip for connecting to Foredom hand pieces (quick change and hammer hand pieces for stone setting are both suitable).

The Speed control foot pedal (C.TXR-2) features unique electronics suitable for the Series LX motors.

It has an extra wide pedal with a slim-line profile and non-skid pads on the bottom.

Measuring approx. 178mm x 114.3mm x 50.8mm.

The Deluxe stone setting kit contains:

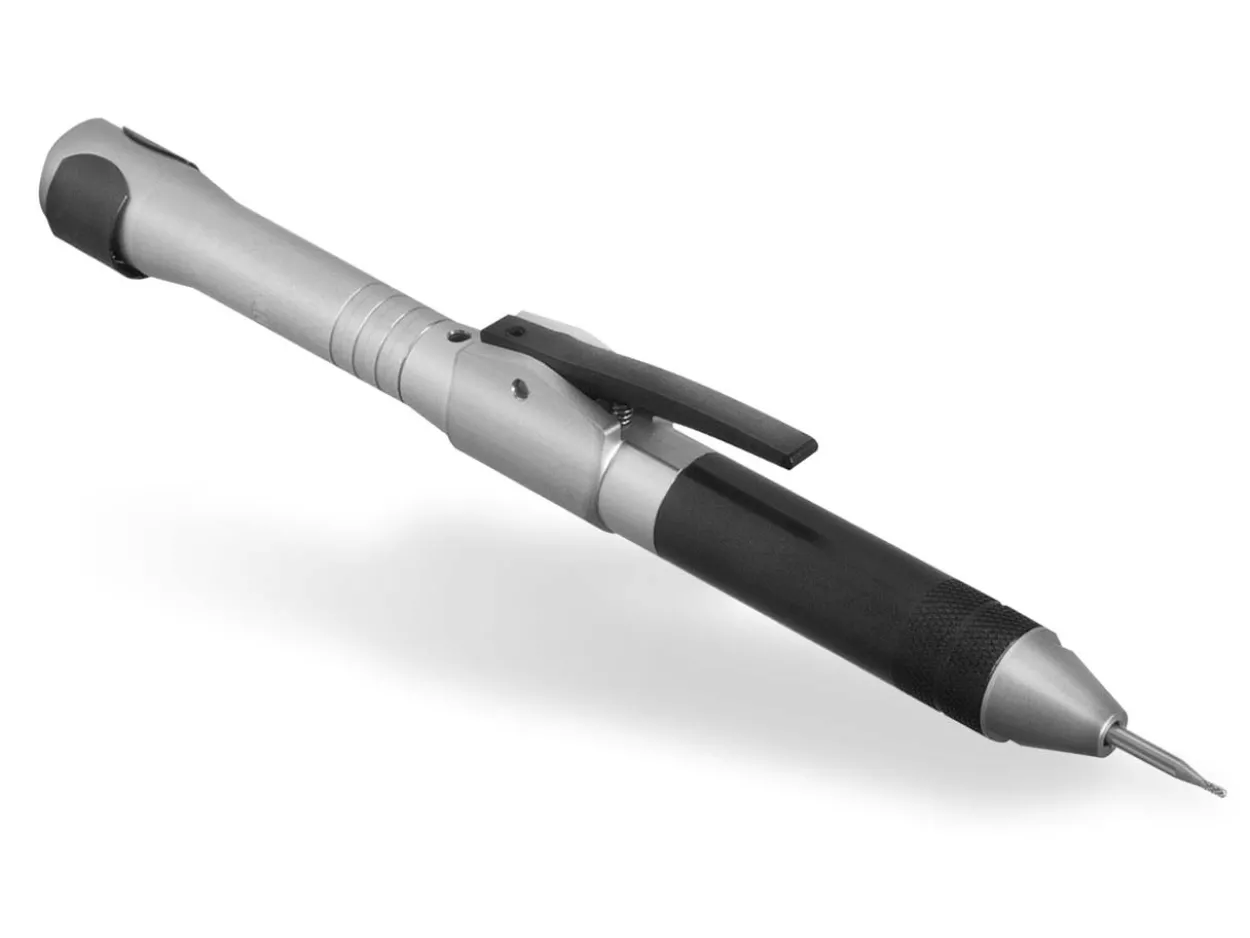

• A Quick Change Handpiece (H.18) which is operated by a press lever action. Featuring a slim grip profile and pre-lubricated ball bearings which won’t require lubrication. Suitable for 2.35mm accessories only (measures approx. 178mm long x 15.10mm diameter).

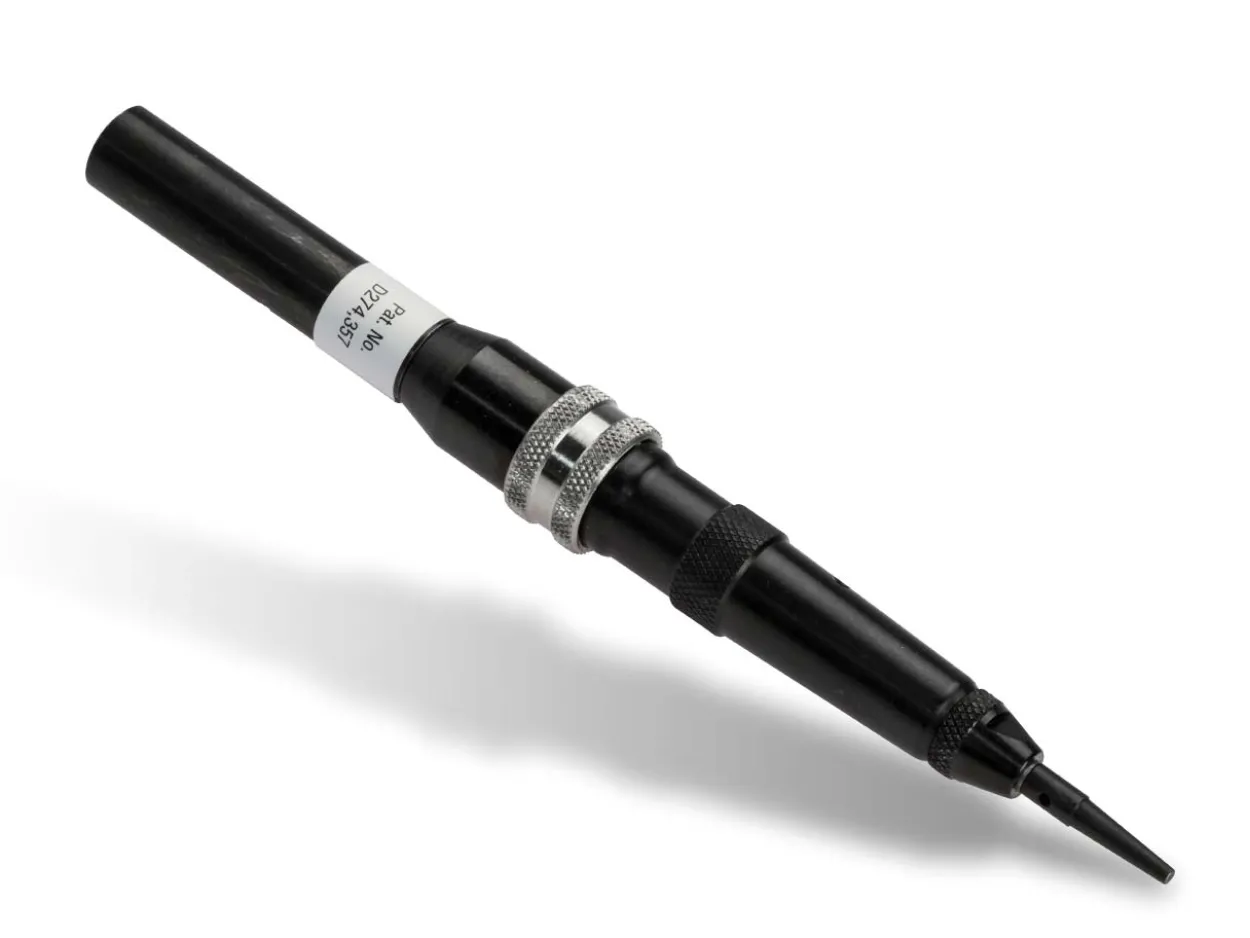

• A Hammer Handpiece (H.15) which operates with a hammering action rather than rotary. This hand piece is to be used for low speed applications (0-5,000RPM) like stone setting or decorative work and is supplied with a threaded, flat top Anvil Point. The Hammer action has a 1/32″ stroke with adjustable impact from light to heavy, which can be changed by simply turning the textured adjusting ring.

Please note – this hand piece requires periodic lubrication. Measures approx. 152.4mm long x 6.35mm diameter.

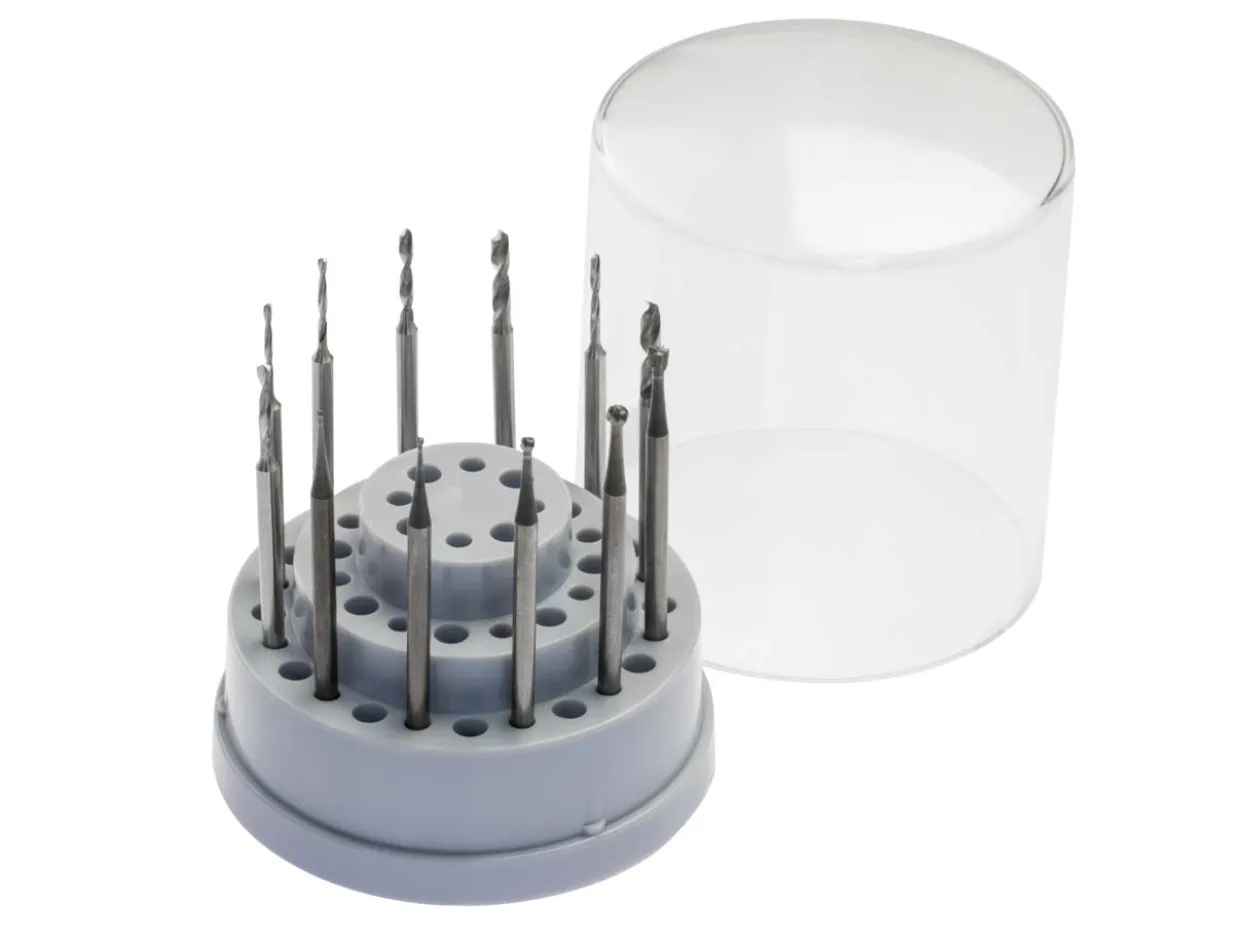

A 13 piece accessory kit (AK90) completes this set featuring: 0.9mm, 1.0mm, 1.1mm, 1.4mm, 1.5mm, 2.0mm, and 2.2mm Step Drills plus 0.8mm, 1.6mm, 2.3mm Ball Burrs and 0.8mm and 2.3mm Inverted Cone Burrs (on 2.35mm shank), supplied in a convenient burr holder. Includesand .

This product comes with a 2-year guarantee, exclusive to Cooksongold. Please note: the handpiece is covered by a 90-day warranty, which excludes the shaft and sheath.

Foredom reference: K.2245.

---

Catalogue Page Number p644

---
