Fixed Saw Frame, Eclipse 3″/75mm Frame Depth

Description

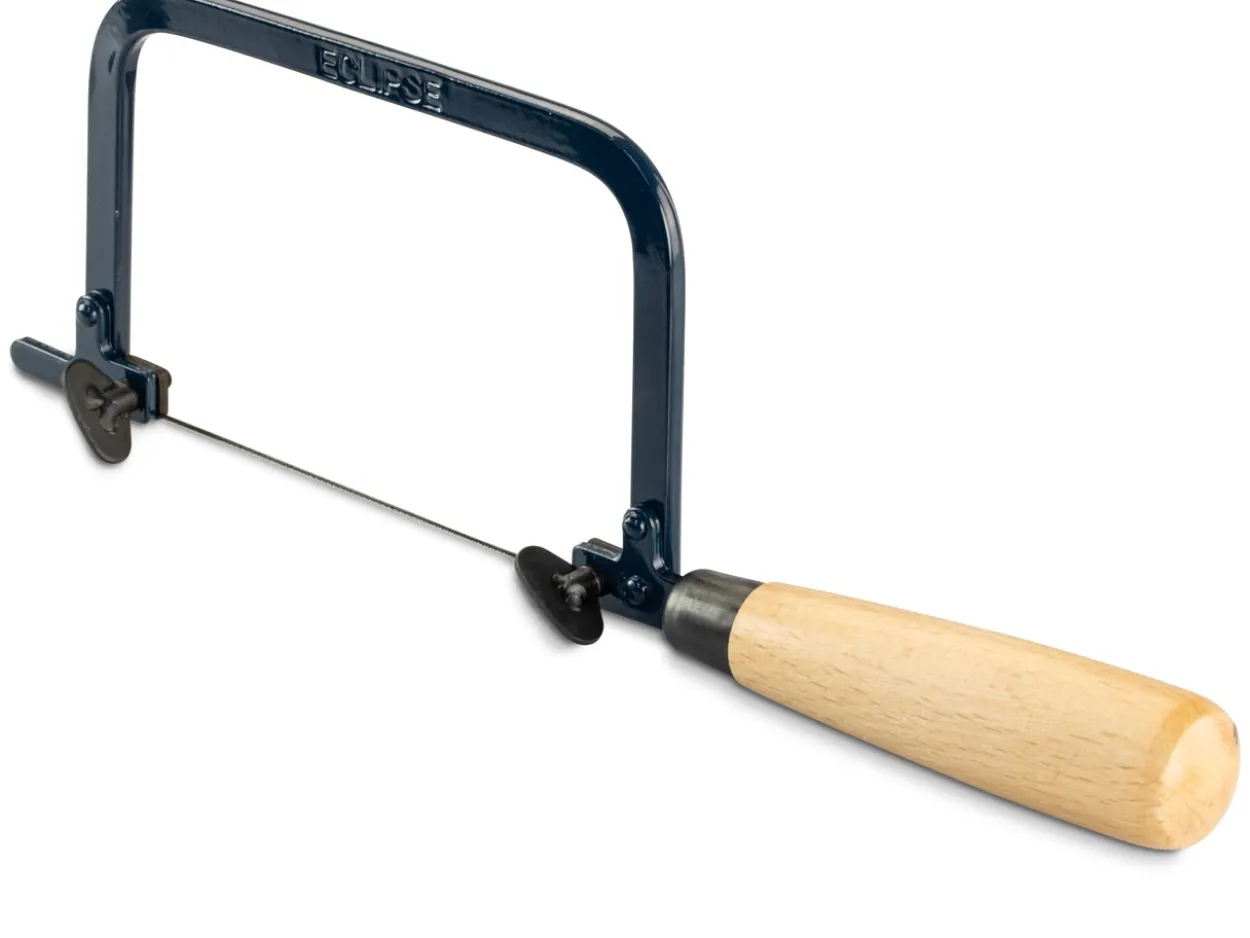

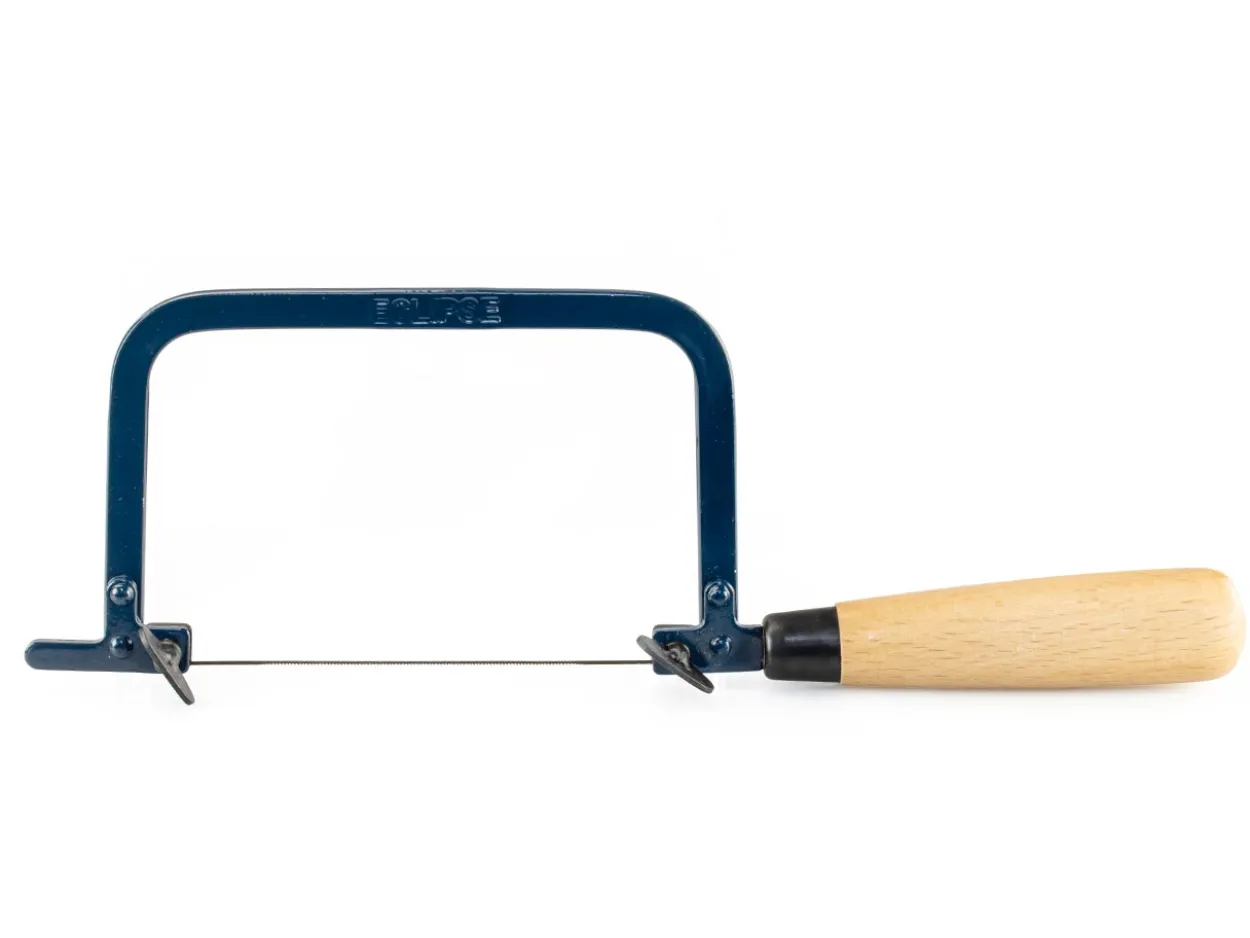

Eclipse fixed metal saw frame with wooden handle. Depth of frame = 75mm. Maximum cutting length = 75mm/7.5cm. (due to depth of frame) Holds saw blade 130mm in length.

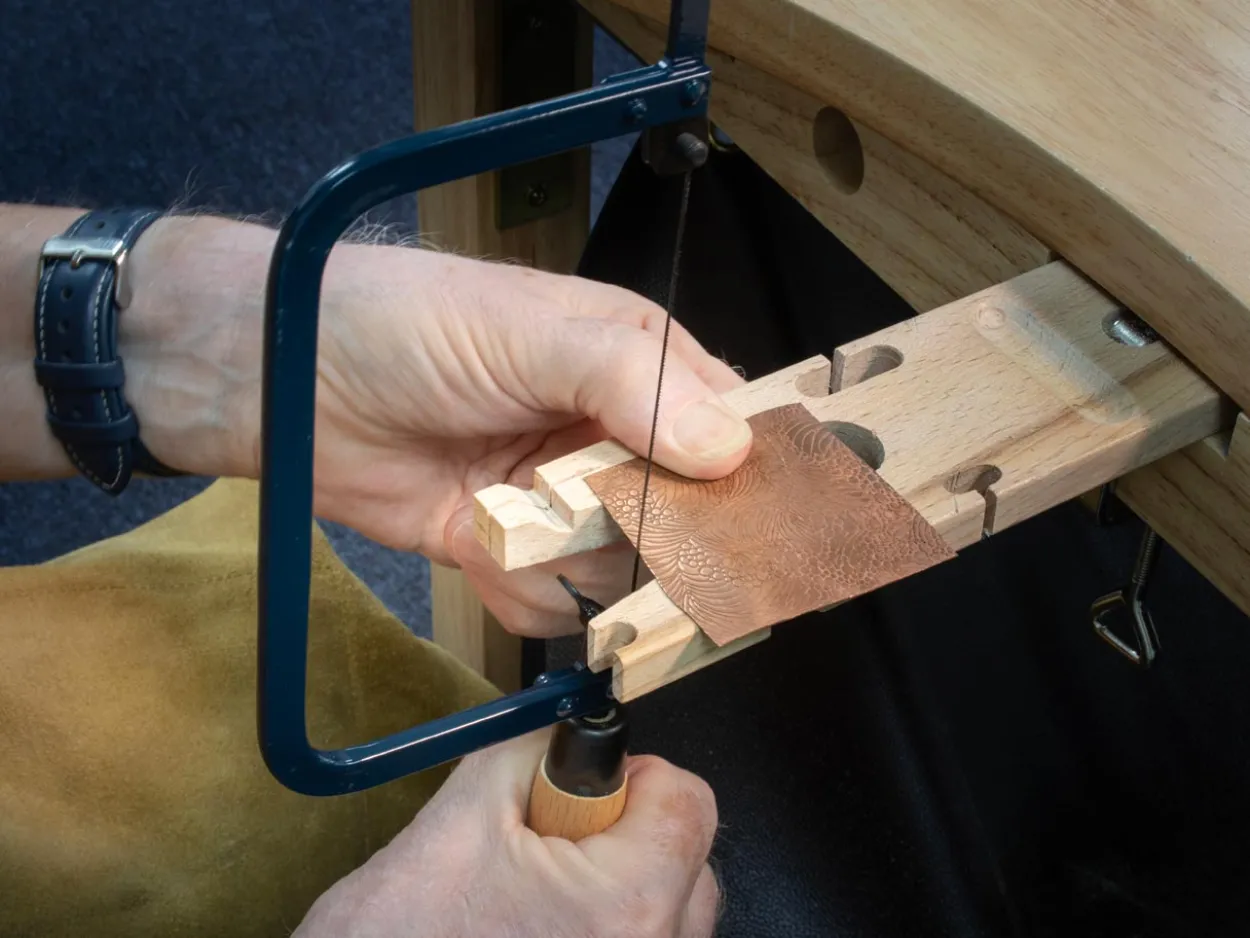

To fit blade: Loosen the screws, insert the blade ensuring the teeth are pointing towards the handle and facing away from the frame. Tighten one screw, then push the frame against the bench and tighten the other keeping the frame under pressure. The blade will be held taut in the frame.

Quick Release model also available see . Never use pliers to tighten the nuts on the frame as this will damage the screw thread.

Catalogue Page Number p623
