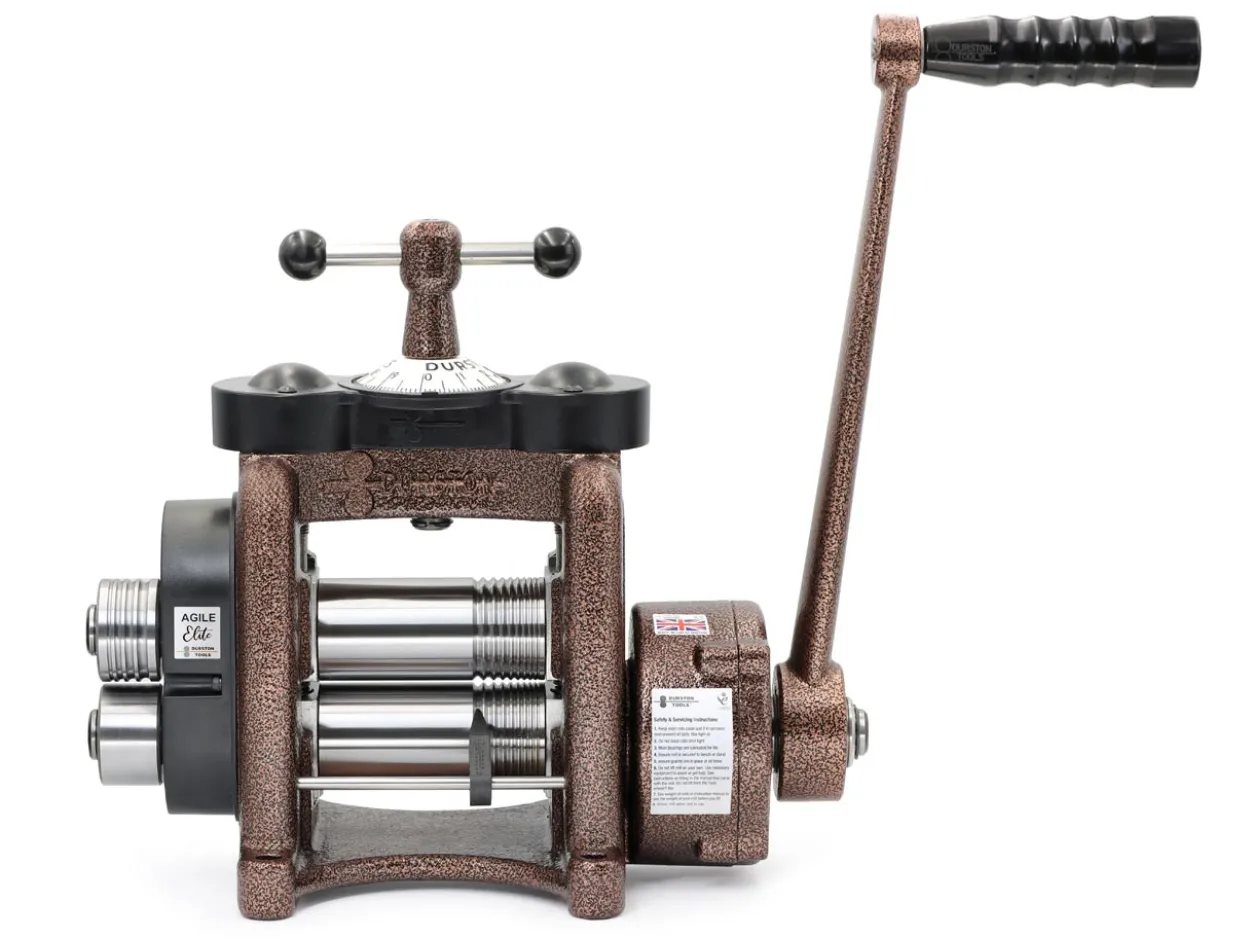

Durston Agile Elite C110 Combination Rolling Mill

Description

This Durston Agile Elite C110 Kings Award Celebration Collection rolling mill features a robust and smooth powder-coated copper finish.

With additional features and a suite of side extensions, it offers a variety of ways to simplify your metalworking projects.

The adjustable T-bar allows quicker and easier adjustments, ensuring smooth operation. It also includes an ergonomic revolving handle for added comfort during use.

As a rough guide, when halving the thickness of the rolling sheet, you will double the length (if rolling in one direction). Rolling sheet metal should be a gradual process, and the resulting compression of the metal. Therefore, in between each stage of rolling, the metal will need to be annealed.

Key features:

• Gearbox – 4:1
• Maximum sheet thickness – 6mm
• Maximum sheet rolling -5.5mm
• Flat sheet rolling dimensions – 75mm
• 9 grooves for rolling square wire from 1mm to 5mm
• Extension rollers
• 9 grooves for rolling D shaped wire from 2mm to 10mm

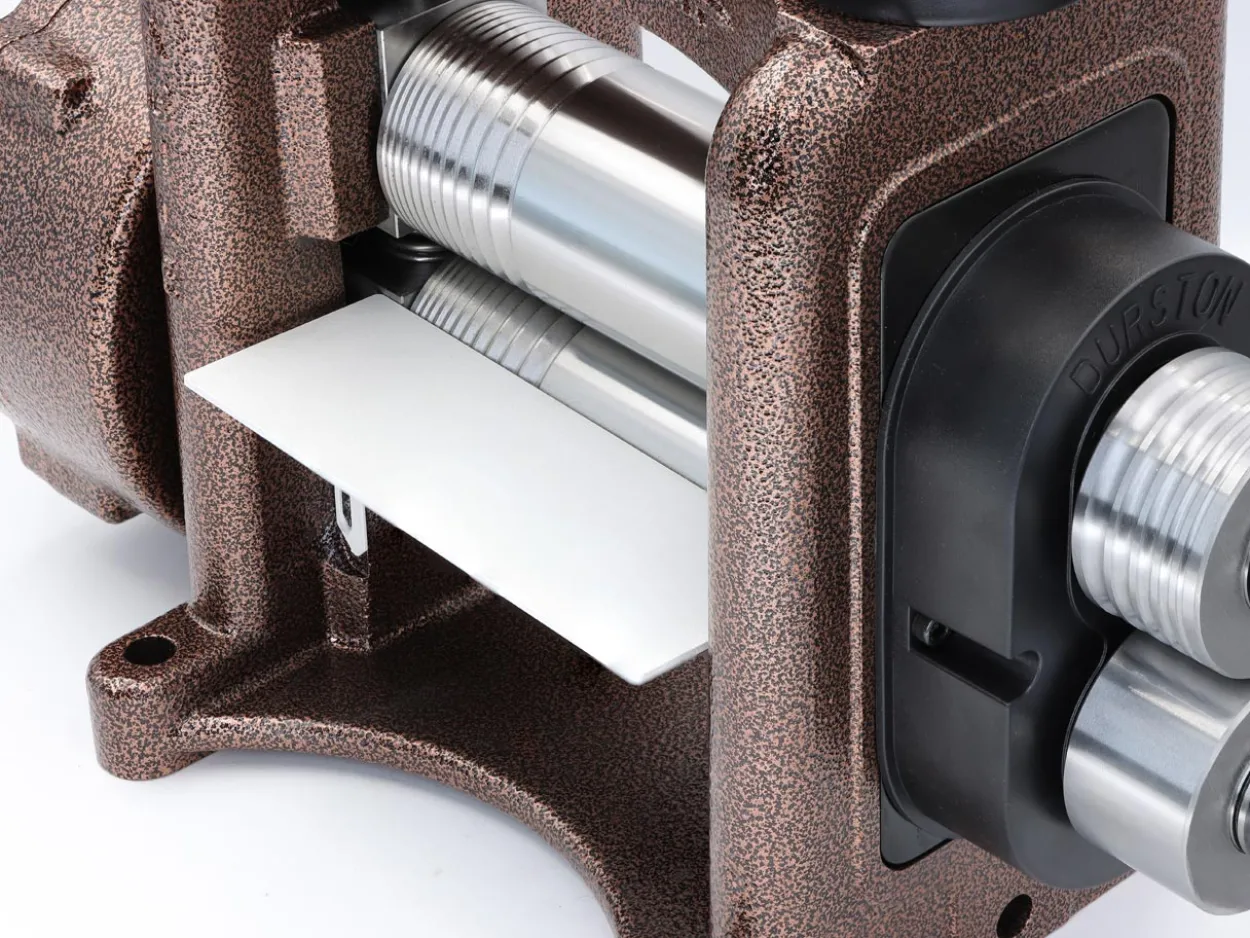

The Agile Elite C110 boasts an expanded 75mm flat area, providing increased space for working with patterns or flat sheet rolling.

The rear catch tray is finished in white for easy visibility and retrieval of pieces.

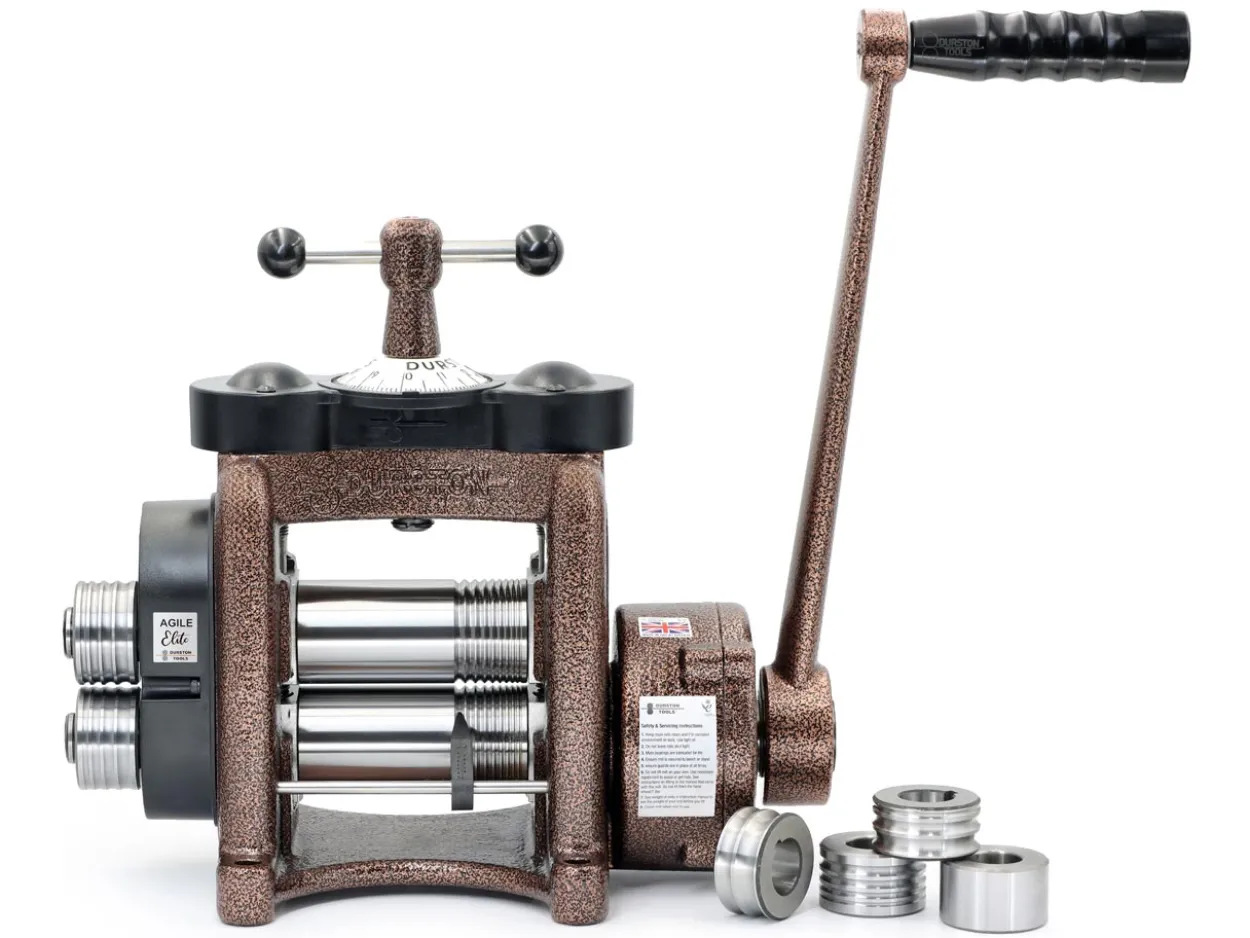

Also includes a comprehensive range of rolls from 3mm to 6mm, catering to various metalworking needs.

Additional features include:

• 3 D shape extension rollers – 2mm to 10mm
• Comfort-fit extension rolls ranging from 3mm to 6mm
• Pattern plate featuring Durston’s best-selling designs
• Rolling mill cover to protect the mill from dust and dirt

This product comes with 3 year guarantee, exclusive to Cooksongold.

Durston reference number: 1017.

Durston stand that is compatible with this rolling mill .
