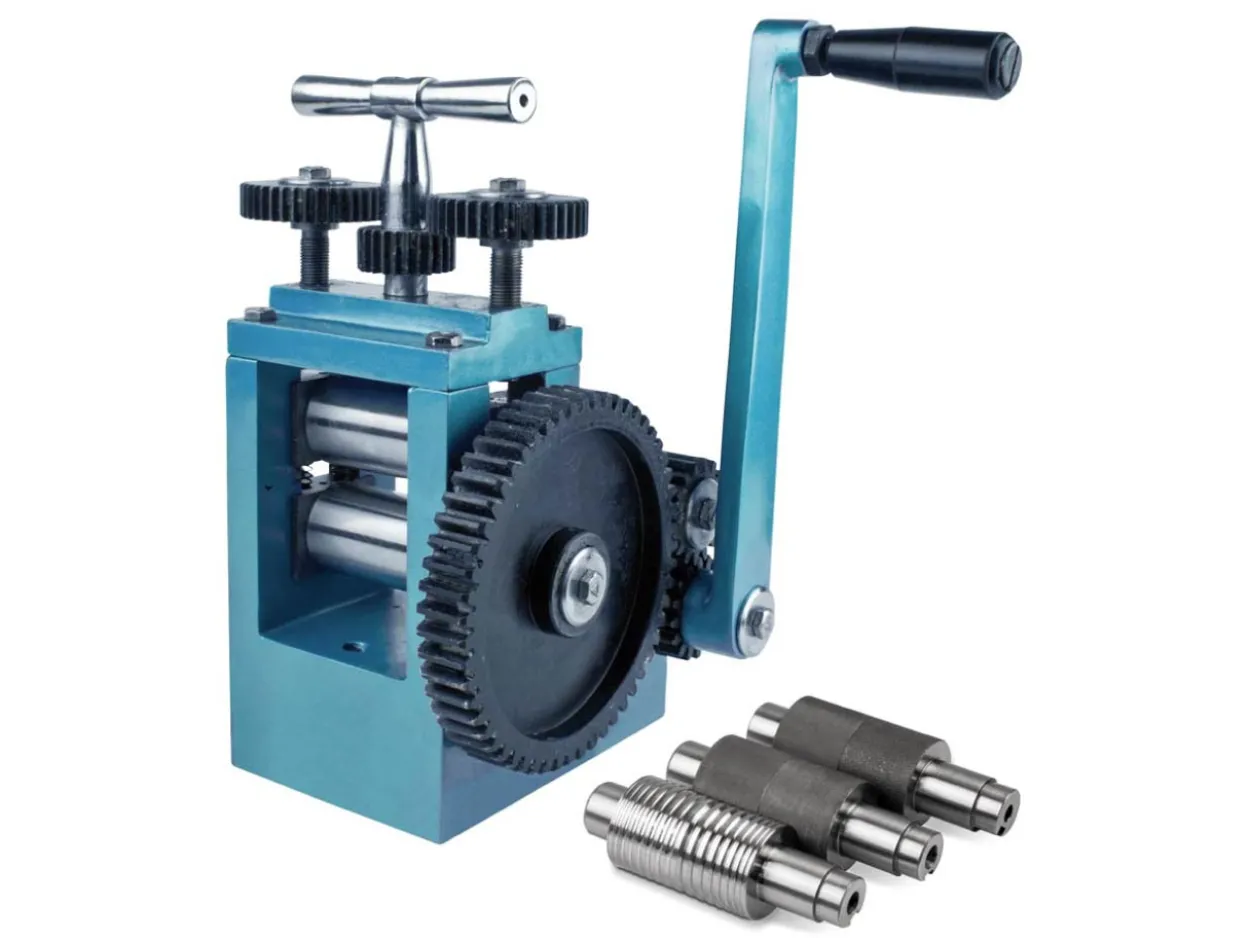

Combination Rolling Mill With 5 Rollers, Value Range

Description

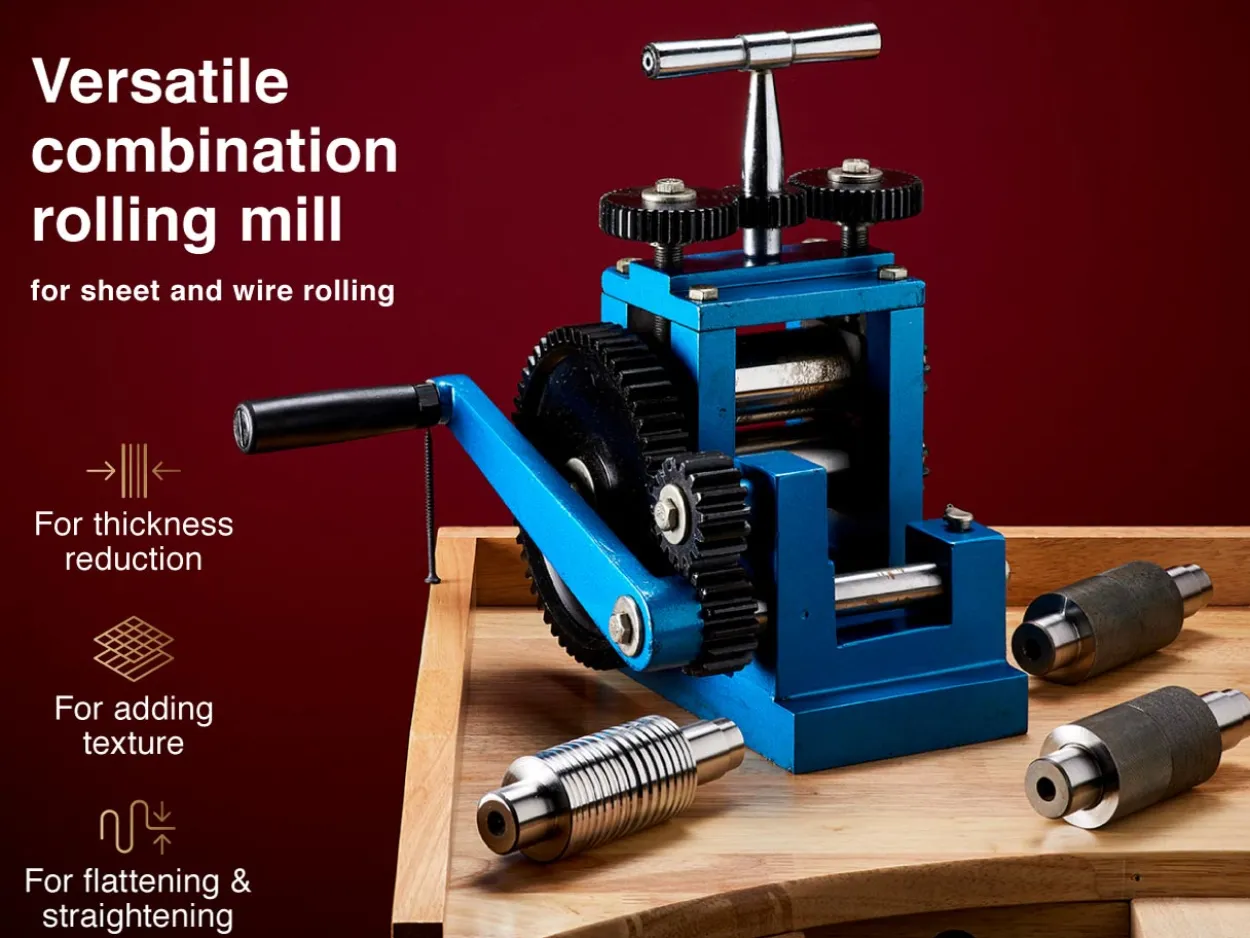

This great value combination rolling mill is an essential tool for any jeweller or metalworker looking to roll sheet and wire with precision and efficiency.

Designed for versatility and durability, this mill is ideal for small workshops, hobbyists, and beginners alike.

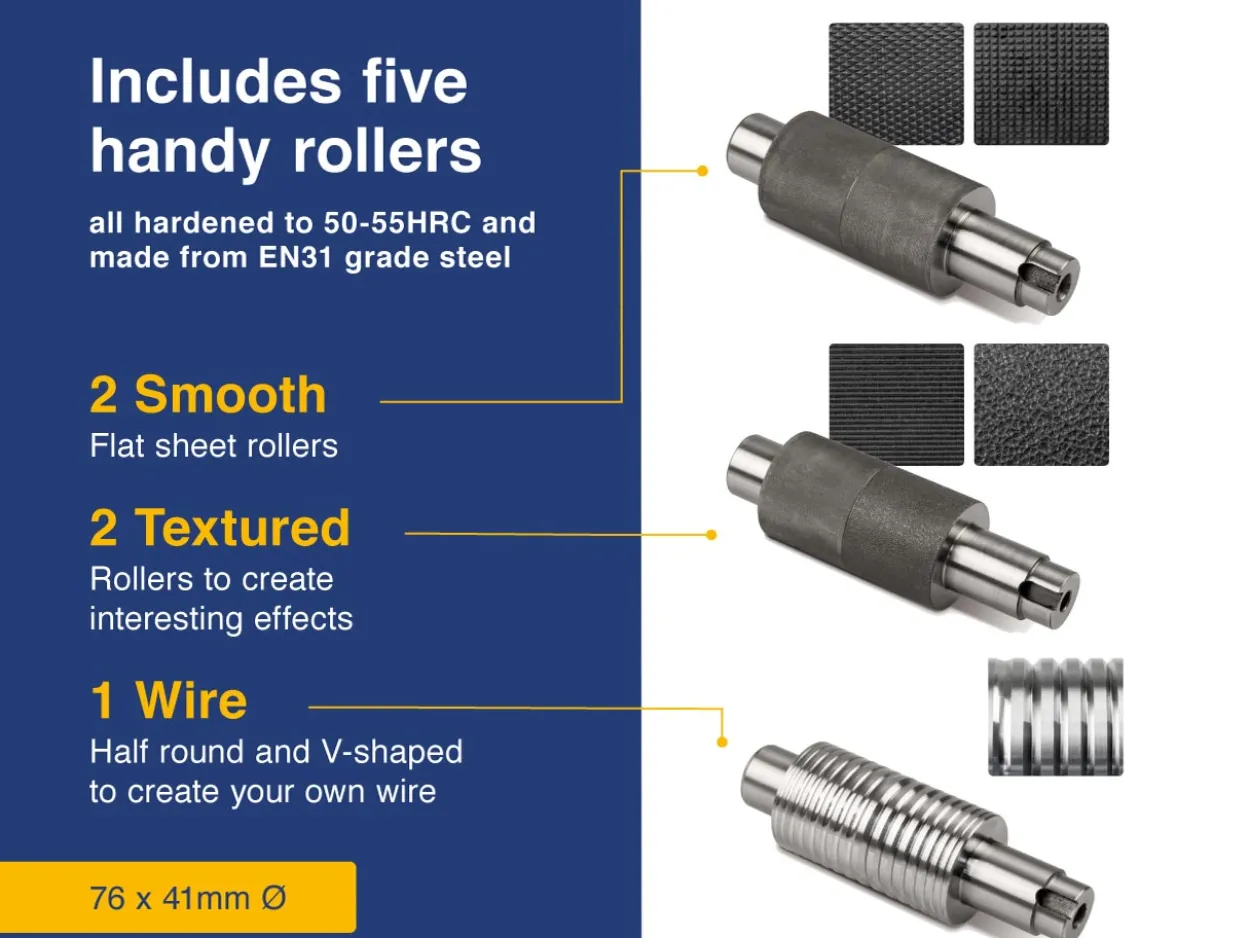

The mill comes complete with five rollers’ all hardened to 50?55 HRC and made from EN31 grade steel. The top roller can be easily swapped out with any of the three included interchangeable options to accommodate different rolling applications:

• 2 x Flat Sheet Rollers (75 x 41mm Ø)

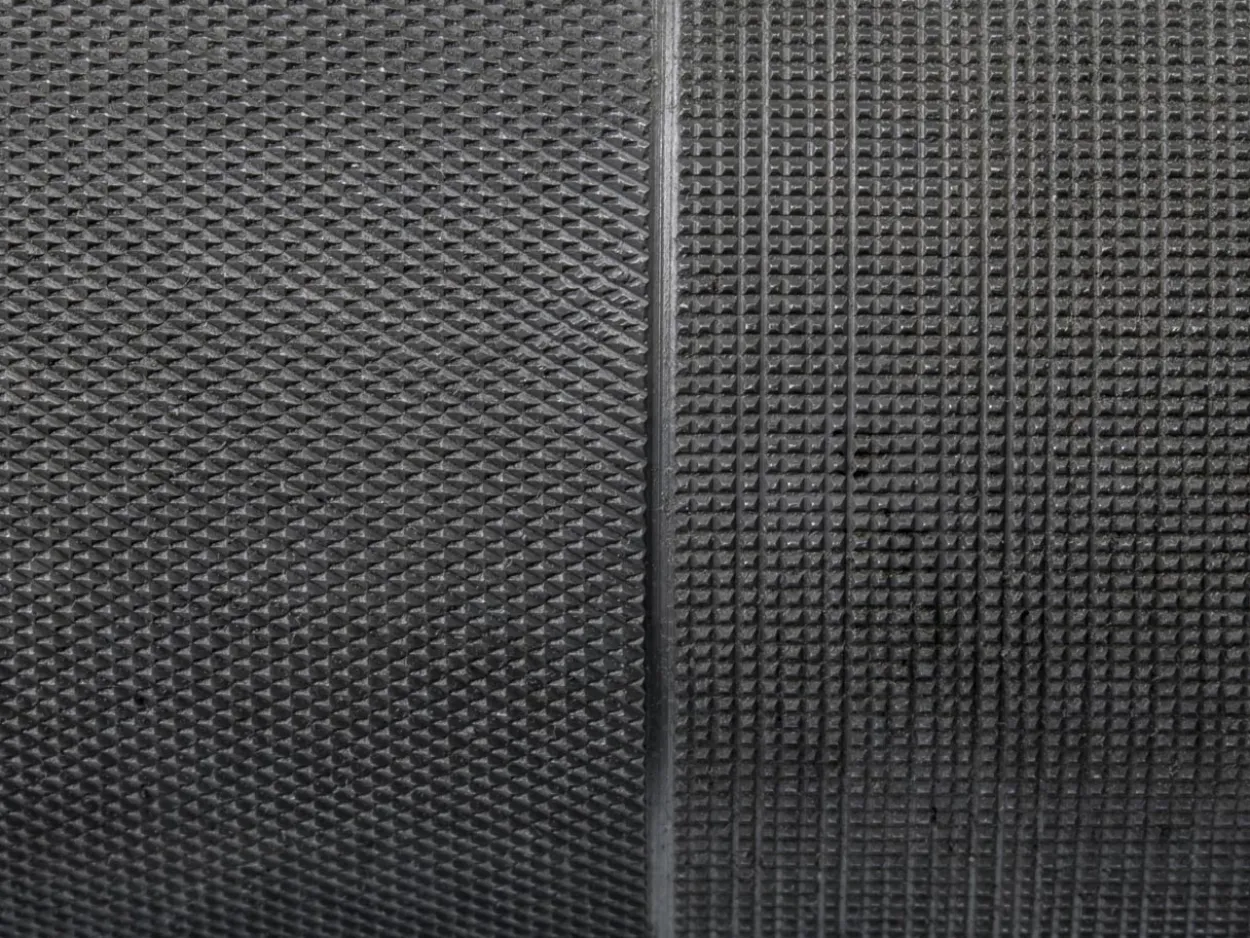

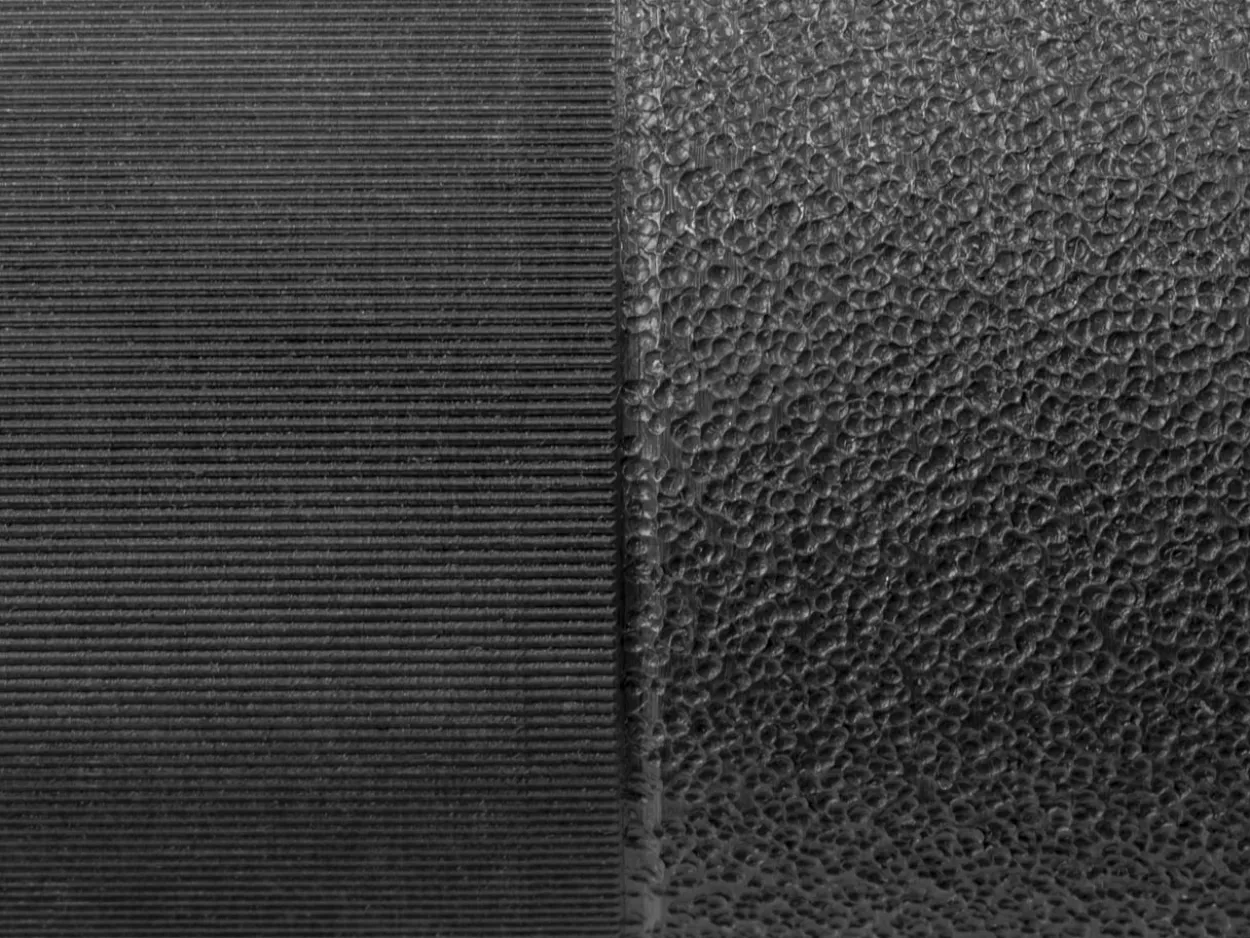

• 2 x Textured Rollers to create interesting effects

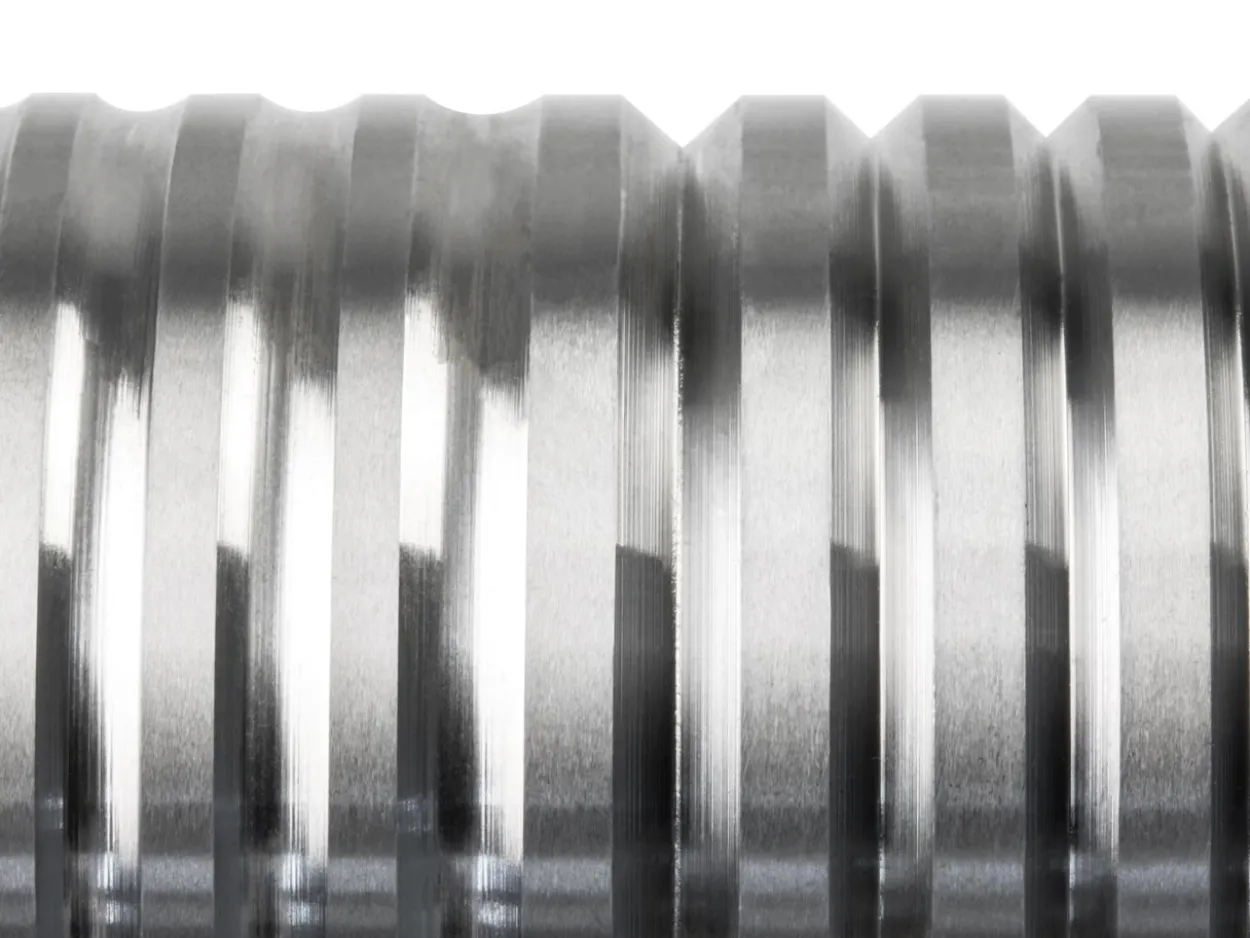

• 1 x Half round and V shaped wire roller to enable you to create your own wire

The rollers are able to fully close. When the upper gear with the T-handle is properly fixed and aligned, the rollers should close completely with no gap remaining. You can also try using the rolling mill with soft PTFE plastic materials. For the best performance, we recommend using material with a thickness of under 2.5mm.

This combination rolling mill is part of our essentials tools range which represents amazing value for money and is perfect for all types of work. This rolling mill comes with a 1 year guarantee for peace of mind.

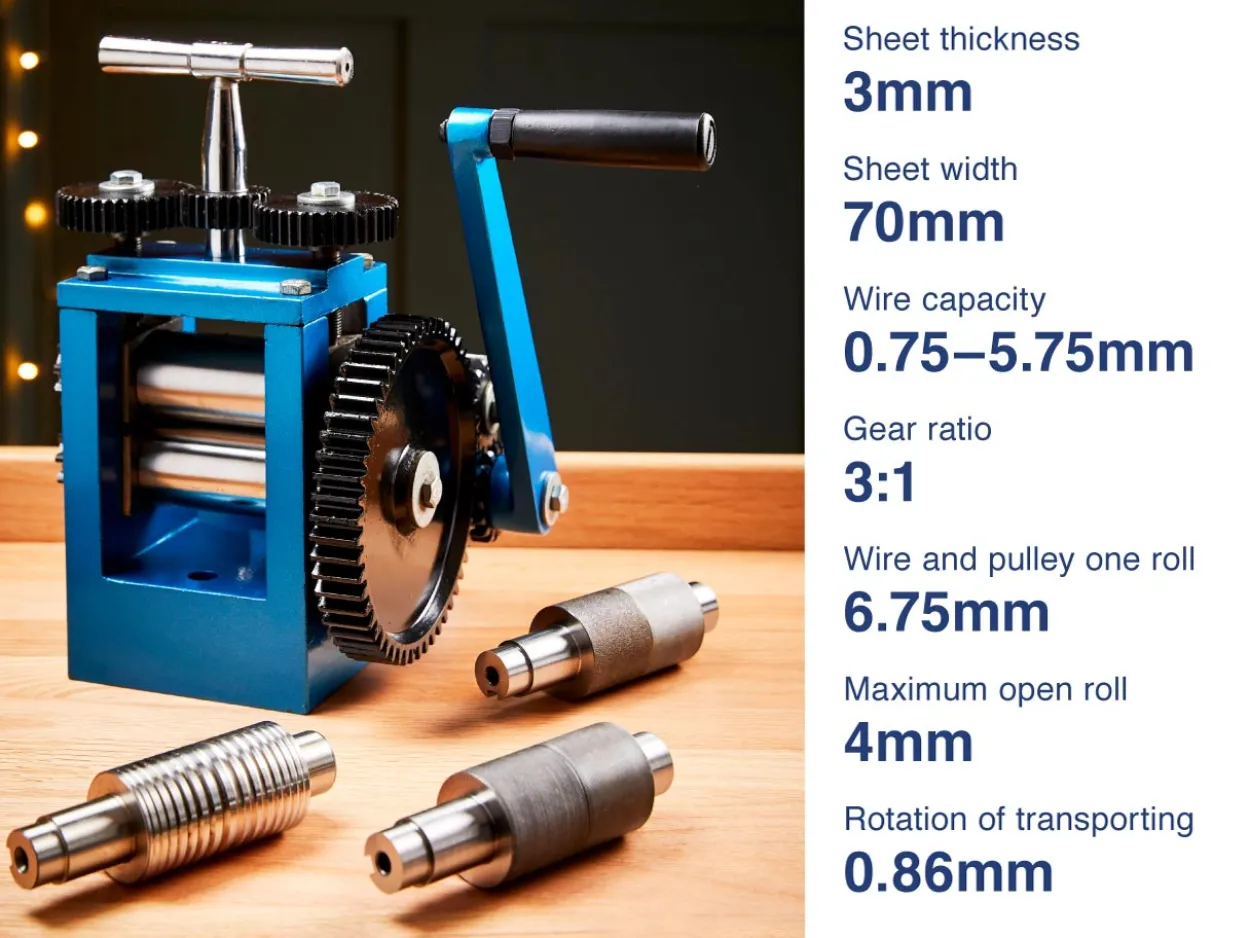

Key Features :

• Roller size: 76mm x 41mm
• Sheet thickness: 0.3mm to 3mm
• Sheet width: 70mm
• Wire capacity: 0.75mm to 5.75mm
• Metal: Soft metals including Gold and Silver
• Gears: 3:1 Gear Ratio
• Maximum depth rollers open: 4mm
• Roller rotation per handle turn: 0.86mm
• Net weight: 17.3Kg
• Gross weight: 22.5Kg
• 1 year guarantee

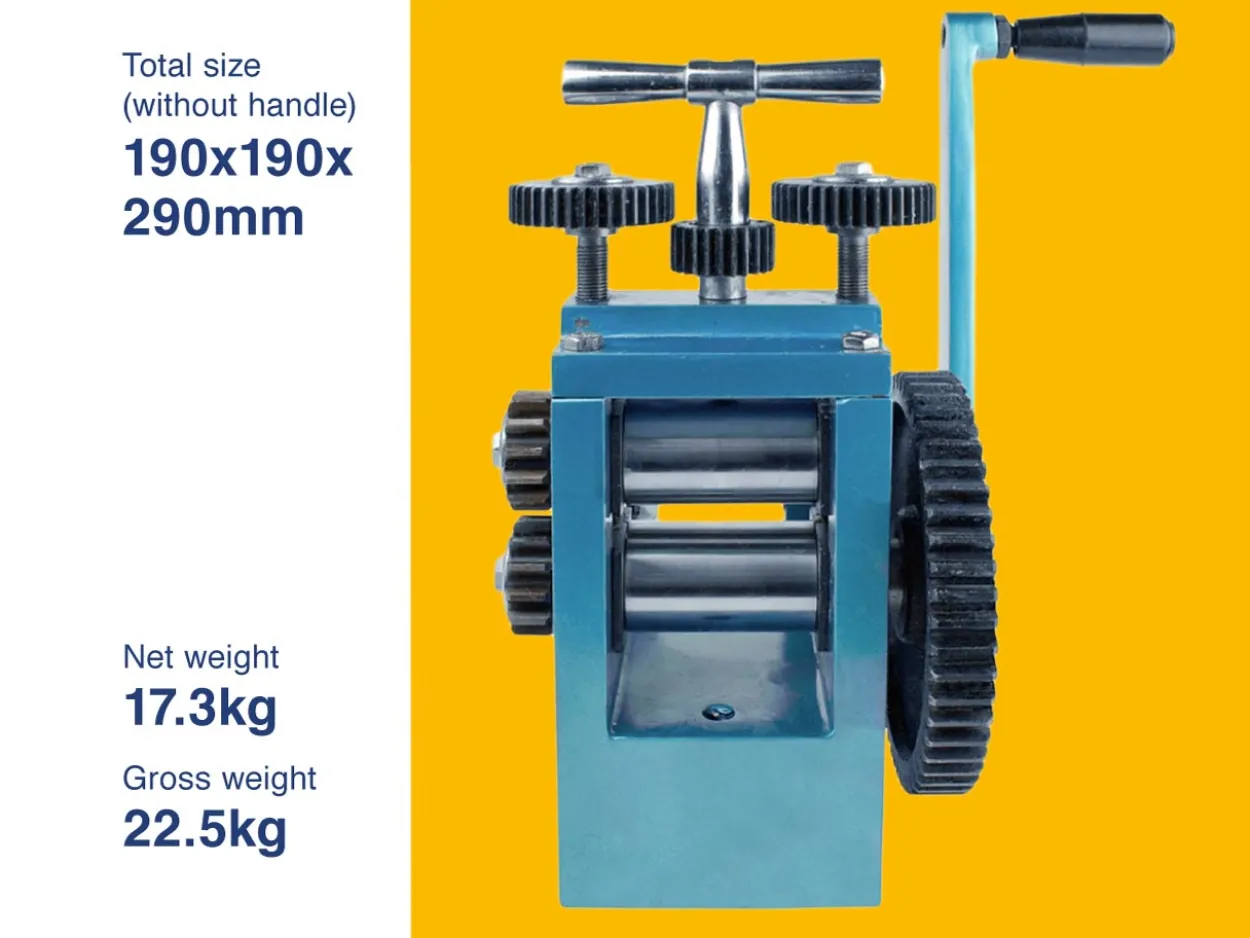

• Total size of mill (without handle): 190mm x 190mm x 290mm
• Internal spring length 13.5mm
• Internal spring width 10mm

This rolling mill arrives coated with a protective rust inhibitor substance. This is to help prevent from from rusting durning shipping. The coating is easy to remove. Here’s how to do it:

Step 1

To remove the Cosmoline coating, wipe the tool with a paper towel or other disposable absorbent material. This alone should be enough to leave the tool feeling clean and usable.

Step 2

If some substance remains, use a small amount of kerosene or paint thinner on a clean paper towel or other disposable absorbent material to dissolve it.

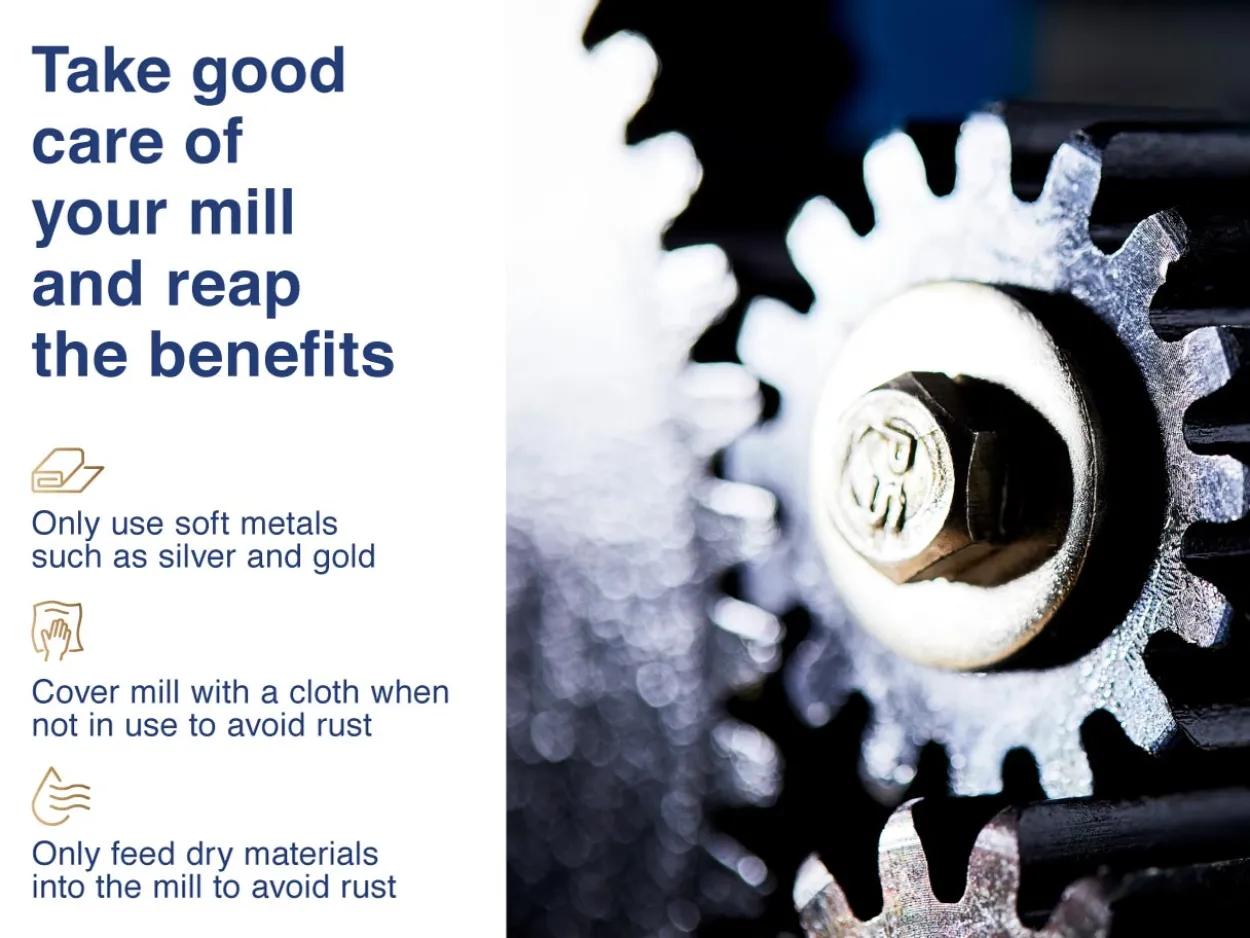

When this combination rolling mill is not inuse recover the rollers with a protective lubricant to prevent rusting.

Spare rollers are also available for this mill.

Please note – thin metal and the extra force can result in the breakage of the gear.

---

Catalogue Page Number p574

---
