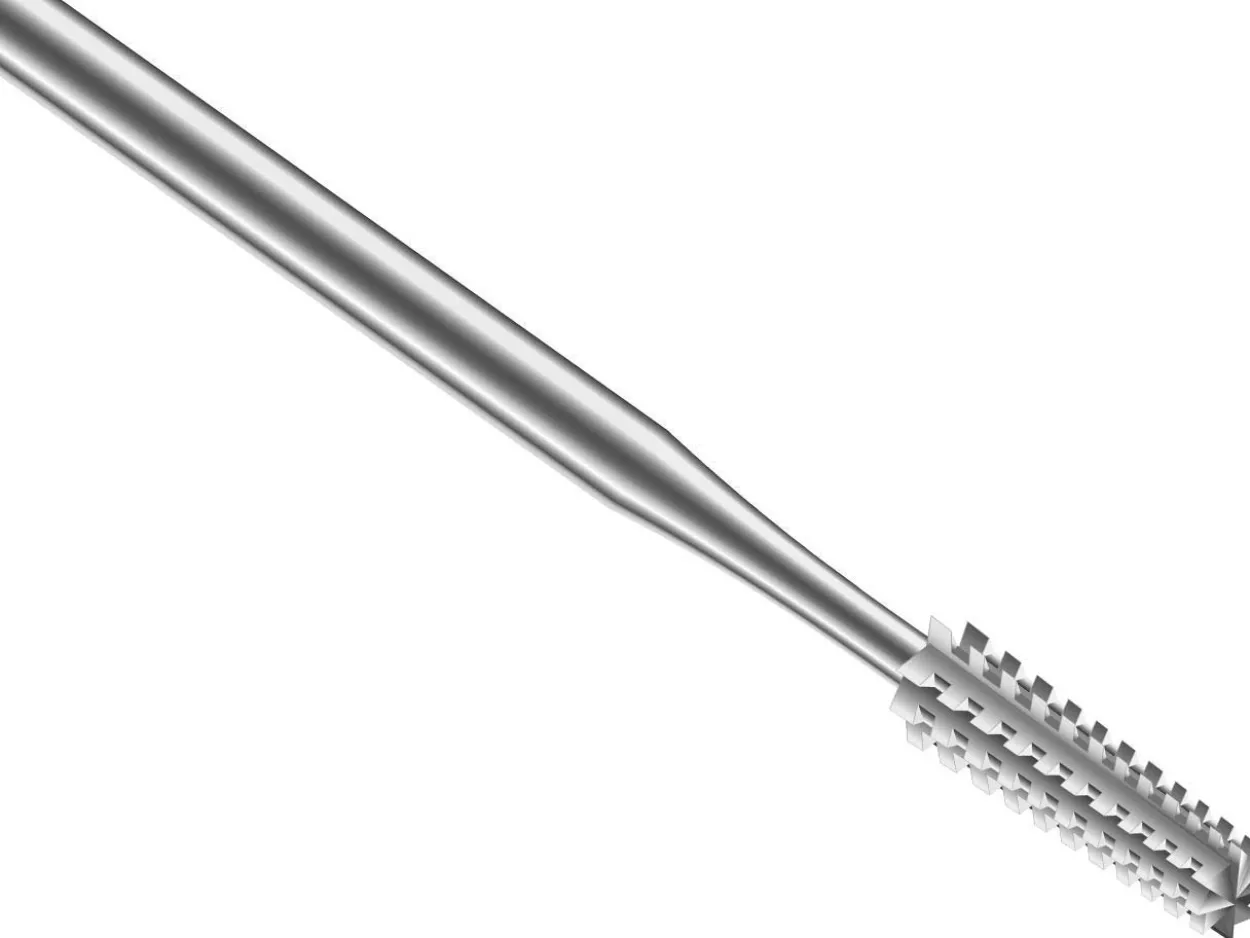

Busch Burr 38 Cone Cross Cut 0.9mm

Description

Established in 1905, Busch are the leading manufacturers of precision cut rotary accessories and pride themselves on maintaining high quality trend led developments.

This 38 Cone Cross Cut Burr has been produced from a single piece of hardened steel and is characterised by a stable design which provides a precise power cut and optimum concentricity.

The ‘Cross Cut’ teeth pattern means they produce a more aggressive cut ideal for removal of large amounts of material.

Measuring 0.9mm at its’ widest, it then tapers at a 5.5 degree angle to a narrower width (with a flat end), perfect for a stone to sit in a setting.

It has a full working head depth of 3.90mm.

It is designed to be used in conjunction with a pendant drill, hobby drill, micromotor or even a pin vice such asorto cut or grind away leaving a perfectly prepared setting.

Suitable to be used on metal, wax and plastics.

Each burr’s construction consists of a number of teeth/blades (inside of the cup) mounted onto a 2.34mm shank.

The shank fits into the collet/chuck of the drill, and when turned these teeth cut into and remove the surface being worked upon.

Quantity of material removed depends on pressure applied, use of ‘Burr Life lubricant’ () helps prolong the burrs cutting ability.

Catalogue Page Number p664
