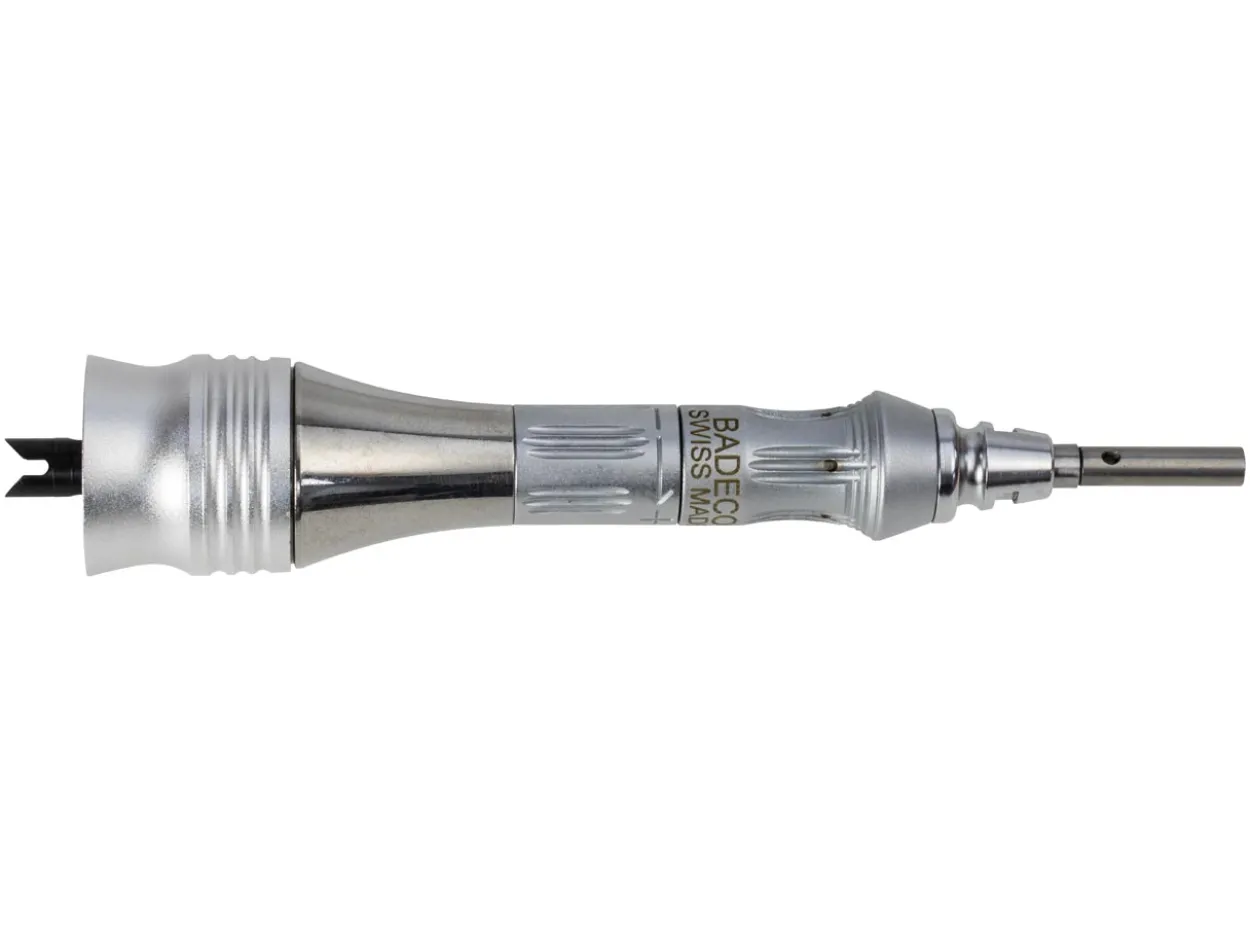

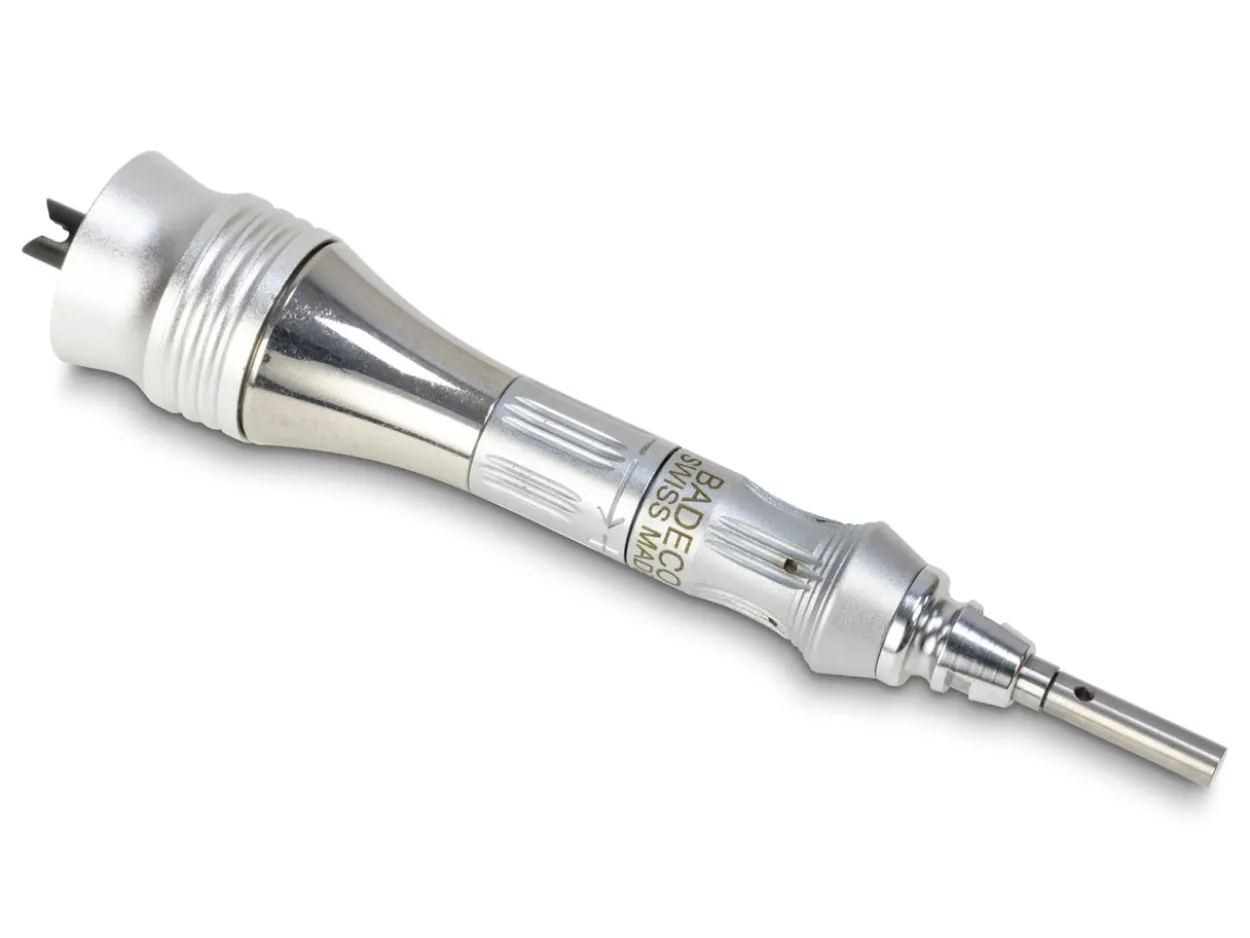

Badeco 318c Hammer Handpiece For Rivetting And Setting

Description

Badeco offers Swiss precision with superior quality, providing unmatched power and torque, ideal for detailed work on hard metals.

Compatible with MX1,and MX2 units, the hammer handpiece can only be used with strong micromotors.

The 318C Hammer Handpiece is an excellent tool for precise jewellery work, operating at speeds of 500 to 5,000 RPM. Its short, powerful up-and-down motion allows for effective flattening of rivets and creating channels in metal. With its strong, constant stroke, it significantly reduces the effort needed from the user, making it ideal for shaping and moving metal with precision. This robust handpiece can enhance your jewellery pieces by providing reliable power, precision and control.

The 318 series of handpieces comes in 3 different stroke strengths 318C, is the most powerful followed by 318SP, medium strength and the 318USP which is the slowest.

This particular handpiece has 2 levels of stroke, you can adjust the speed of the stroke by twisting the second silver section which has a + and – to indicate which way to twist.

The handpiece is supplied with a 4mm round unhardened mandrel that can be formed as you wish, it also has an automatic ejection system for broken tips (for Badeco tips only). For more Badeco mandrels see Badeco Hardened Silver Steel Tips in a set of 9 ().

Easy to use, only:

• Twist the silver part of the handpiece to release the mandrel or tool you’re using
• Unscrew the tool and replace it with your new tool or mandrel
• Twist the silver part again to tighten and secure the new tool in place

It is supplied with a pin and spanner to tighten or loosen further.

When unscrewed, you will observe that this filer handpiece has a widened skirt, allowing it to attach to a strong micromotor. In contrast, the Nano handpieces do not have this feature, clearly indicating which handpieces are compatible with each motor. These handpieces are not interchangeable.

The collar of each handpiece also has its name engraved to make it easier to identify which tool you are using.
