Orotig Evo X Laser Welder

Description

For the past 30 years, Orotig have designed and created state-of-the-art technological products of exceptional quality. They have continued to evolve; introducing compact lasers for use in the jewellery industry.

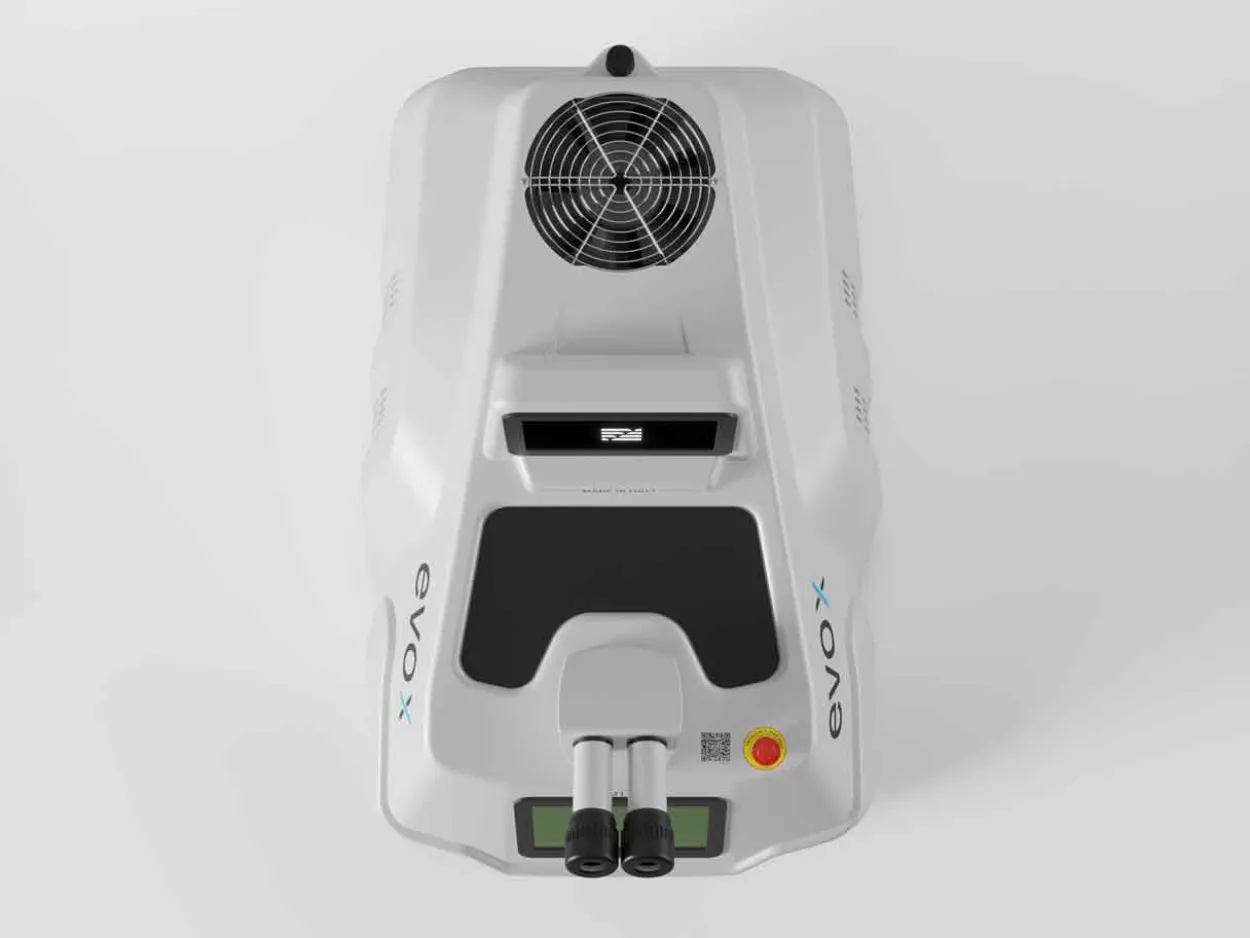

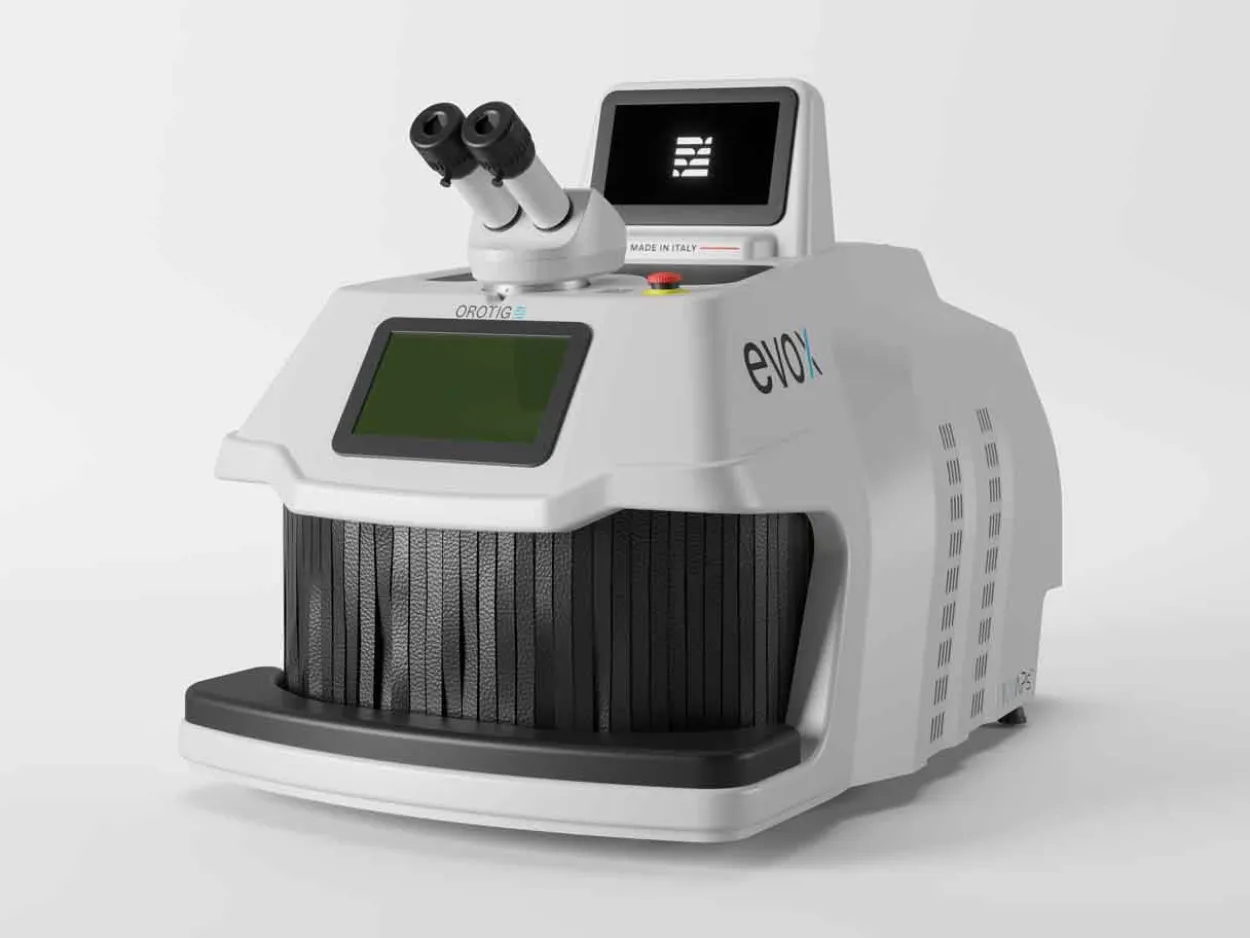

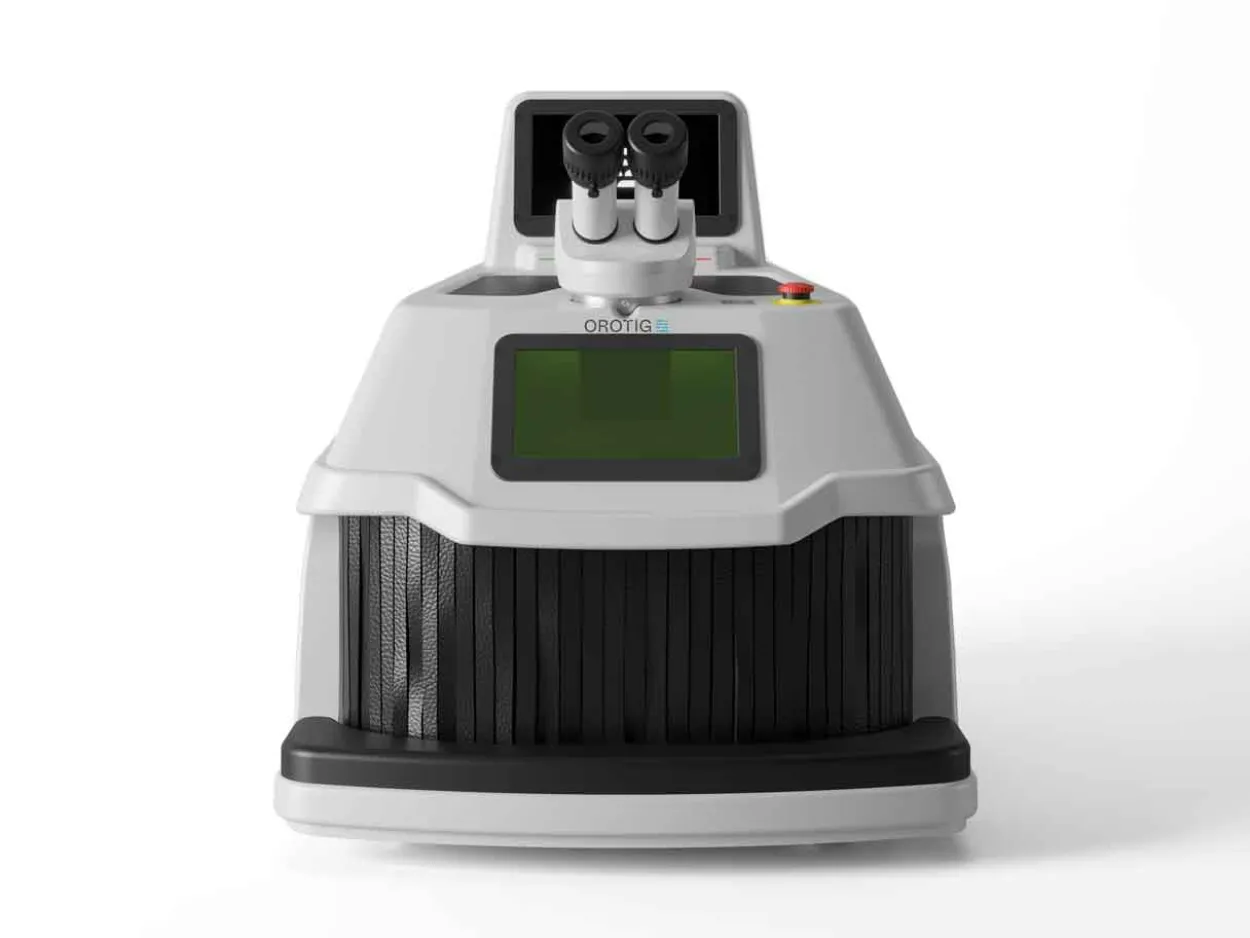

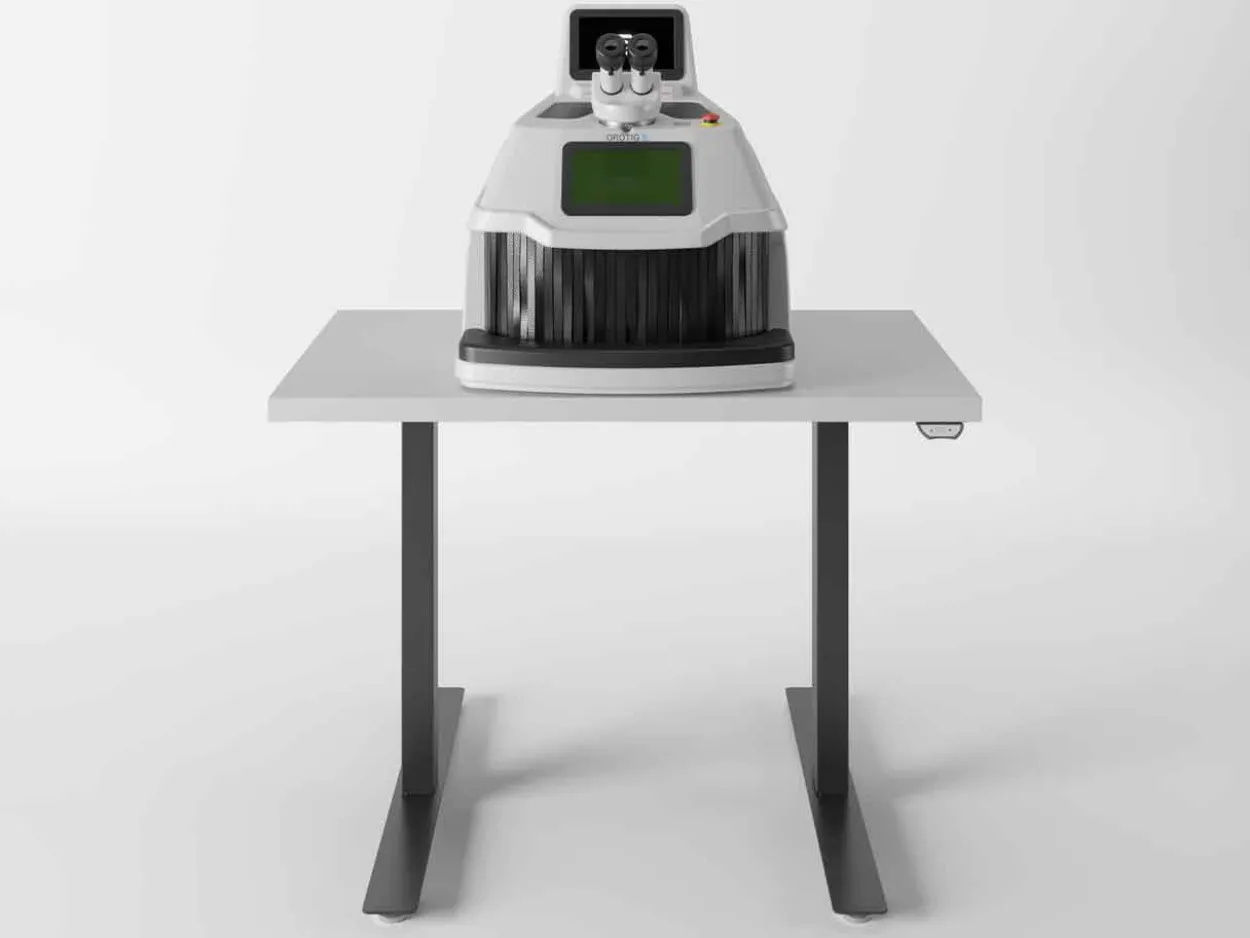

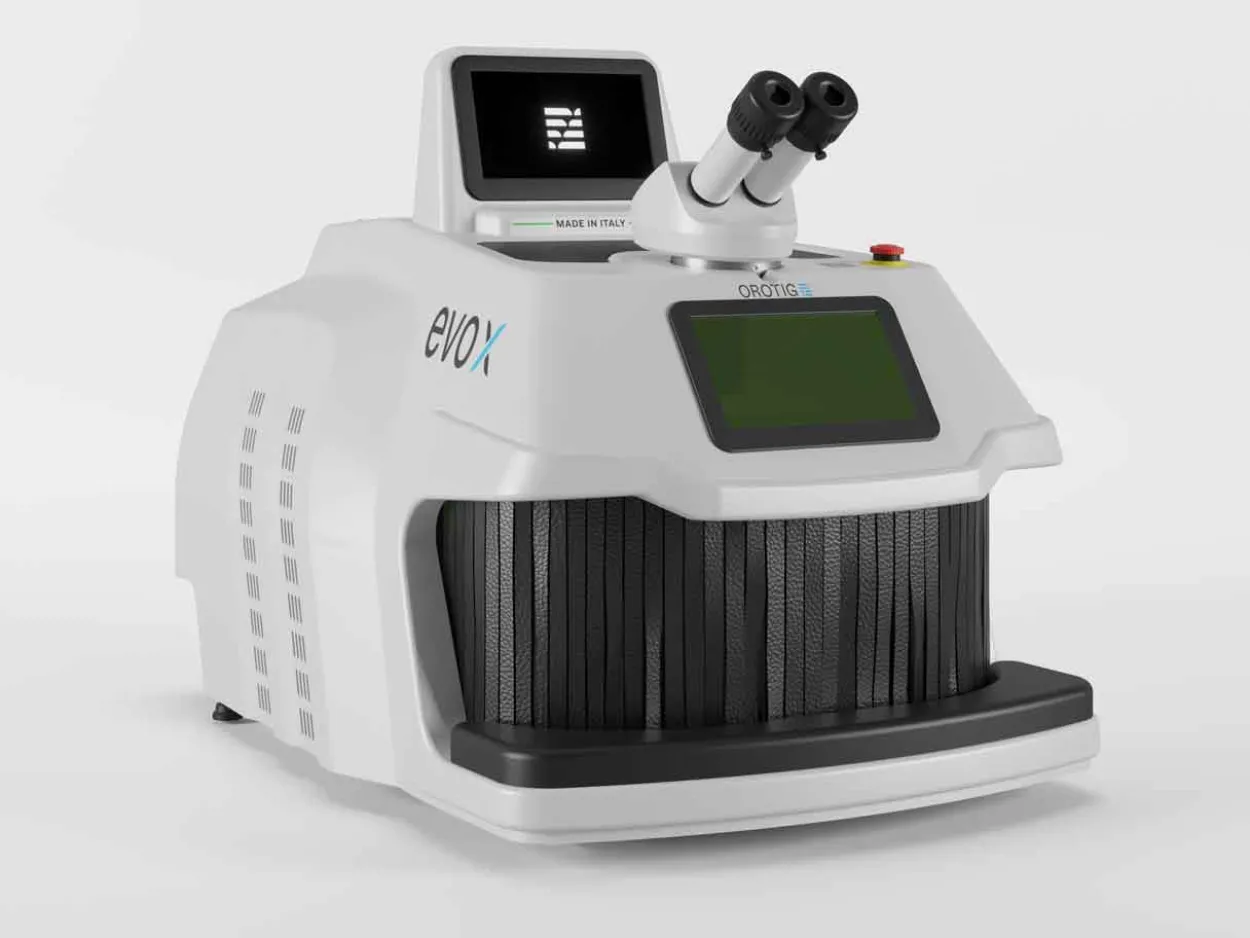

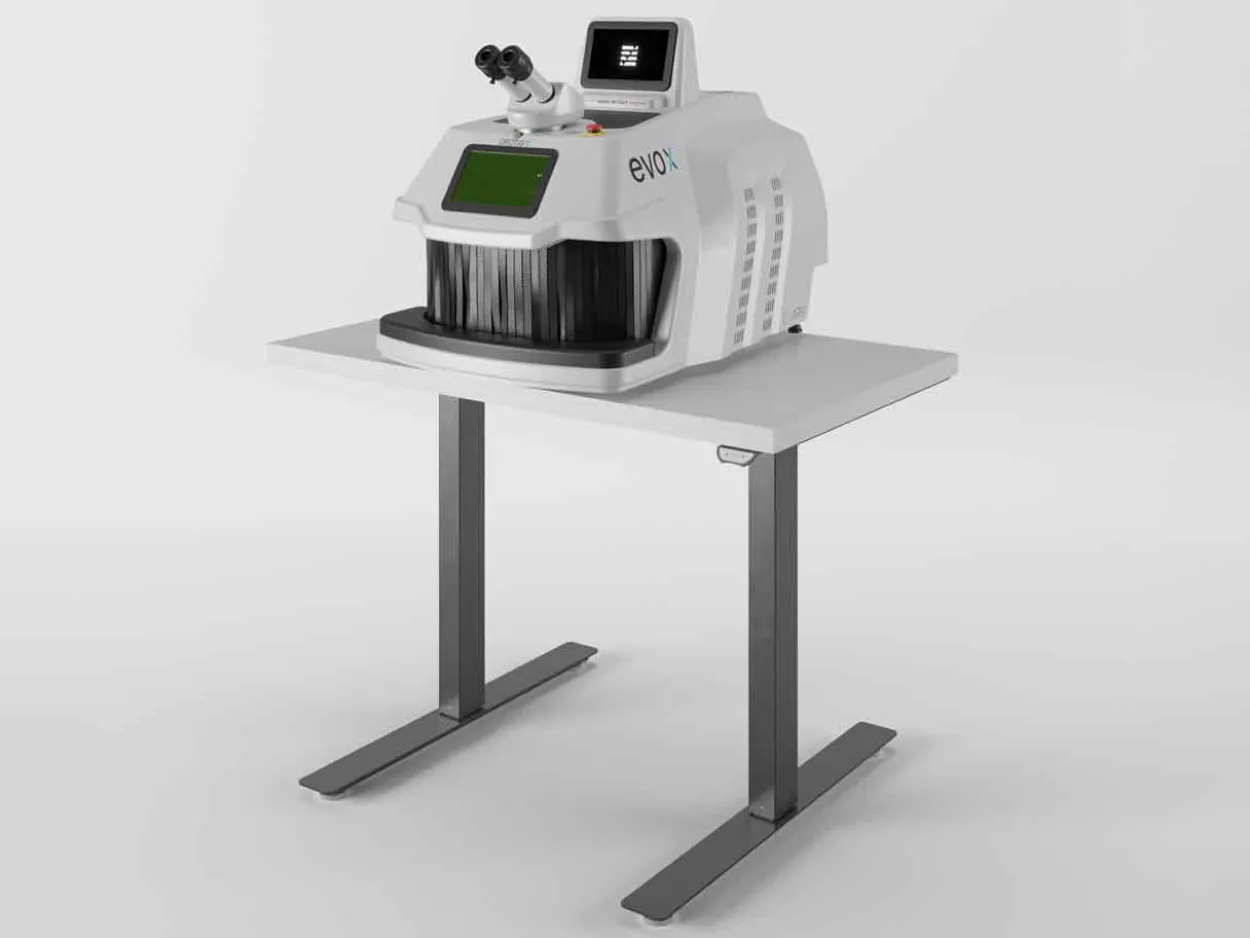

The Orotig Evo X is a powerful, compact desktop laser welding machine that uses a focused beam of laser light to join precious and non-precious metals together.

The laser welding process involves melting and fusing the edges of the metal to be joined together using a high-energy laser beam. The beam is directed onto the workpiece using a mirror or fibre-optic cable.

The Orotig Evo White laser welder has several advantages over traditional welding or soldering methods. Laser welders offer faster processing times, greater precision, and the ability to weld thin and delicate metals without damaging or warping the piece.

Because the laser is contained to a small weld spot, there is no need to remove stones near to the weld area. Many jobs can also be completed without a further polishing stage being needed, saving the user time and money.

The Orotig Evo X laser welder is compatible with all reflective metals, including silver, platinum, and gold. It utilizes SoftSpot technology to achieve clean and spatter-free welds on these materials, ensuring high precision and quality.

Laser welding offers the advantage of only needing to focus on the area being worked upon, even hard-to-reach areas can be welded with ease.

Equipped with an array of cutting-edge components to make the laser welding process simple and efficient, the Evo X offers the following features:

• Power Input: 225 J
• Peak Power: 9 kW
• Mean Power: 90 W
• Shots per Second: 0 to 40
• Spot Dimension: 0.1mm to 2.0mm
• Save custom parameters with ease
• Play videos, music, and display photos on screen
• Telemetry for remote assistance and updates
• Ergonomic armrest for maximum comfort whilst working
• Adjustment of laser functions via a rotary switch and touchscreen display
• Connection for gas and argon
• Low welding temperatures to preserve the laser
• Chamber lever to adjust spot size
• Easily work on precious and non-precious metals
• High quality components with extended life span
• Larger welding chamber
• Dynamic selection of parameters with unlimited memory to store presets
• Encoder in the welding chamber
• Dimmable LED lighting system to help prevent glare whilst working
• Mini jack to connect headphones
• Wi-Fi and Ethernet for internet connection, remote support and real-time diagnostics
• USB for software upgrades and file storage

The new 178mm (7″) generation touch screen display offers an intuitive user-friendly interface, with the ability to add additional presets.

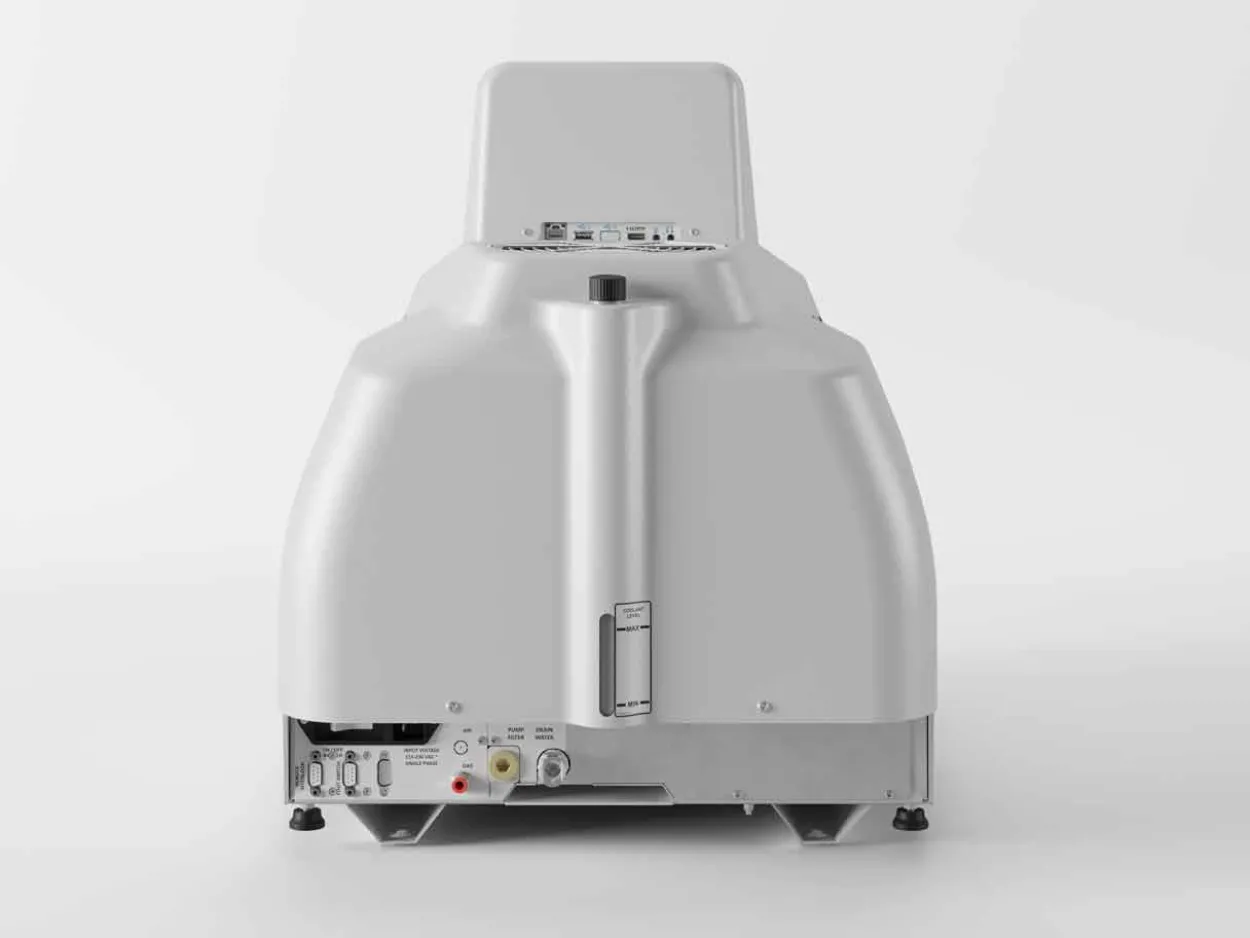

The external screen can be connected via HDMI for live playback, making it an ideal feature for training and tutoring purposes. Video tutorials are available via the QR code on the rear body of the machine.

A USB stick or local memory can be used to record and save photos and videos, enabling demonstration of the work process to customers.

Thanks to the powerful Leica 10x microscope, intricate details of the object being worked on can be viewed in crystal-clear detail. An optic configuration with mirrors on both the front and back of the laser crystal is designed to generate a powerful welding shot.

The Evo X offers a Dynamic choice of work program based on the metal being worked upon. With an inside chamber encoder, parameters can be set without disrupting the work process.

There is also a connector for Argon, Nitrogen or air. Adding Argon is only needed when welding Titanium as it shields against oxygen, which prevents it from oxidising and breaking down.

Air and nitrogen both work to cool down the piece being worked on, preventing the need to stop working to let the metal cool. This is extremely useful when working with silver, platinum, and red gold. The radiofrequency application helps to improve the delivery of air and argon.

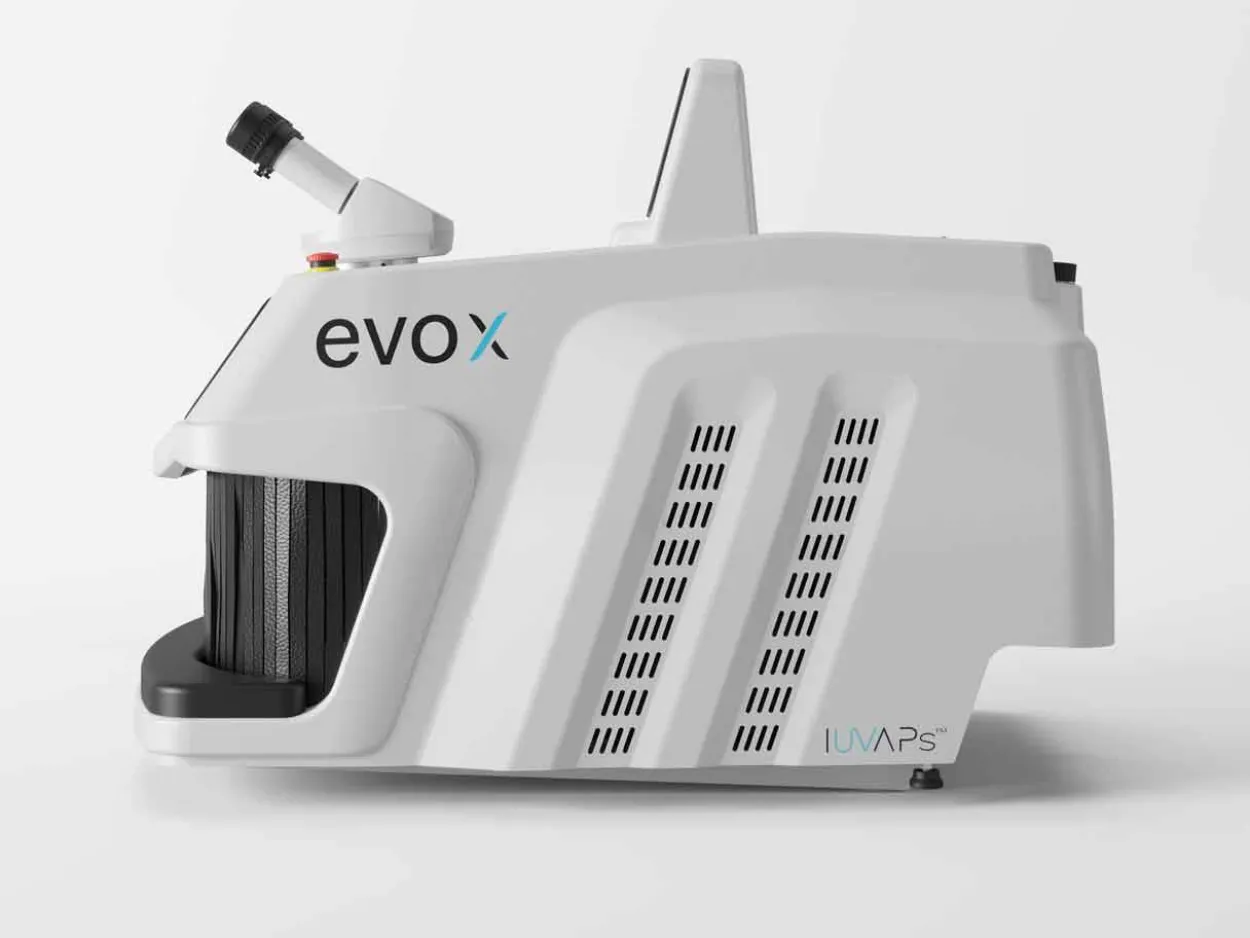

the Evo X also features an air purification system (IUVAPS) as standard. This purifies the air whilst in use, it also helps to sanitise the machine when on standby, killing 99.95% of bacteria and viruses.

The liquid and air cooling system helps dissipate heat generated during the welding process, ensuring the laser beam remains focused and accurate

The Evo X laser machine is supplied with:

• Gas conveyor terminal
• Stainless steel plate 40mm (L) x 30mm (W) with a thickness of 1.5 mm
• Protective glass slide
• LTS 2.5 and 3.0 hex wrenches
• Leica 10x Microscope
• Double-distilled water
• Funnel
• RL 3/8 – 4 FOX adapter/s for air and argon
• Focusing support plate
• USB pen drive
• Blue Rilsan pipe

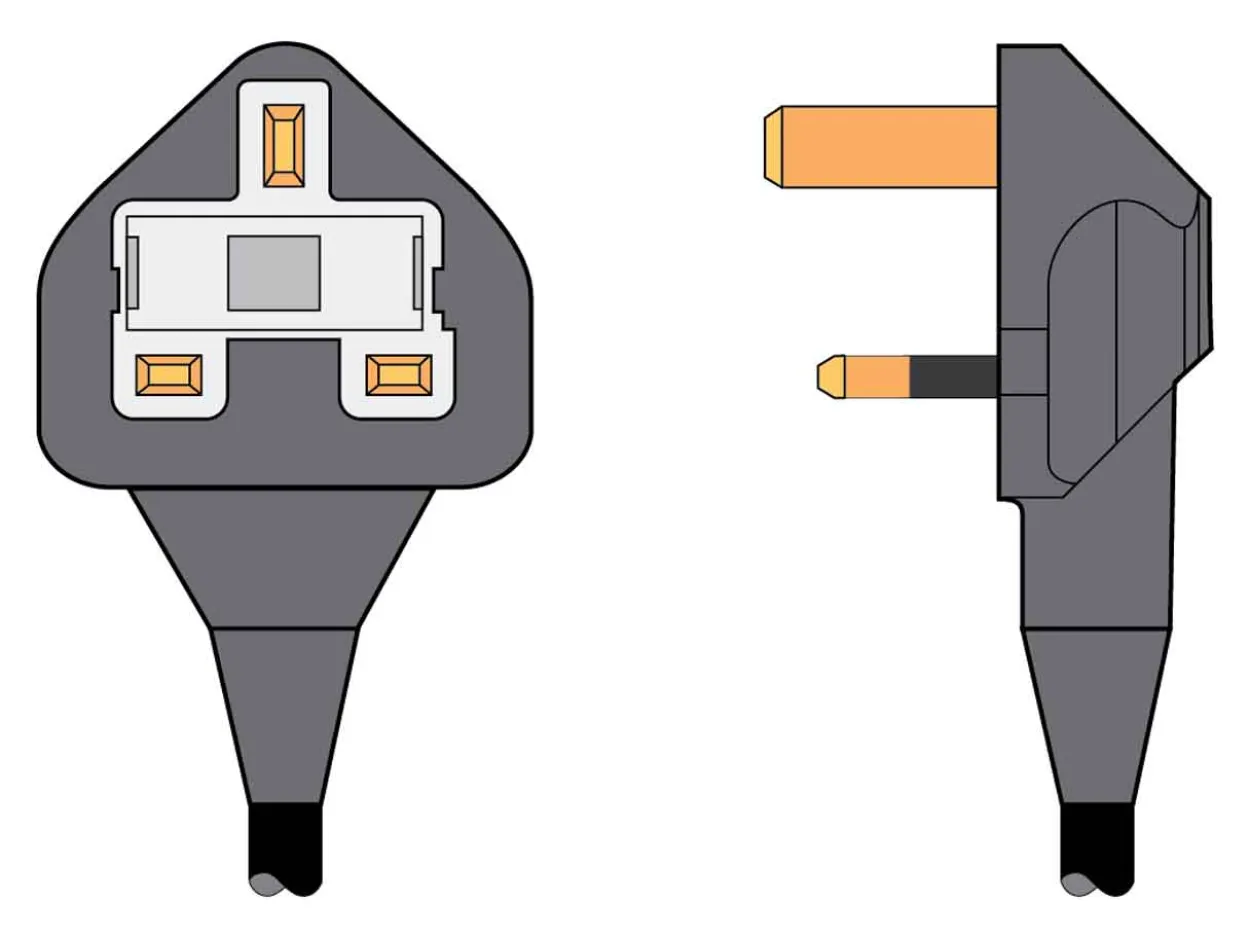

• Power cable with a 3-pin plug
• Control pedal
• Protection glass slide and glass slide-holder flange spacer
• Conical flange (normally already mounted in the machine) and 4 1/8 cylindrical male straight fitting
• Water drain quick coupling with pipe
• Aisi 302 stainless steel wire
• Interlock display key wiring

The machine is supplied with a 2 year manufacturer warranty.

Demonstrations of this product can be performed in-store, or virtually on request.

Technical information and after-sales support are both available.

For more information on technical support or to request a demonstration, please call 0345 100 1122.
