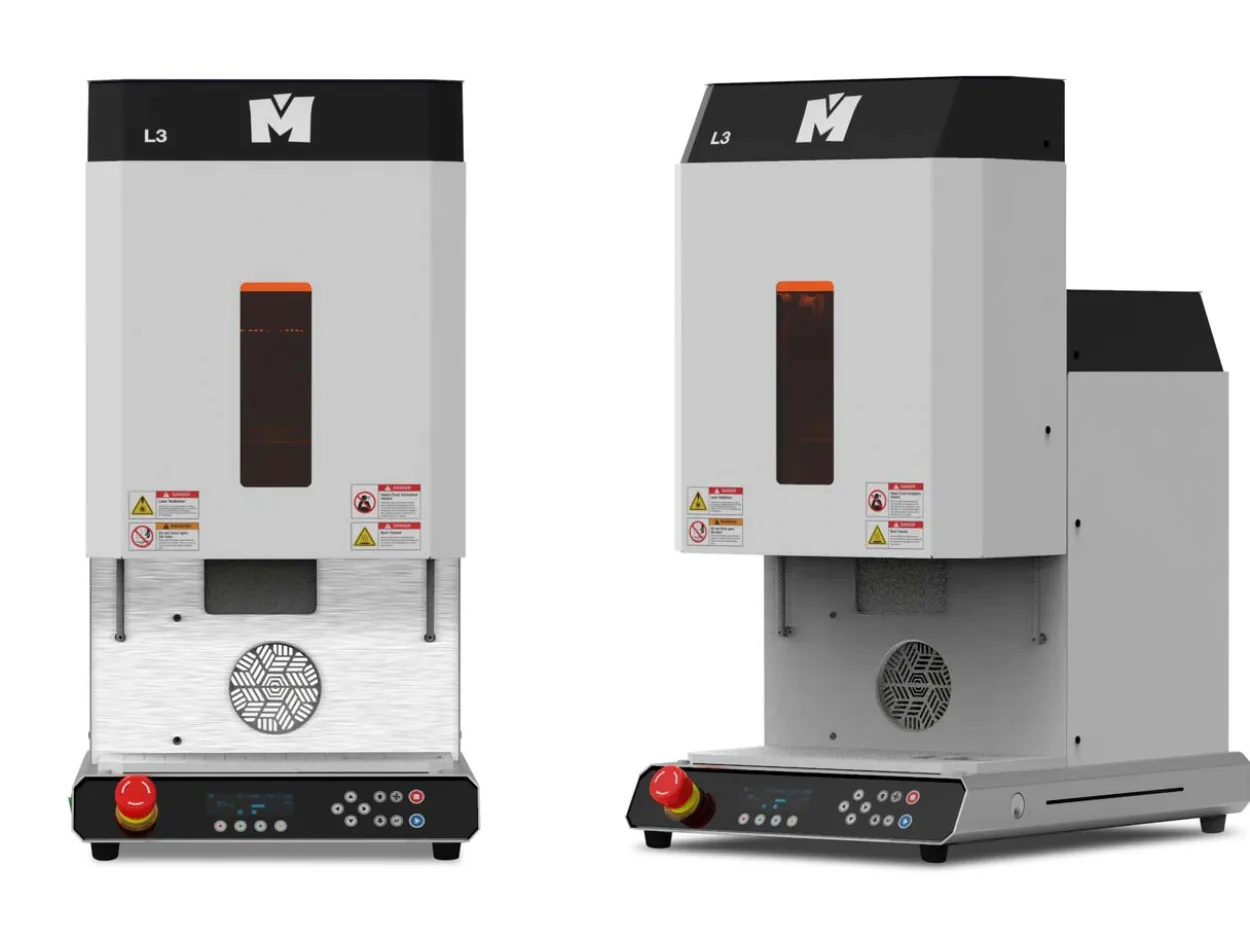

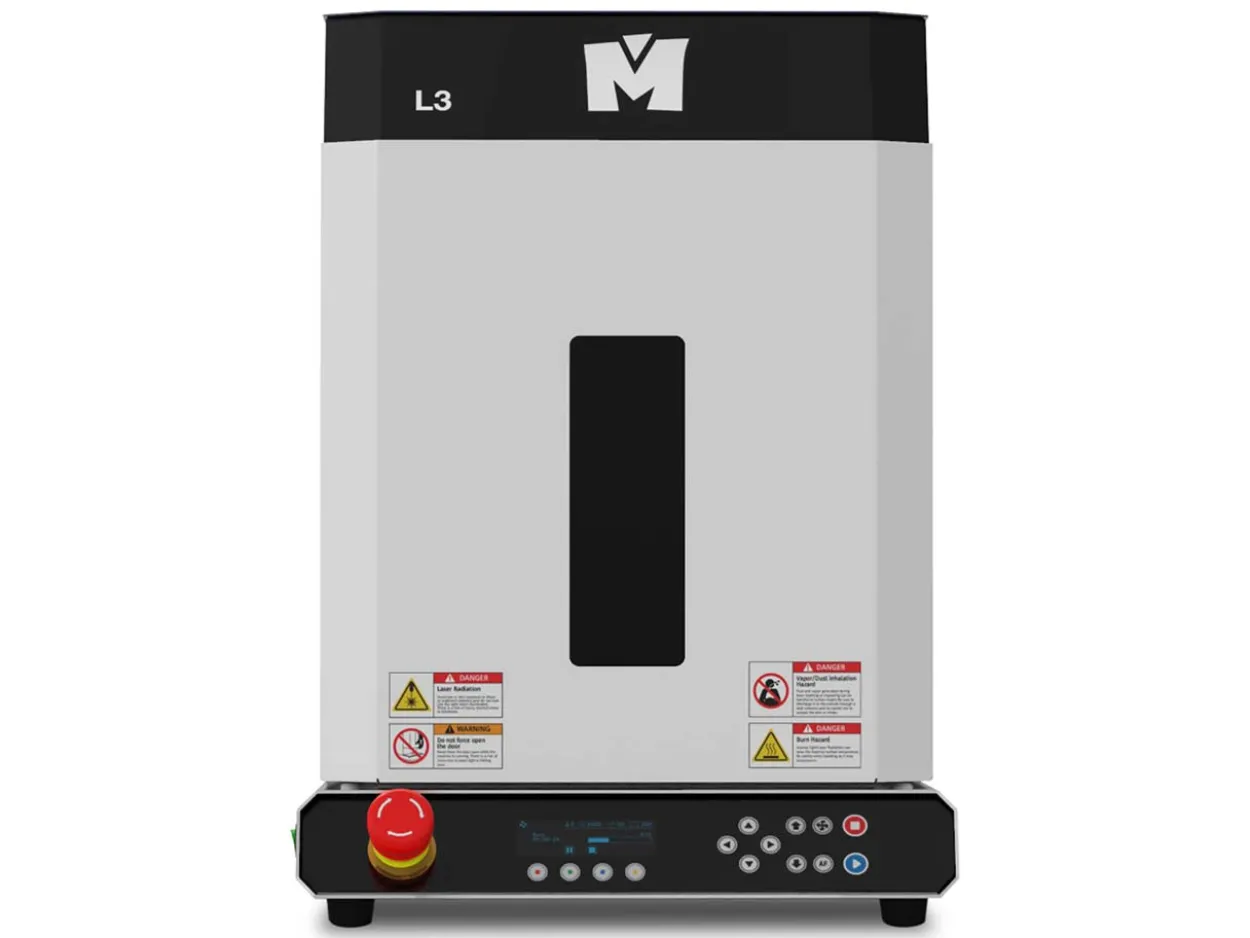

Magic L3 Laser Engraving And Cutting Machine 100w

Description

The Magic L3 100W laser machine is a multifunctional engraving and cutting system designed specifically for jewellery applications. Equipped with a powerful 100W laser source, the L3 100W provides fast, convenient, and highly precise engraving and cutting capabilities. Its high-performance operation and fine-tuned output control allow users to achieve accurate, reliable results quickly and efficiently.

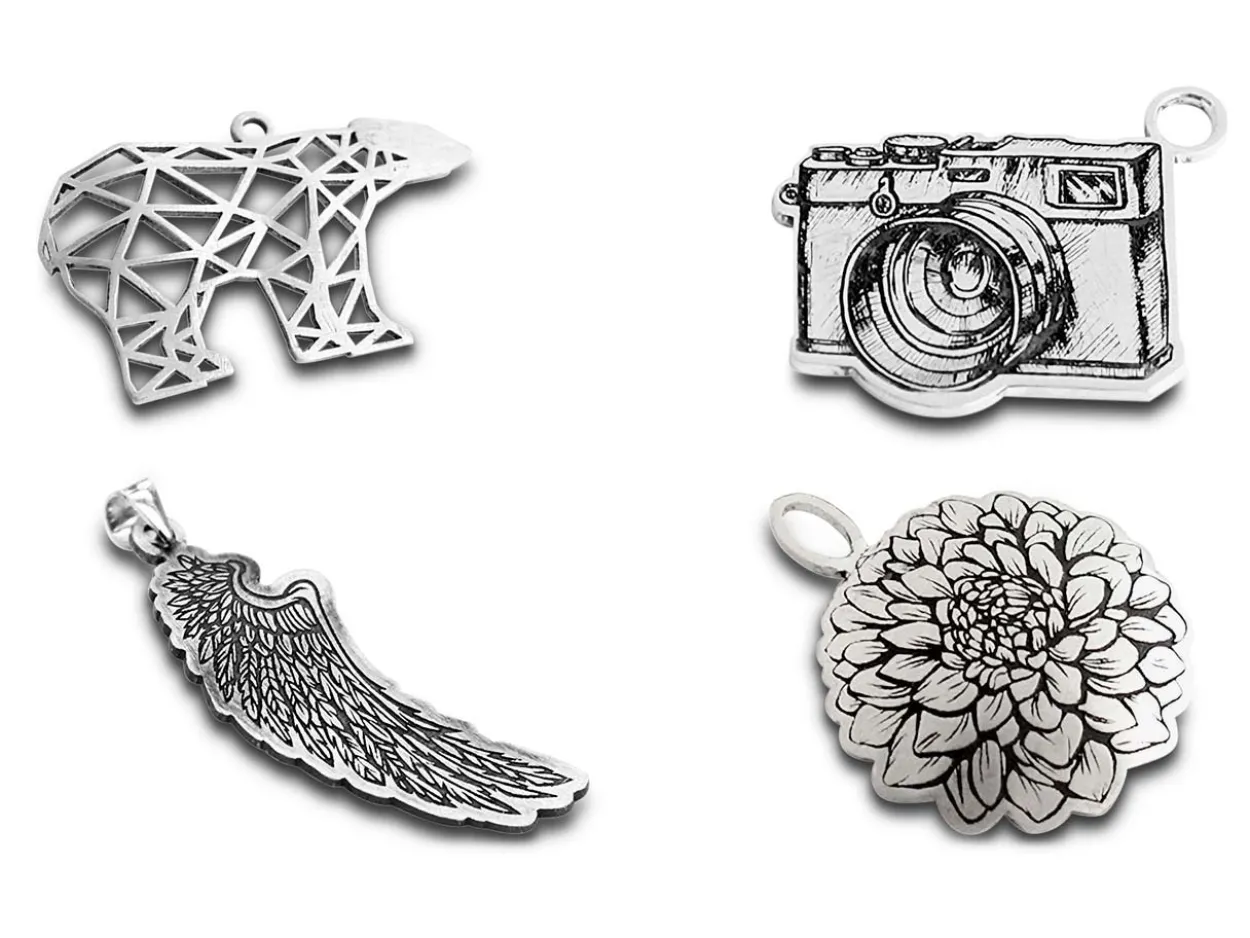

The machine can effortlessly produce shading, surface textures, deep engravings, and intricate cuts, making it ideal for creating detailed shapes and images on both flat and curved surfaces.

Suitable for a wide range of materials, the L3 can be used on gold, silver, platinum, copper, brass, aluminium, stainless steel, polymers, and ceramics.

Featuring a cableless docking station and precise laser output adjustment, the system delivers high-contrast black and white marking, deep engraving, and cutting functions. Users can easily switch between pendant and ring engraving modes, making the L3 an ideal solution for jewellery personalisation.

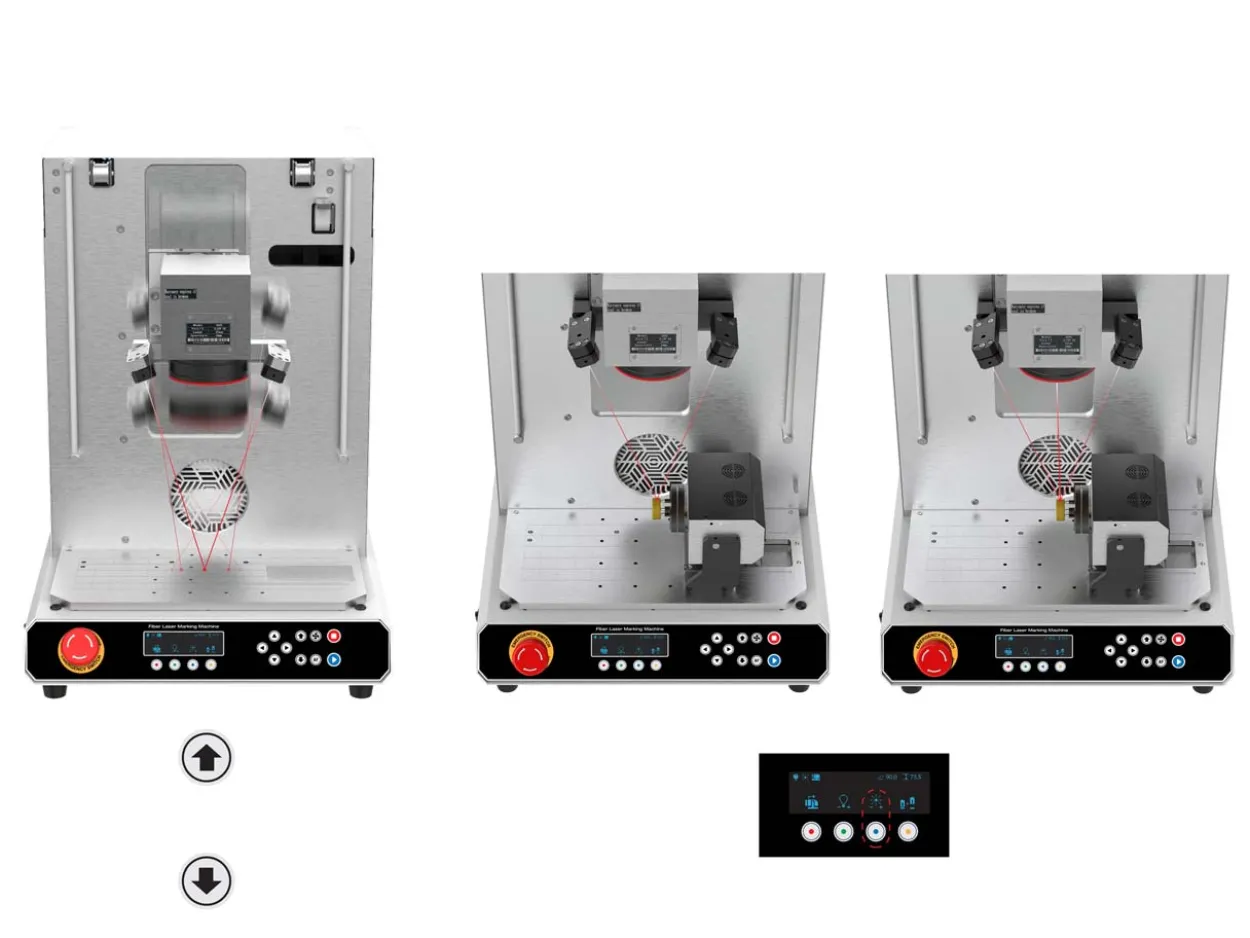

With a wide range of automated features, the L3 enables even novice users to create safe, fast, and error-free engravings or cuts. The machine supports multiple engraving techniques and effects, including hatching, contouring, and blackening. The Load-N-Go docking station automatically positions the rotary clamp and adjusts its angle according to the ring, simplifying setup and improving accuracy.

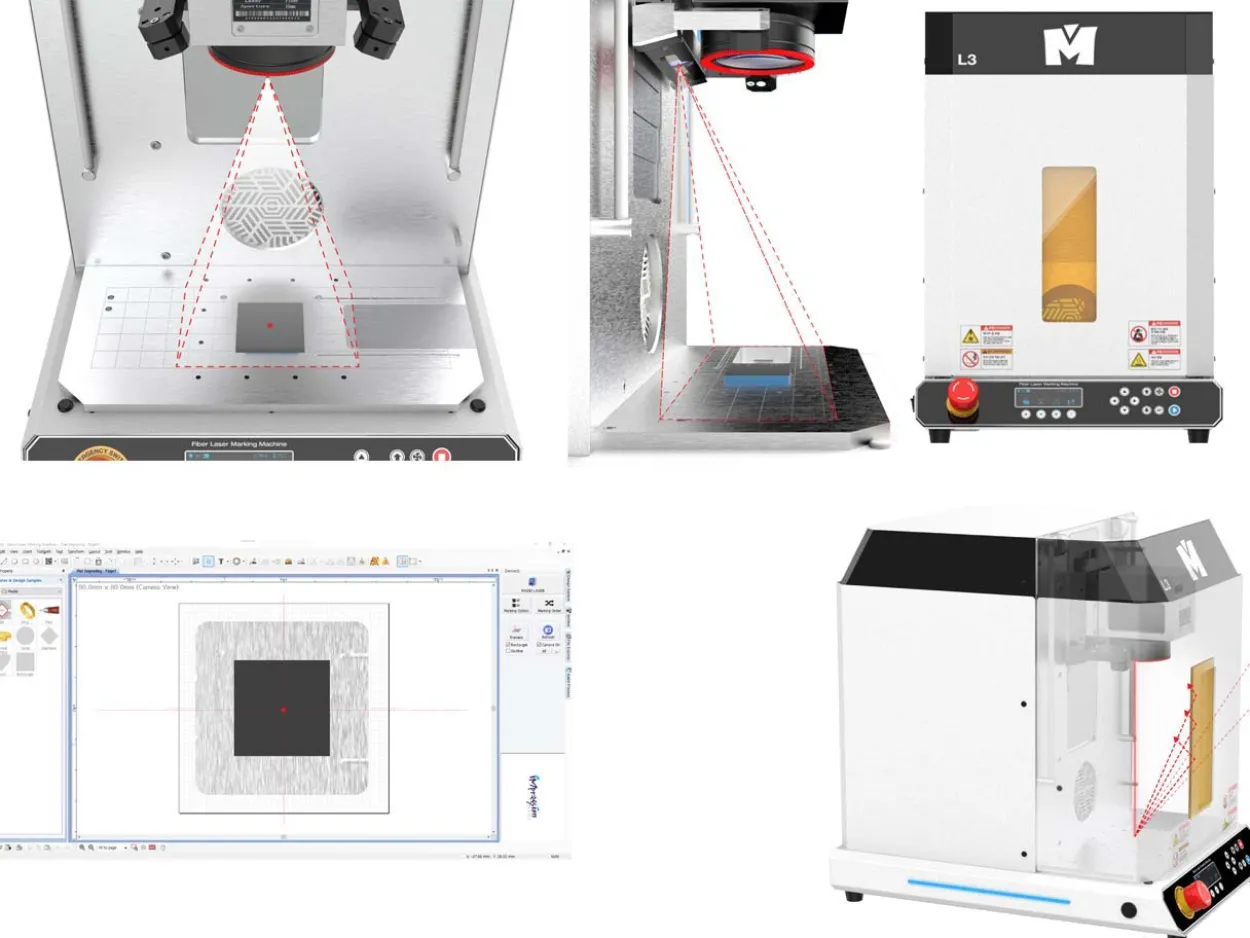

The system is compatible with MagicEngrave software, helping to reduce production times while providing greater design flexibility. Camera positioning gives users a clear view of the design placement on the material, while the integrated laser pointer identifies the exact engraving area for precise and reliable results.

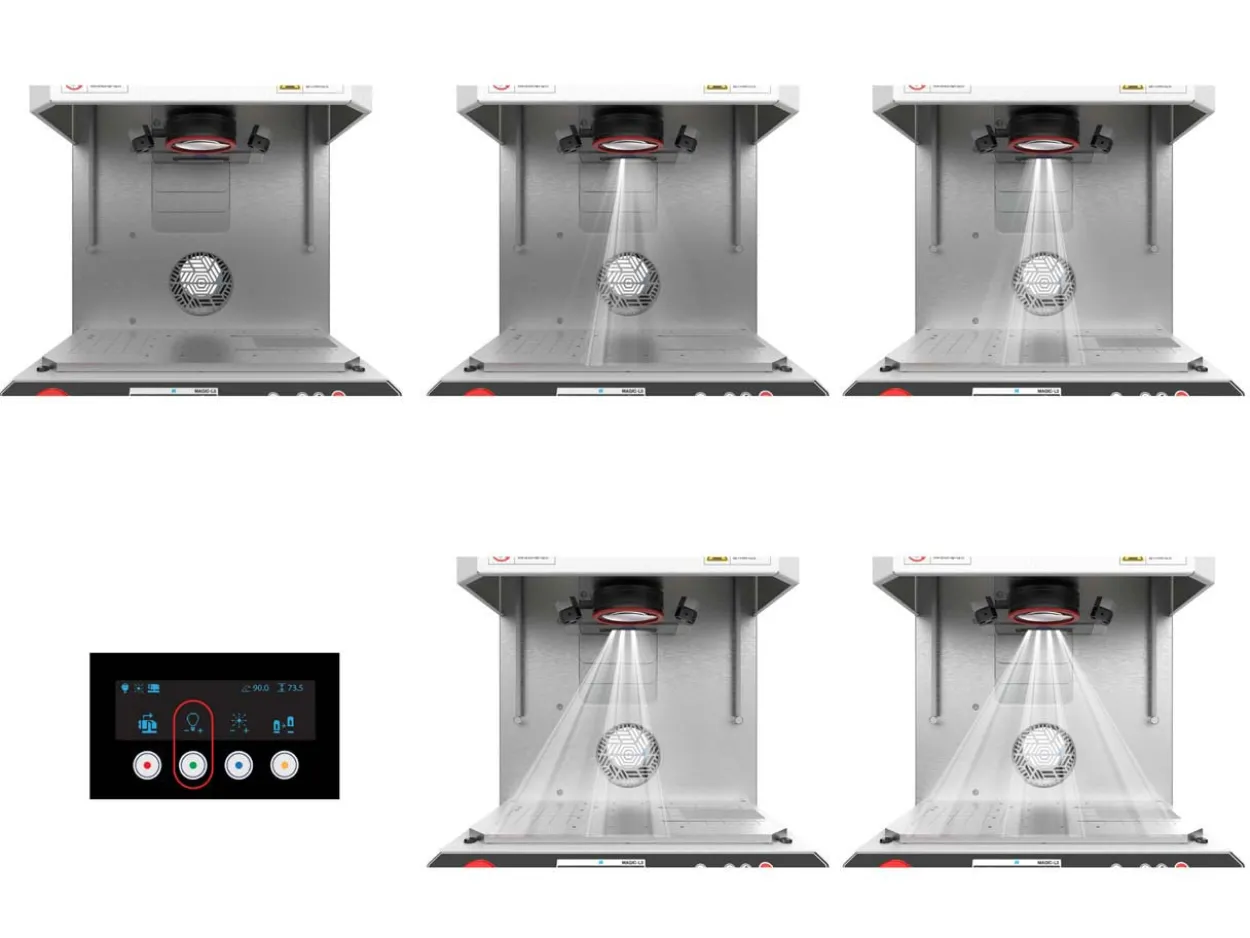

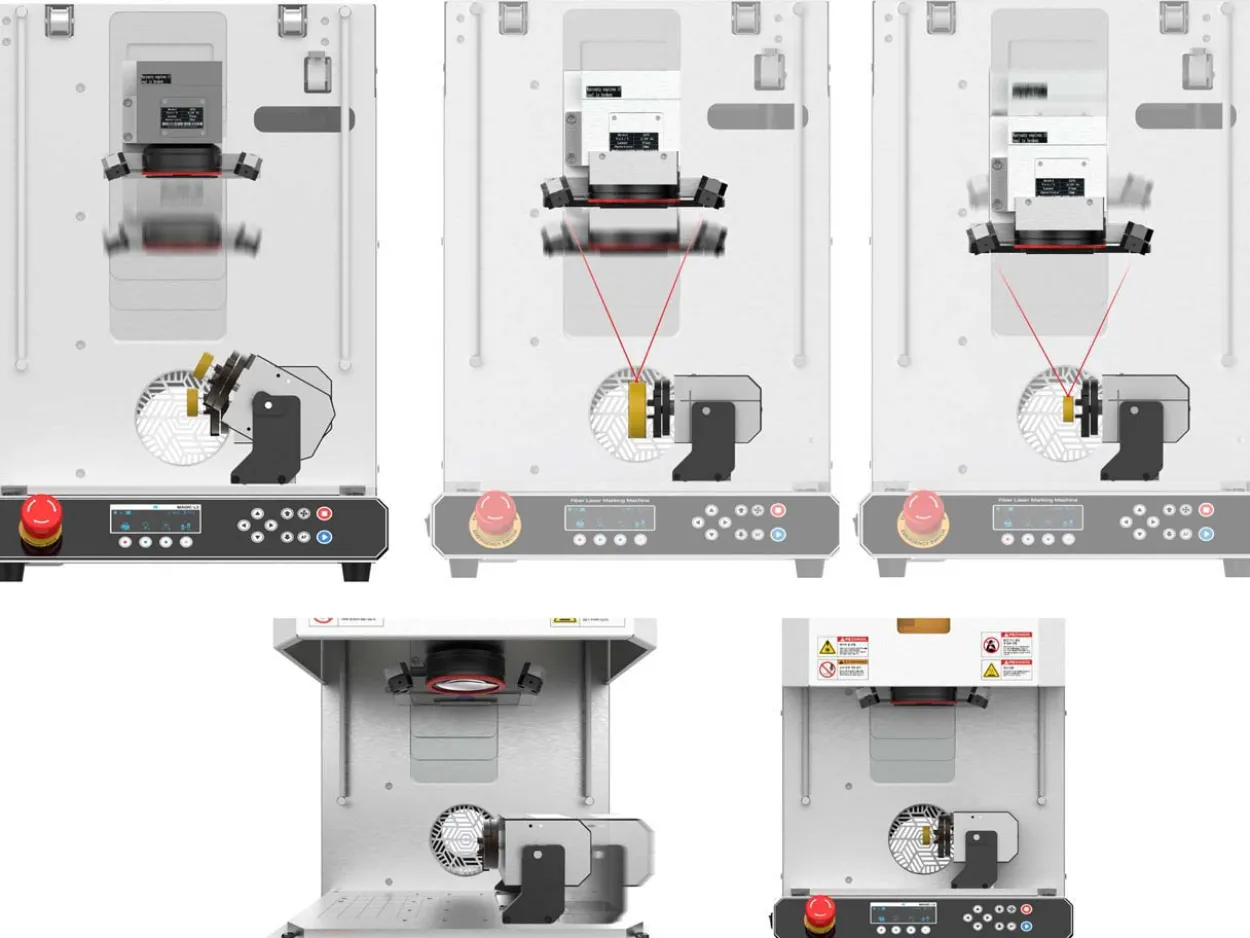

For added convenience, the laser focus is automatically adjusted for both interior and exterior ring engraving, eliminating the need for manual focus adjustments.

Available accessories for easy marking or cutting of complicated jewellery products:

• Magic L3 Medal/Pendent clamp Centre Fixing Type () – Holds unique shape materials in place
• Magic L3 Medal/Pendent clamp () – Holds unique shape materials in place
• Magic L3 Auto Tilt Rotary clamp () – Holds rings in place
• Magic L3 Honeycomb table () – Holds a thin plate in place for the cutting process
• Magic L3 L-type clamp () – Holds a material with slanted surface
• Magic L3 Anti-curling clamp () – Holds a thin plate in place for the cutting process

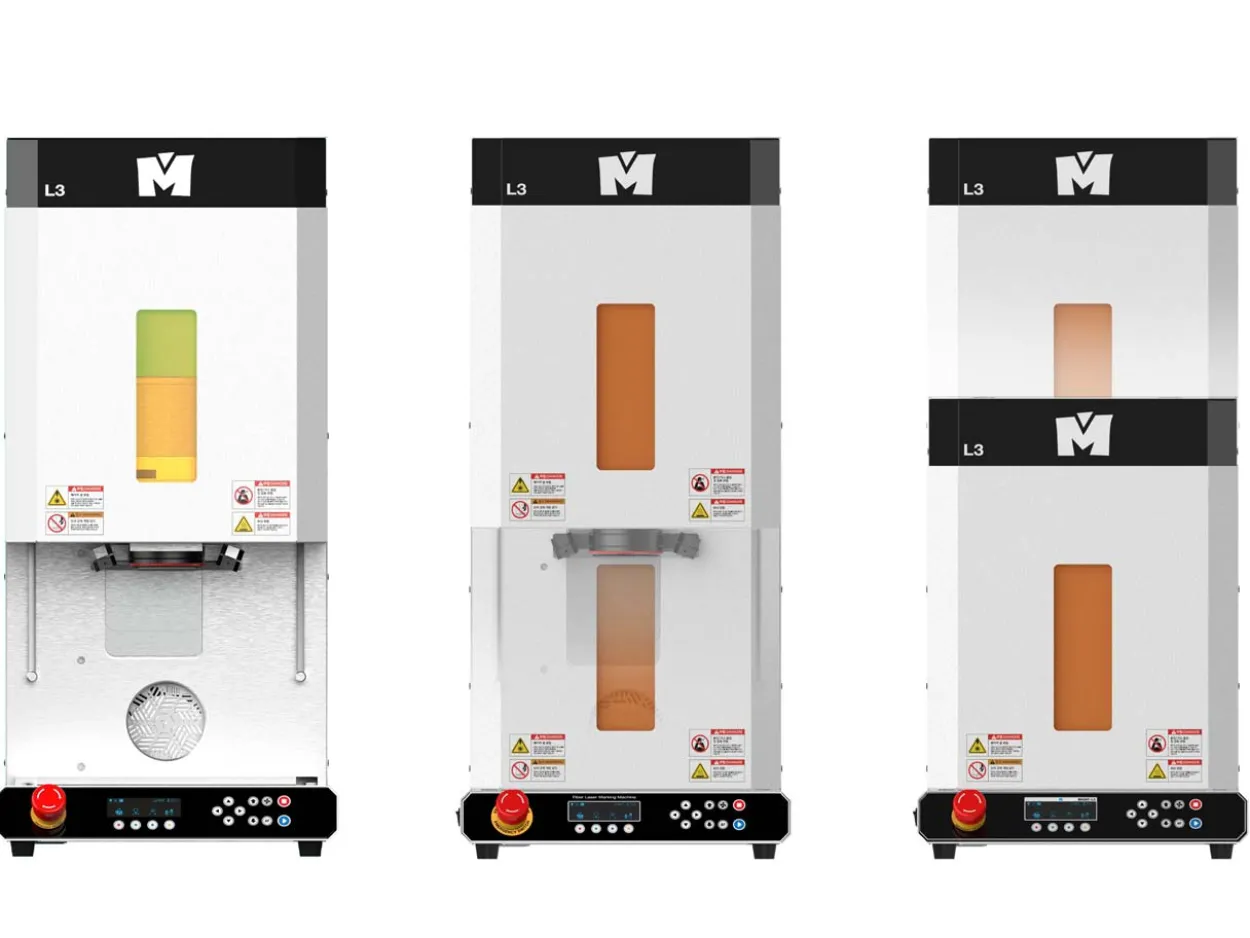

This unit features a automated safety door to ensure users are always protected against laser beams, dust and fumes that can be produced by the machine.

The door has a maximum opening height of 266mm (10.4″).

Safety sensors detect the status of the laser machine and protect users from unsafe situations.

An LCD screen shows the machines progress and displays the remaining time.

The machine is noiseless and compact, allowing it to be used anywhere, making it perfect for a desktop or work surface within a shop or studio.

The L3 laser marking machine can engrave on a maximum working area of 112mm W x 112mm L x 100mm H and cut up to 3mm thick material. The output beam diameter measures 7mm. The chamber of the unit measures 350 mm W x 100 mm H x 170 mm D.

To ensure that the laser remains accurately calibrated, it is important to avoid excessive movement or repositioning of the machine.

Additional features:

• Batch operation with various marking and cutting options
• Positioning of the engraving via an integrated camera with auto-focus with a maximum area of 80 x 80 mm
• Batch engraving on materials with multi-level heights
• Engraving on curved materials
• Letter-by-letter engraving for faster performance
• Easily accessed repeat button to trigger the same operation conveniently

Software is supplied with the Magic L3 Machine, allowing you to engrave text in various fonts and characters, patterns, symbols, shapes, logos and even photographs. It is also fully compatible with Microsoft Office and designs can be easily loaded from a USB drive.

Please note – dust blower is not supplied with the unit and should be purchased separately; please see Magic L3 Blower Set -which will help pushing the dust out of the extension hose and will help you cover a larger area.

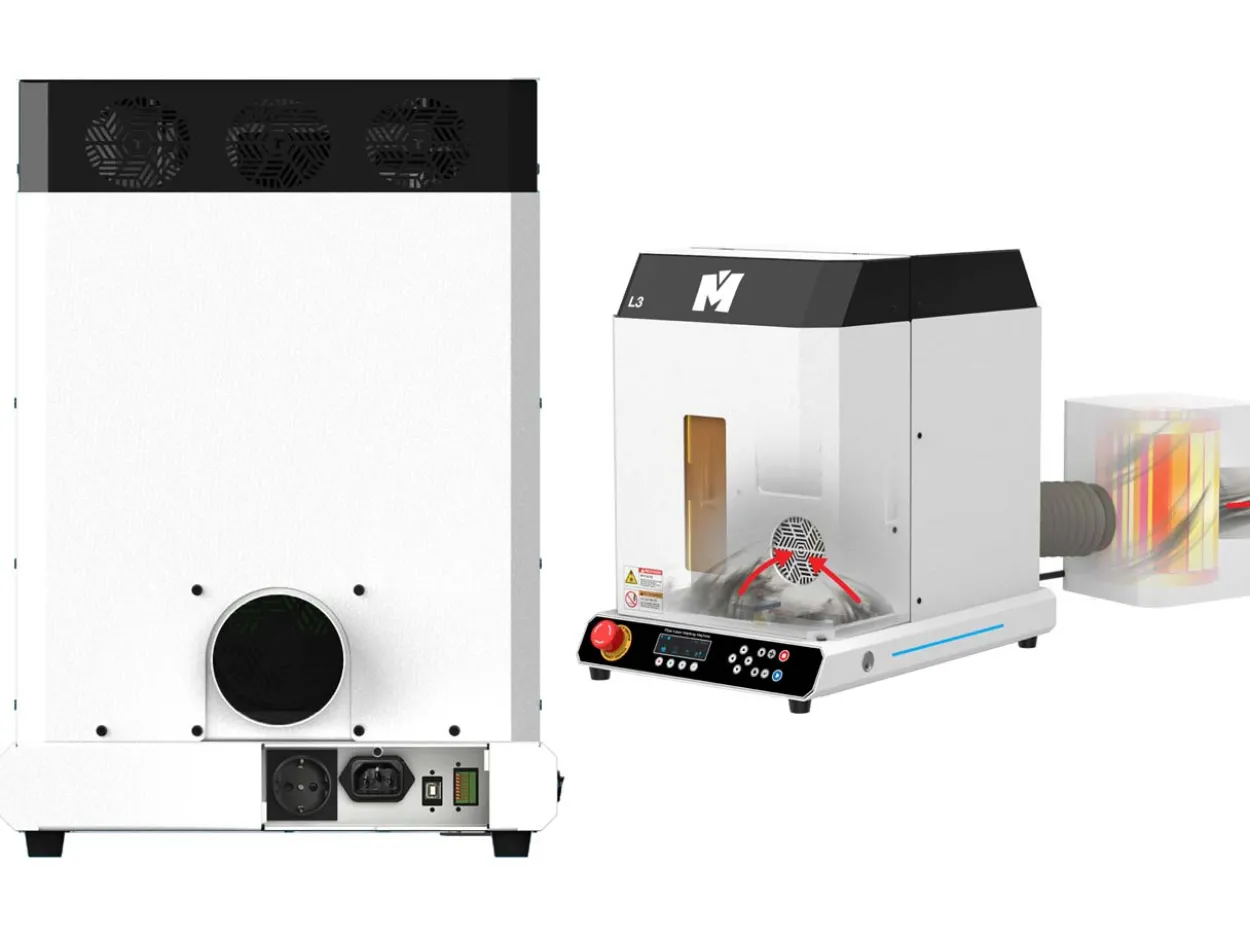

An extraction unit is advised when using the L3 machines. It is the customer’s responsibility to carry out risk assessments to ensure a safe working environment. For an extraction unit suitable for normal usage please see . For high usage an extraction unit designed for laser machines should be sourced.

The L3 laser machine is supplied with:

• MagicEngrave software
• Power cable
• USB cable

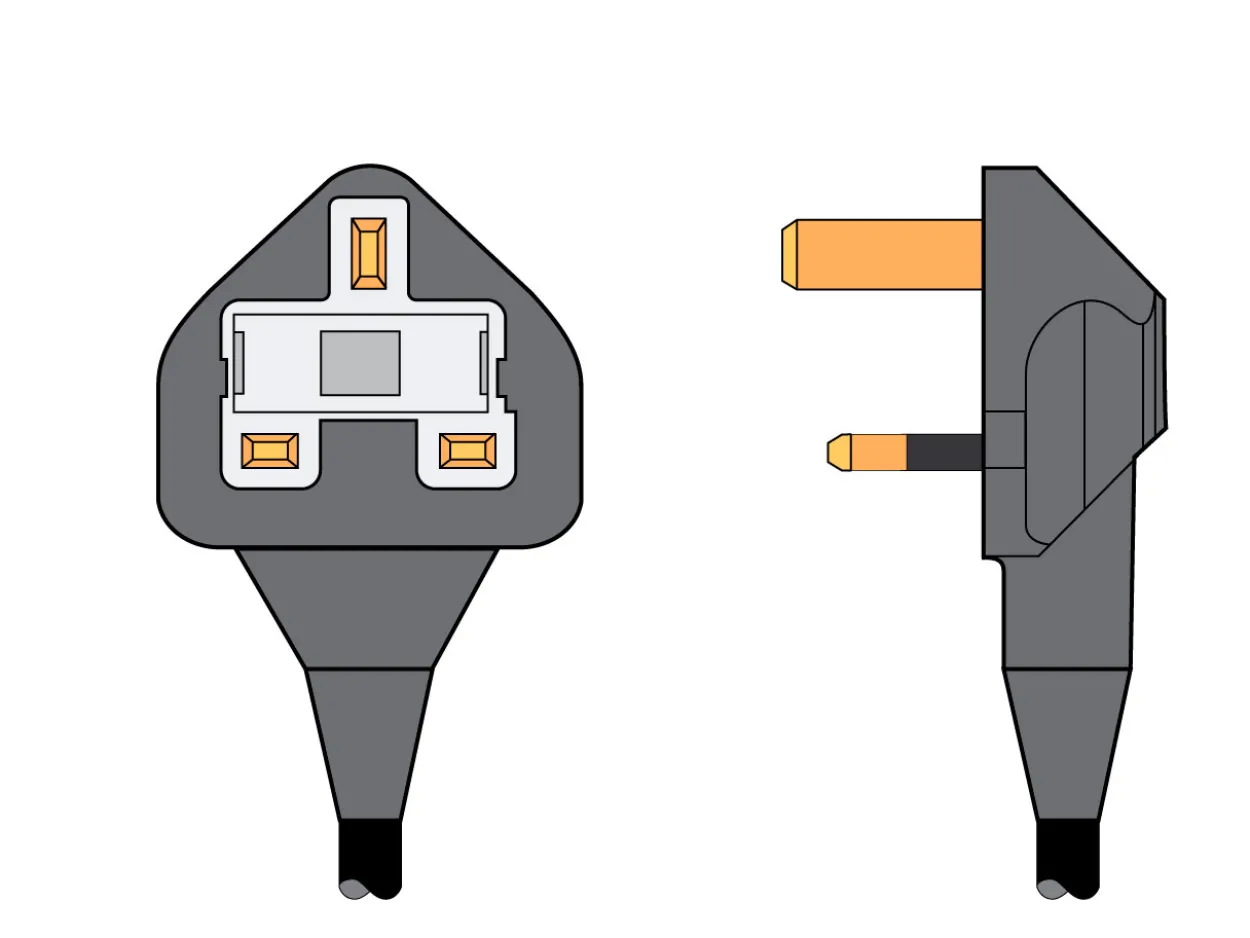

• 3 pin UK plug
• Instruction manual

To ensure the long life of the camera and prevent burnout, please avoid prolonged and excessive use.

Wipe lens periodically with a clean micro fibre cloth, metal debris build up could heat and crack the lens.

The machine is supplied with 2 year warranty and only 1 year warranty for the laser.

Demonstrations of this product can be performed in-store, or virtually on request.

Technical information and after-sales support are both available.

For more information on technical support or to request a demonstration, please call 0345 100 1122.
