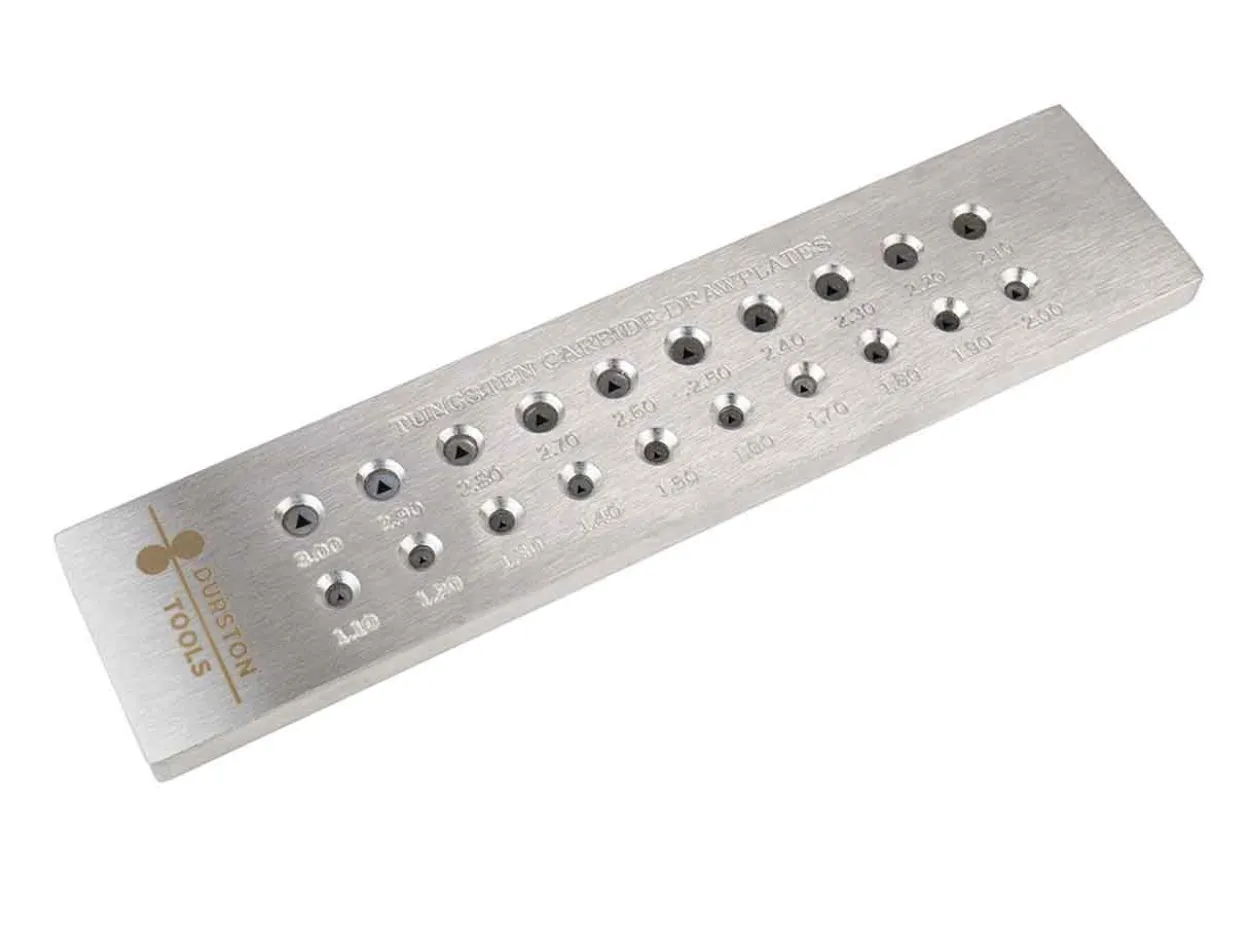

Durston Tungsten Carbide Drawplate, Triangle, 1.1mm – 3.0mm, 20 Hole

Description

This Durston Tungsten Carbide Triangle Drawplate is accurately machined from Tungsten Carbide to give it maximum strength and durability.

For use with a drawbench such asoror held in a vice, it is the perfect solution for drawing down or reshaping wire.

This drawplate features 20 triangular holes and has the ability to reduce wire from 1.1mm to 3.0mm in Diameter. It is also suitable for reshaping wire and creating tube or chenier from sheet metal.

It is important to ensure a sufficient point is created at the end of the wire or sheet so it can be draw through the holes easier with drawtongs.

You will need to anneal the wire between every other draw to keep it malleable.

The holes included in this drawplate measure:

• 1.10mm, 1.20mm, 1.30mm, 1.40mm, 1.50mm, 1.60mm, 1.70mm, 1.60mm, 1.70mm, 1.80mm, 1.90mm,
• 2.0mm, 2.10mm, 2.20mm, 2.30mm, 2.40mm, 2.50mm, 2.60mm,2.70mm, 2.80mm, 2.90mm, 3.0mm.

Other Durston Tungsten Carbide drawplates are available;

• Oval 3.1mm – 5.0mm:
• Rectangle 0.5mm – 3.0mm: 997 D100
• Round 0.26mm – 2.8mm: 997 D101
• Round 0.26mm – 4.1mm: 997 D102
• Round 2.7mm – 5.0mm: 997 D103
• Round 5.1mm – 7.0mm: 997 D104
• Semi-Circle 0.5mm – 3.0mm: 997 D105
• Square 0.5mm – 3.0mm: 997 D106

Manufacturing part number: 2065

Dimensions;

• Length: 205mm (8.07″)
• Width: 56mm (2.20″)
• Height: 7mm (0.27″)
• Weight: 600g (1.3lb)

This product comes with a 1 year guarantee
