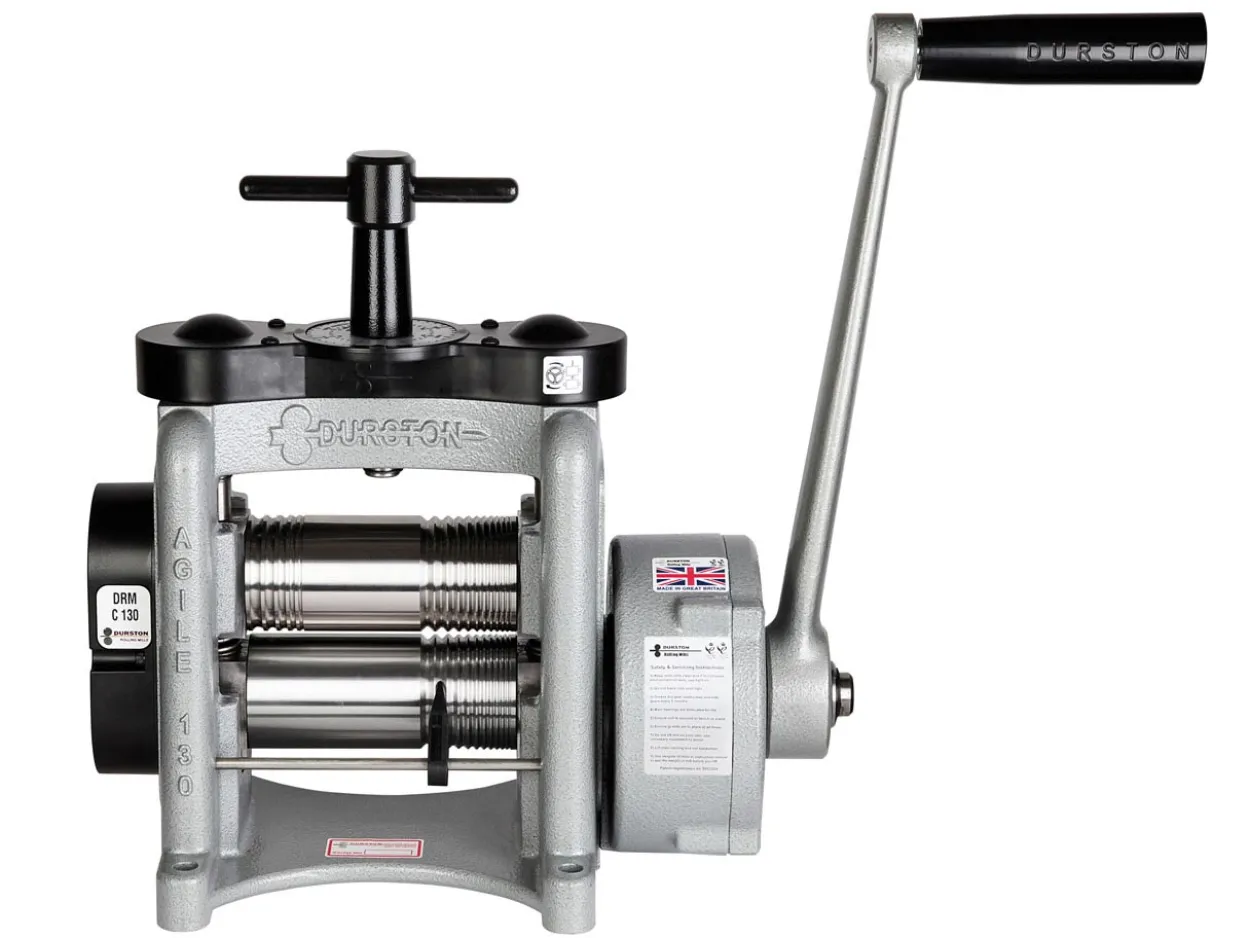

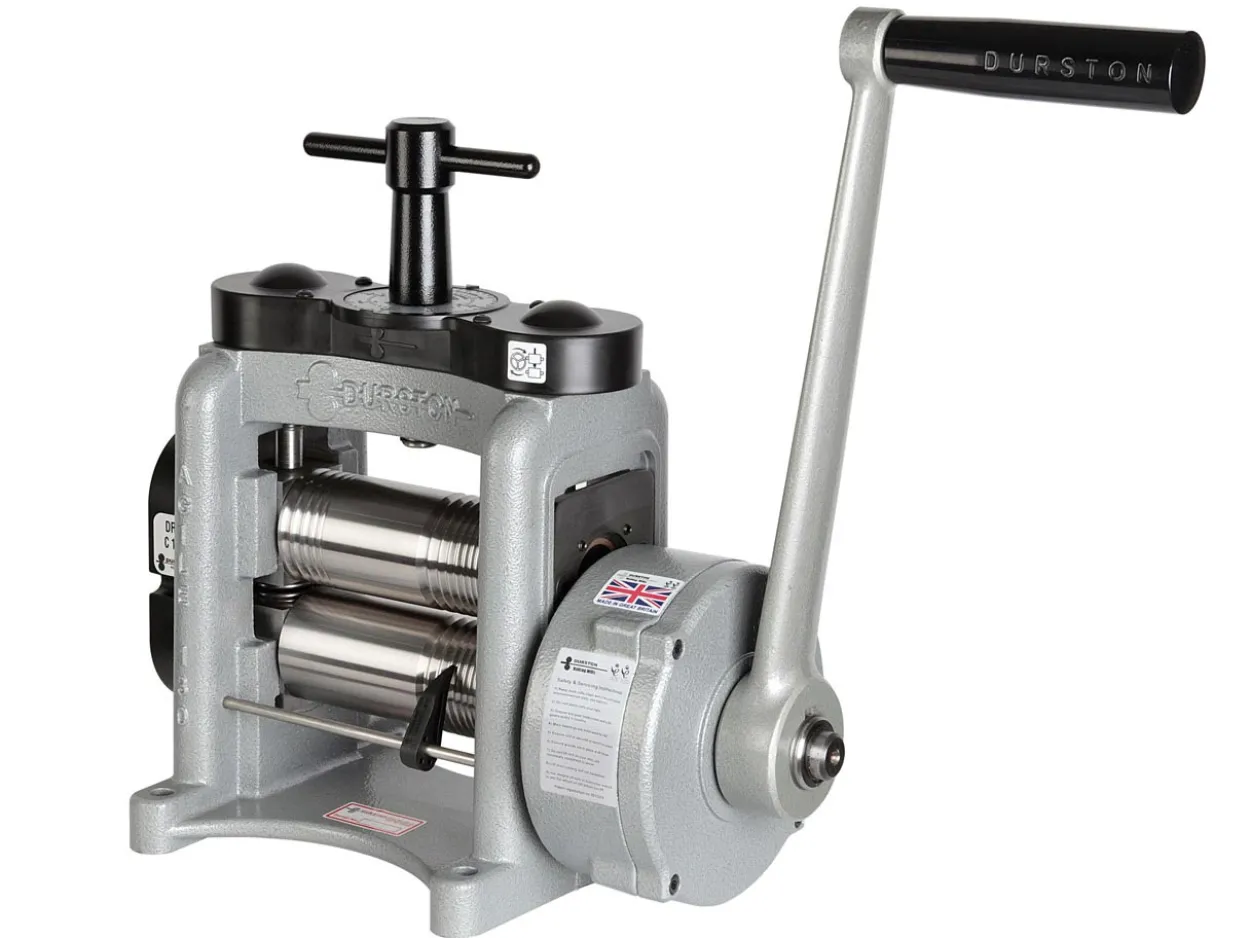

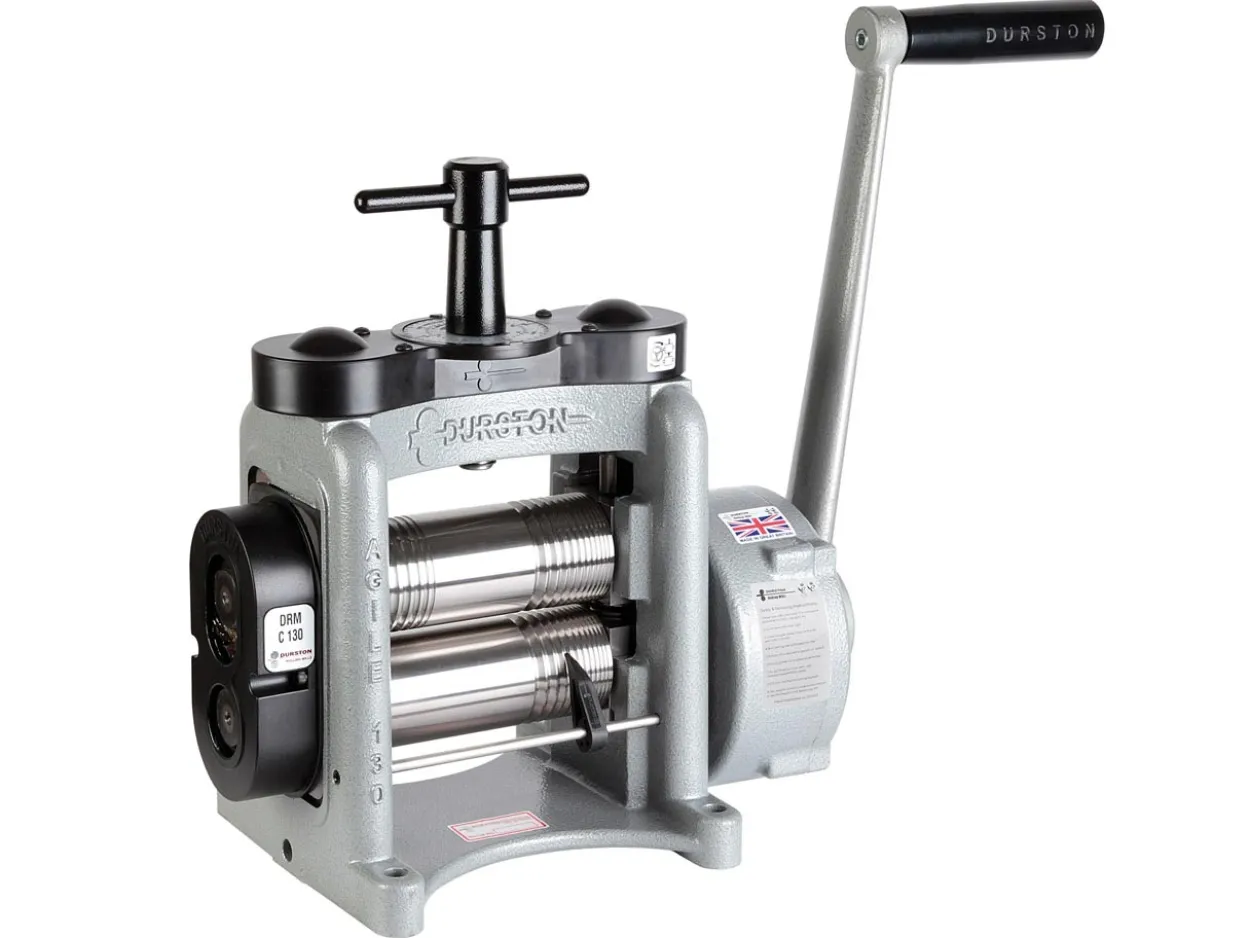

Durston Agile C130 Combination Rolling Mill

Description

The Durston Agile C130 Rolling Mill gives a new take on the original design, featuring a slimline frame and lightweight design creating a more affordable machine without compromising on the quality.

A traditional T-bar replaces the usual heavy cast hand wheel.

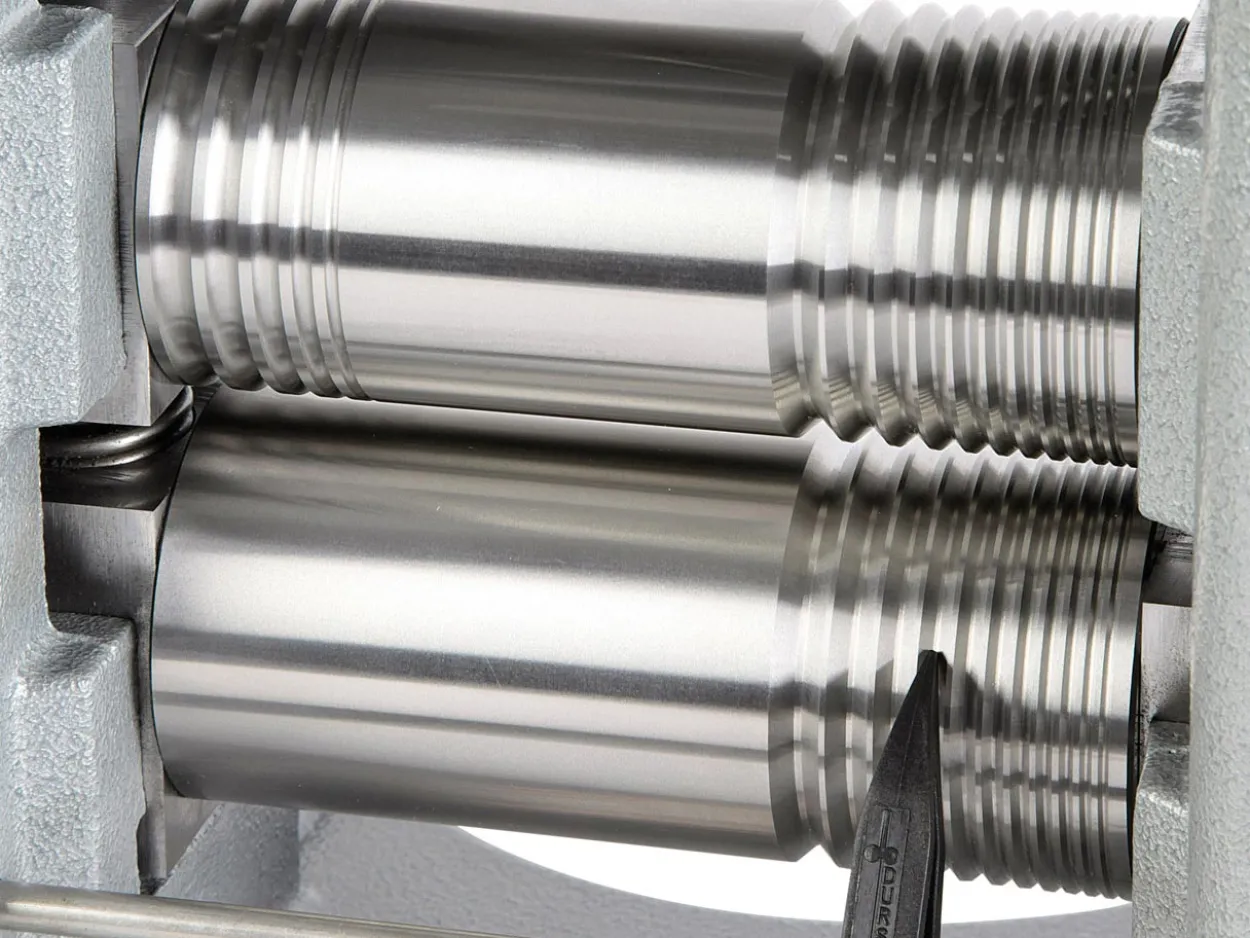

Precision hardened rolls with 80mm working width (maximum sheet thickness of 6mm, maximum sheet width 60mm).

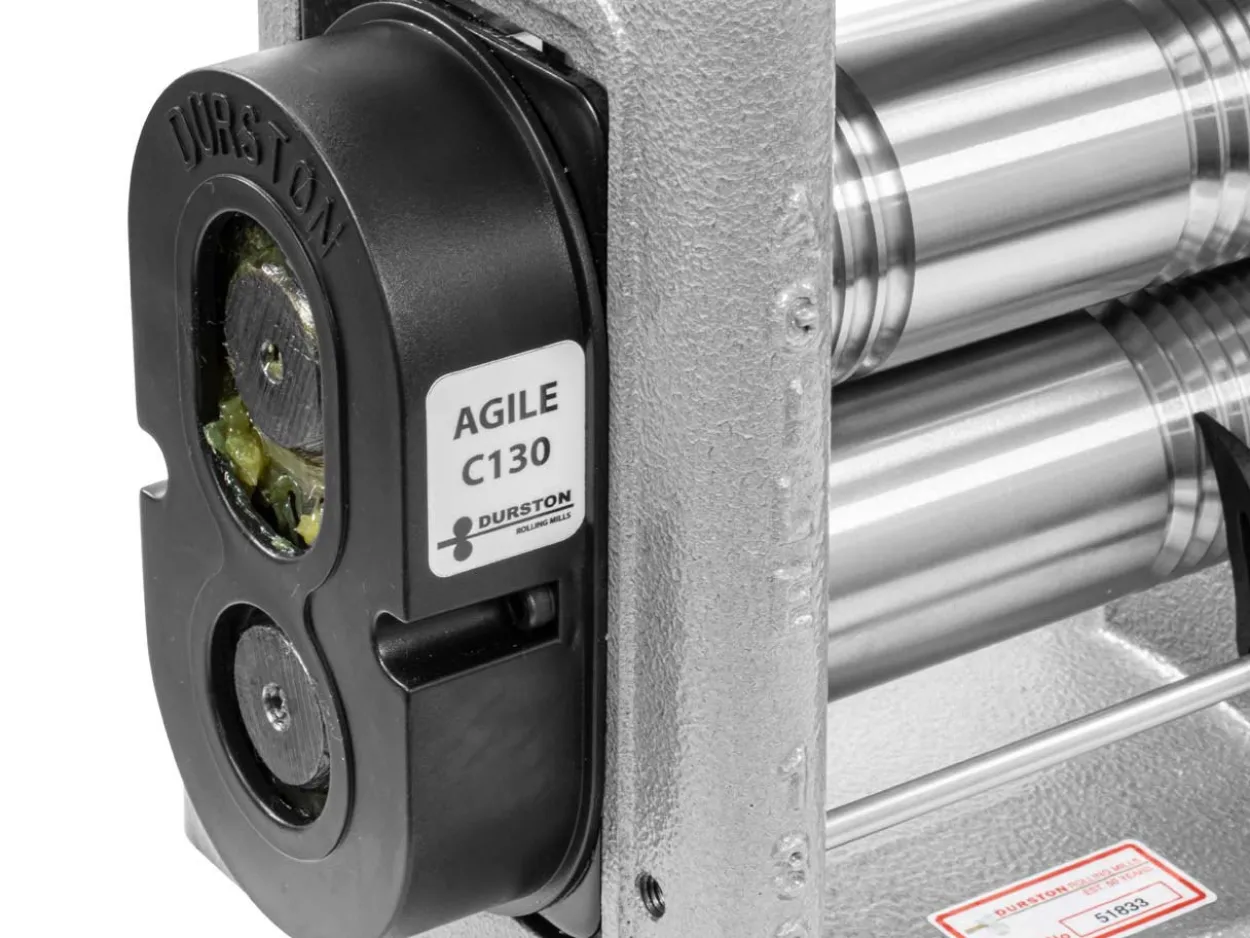

The rollers are hardened to 64 HRC for a lifetime of service. The bearing blocks are self-lubricating and maintenance free along with being fully supported, giving you the best possible finish on your rolled metal.

We recommend that your Durston rolling mill be securely fastened down for safety.

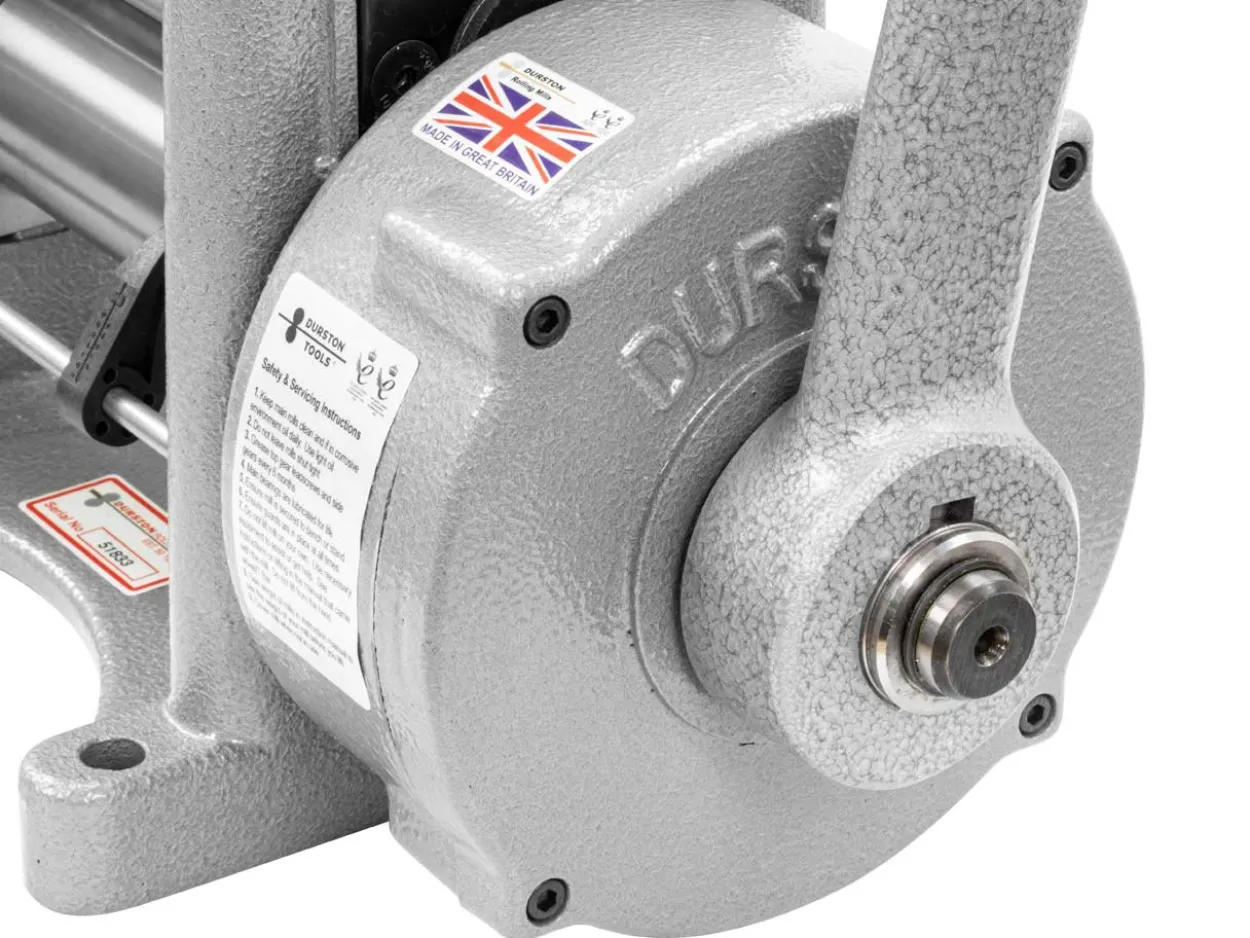

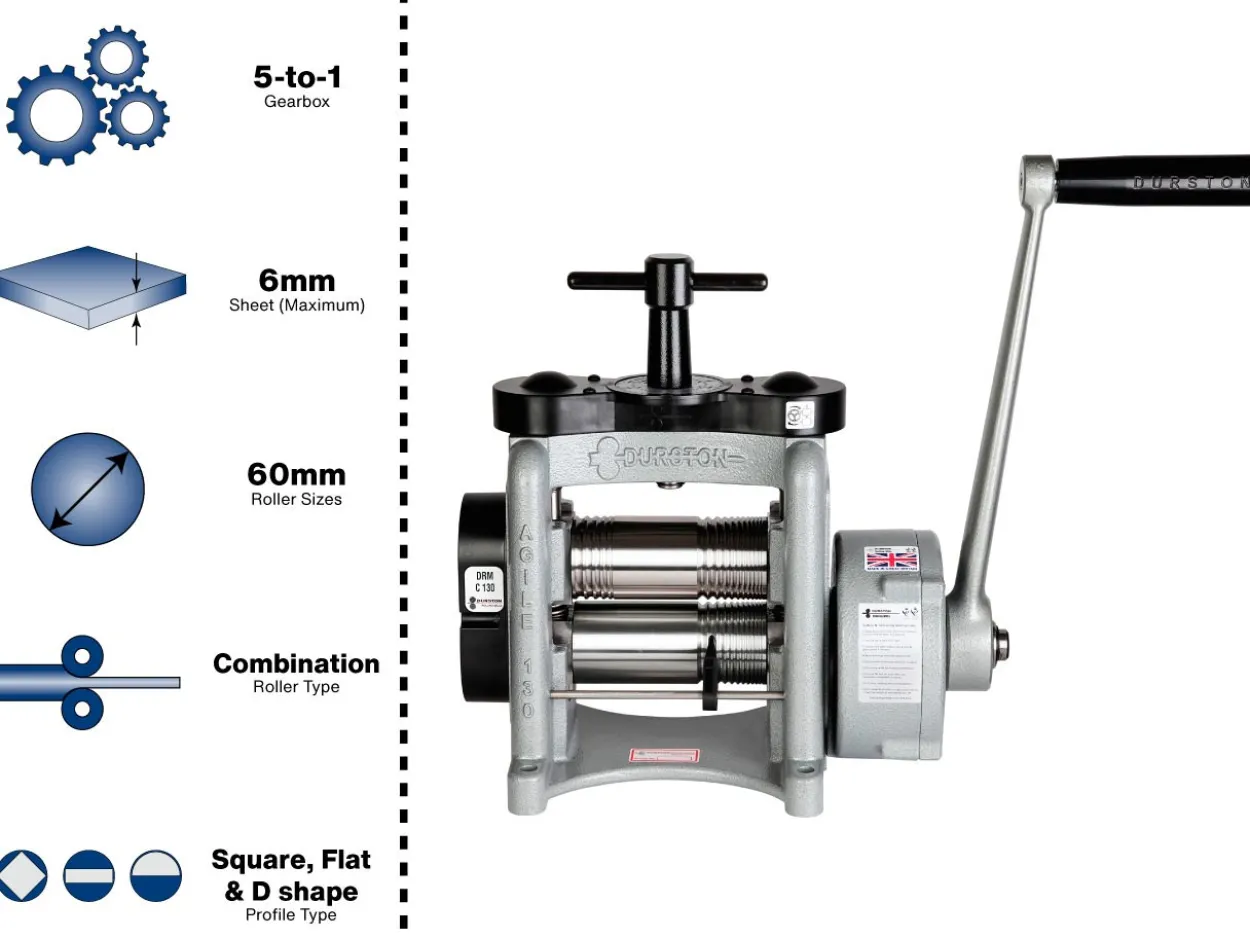

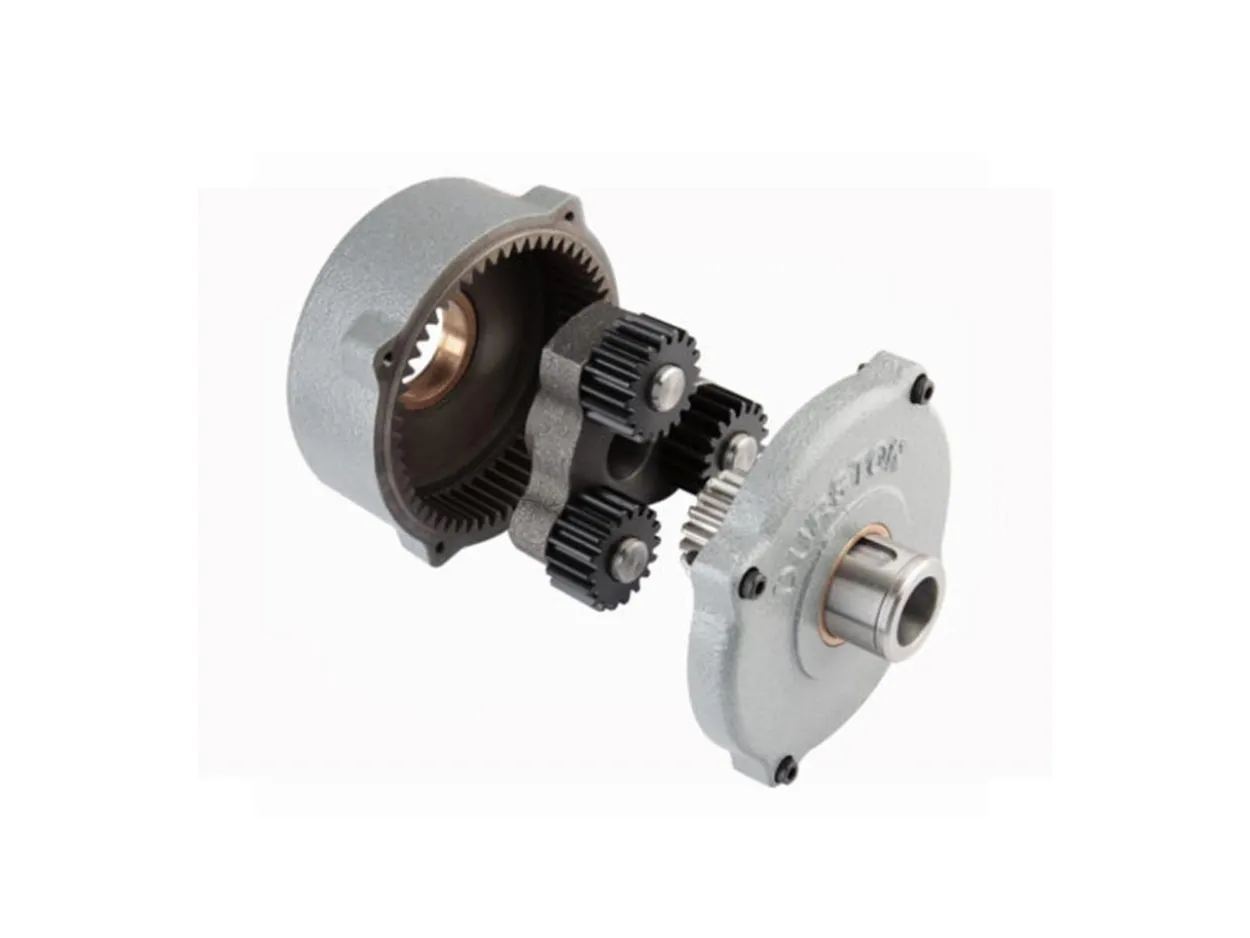

• Gearbox: 5-to-1
• Max Sheet Thickness:6 mm
• Minimum sheet thickness approx 0.08mm, depending on the material’s hardness.
• Max Wire capacity: 8 mm
• Roller Type: Combination

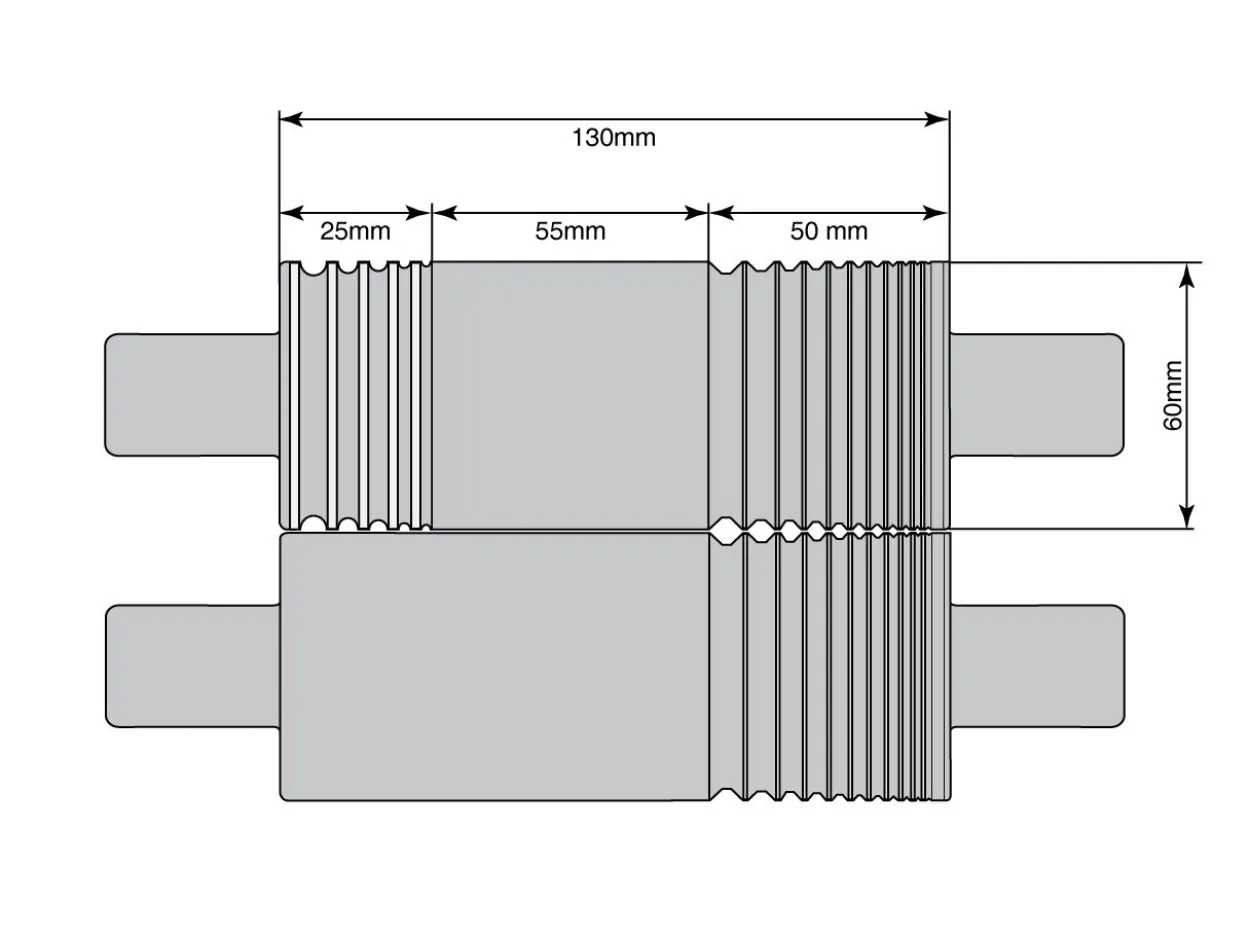

• Roller Diameter:60 mm
• Roller Length:130 mm
• Side Extensions: None
• Number of Grooves: 16
• Half round sizes: 2, 3, 4, 5, 6 mm

This product comes with a 3 year guarantee*, exclusive with Cooksongold.

Catalogue Page Number p567
